Iskander PCB layout, top view — open source STM32 board by M-K-O-Hybrid-open-source

About the Iskander PCB

Iskander is an open source STM32 PCB design by M-K-O-Hybrid-open-source, published on GitHub under the MIT license. It is a 2-layer board measuring 81.5 × 47 mm, with 62 components from 32 distinct parts.

Its main chip is the STM32F446RETx, from the STM32 family. Other key parts include the AMS1117-3.3, DRV8323H and LM2576HVS-12. By type, the board carries 26 capacitors, 17 resistors, 6 transistors, 5 connectors, 4 ICs and 2 diodes.

It belongs with the robotics & motion designs in this gallery.

From the project

Iskander is an open source driver for BLDC motors, the hardware support Six step commutation and FOC, still in the experimental phase but it will be ready as soon as possible

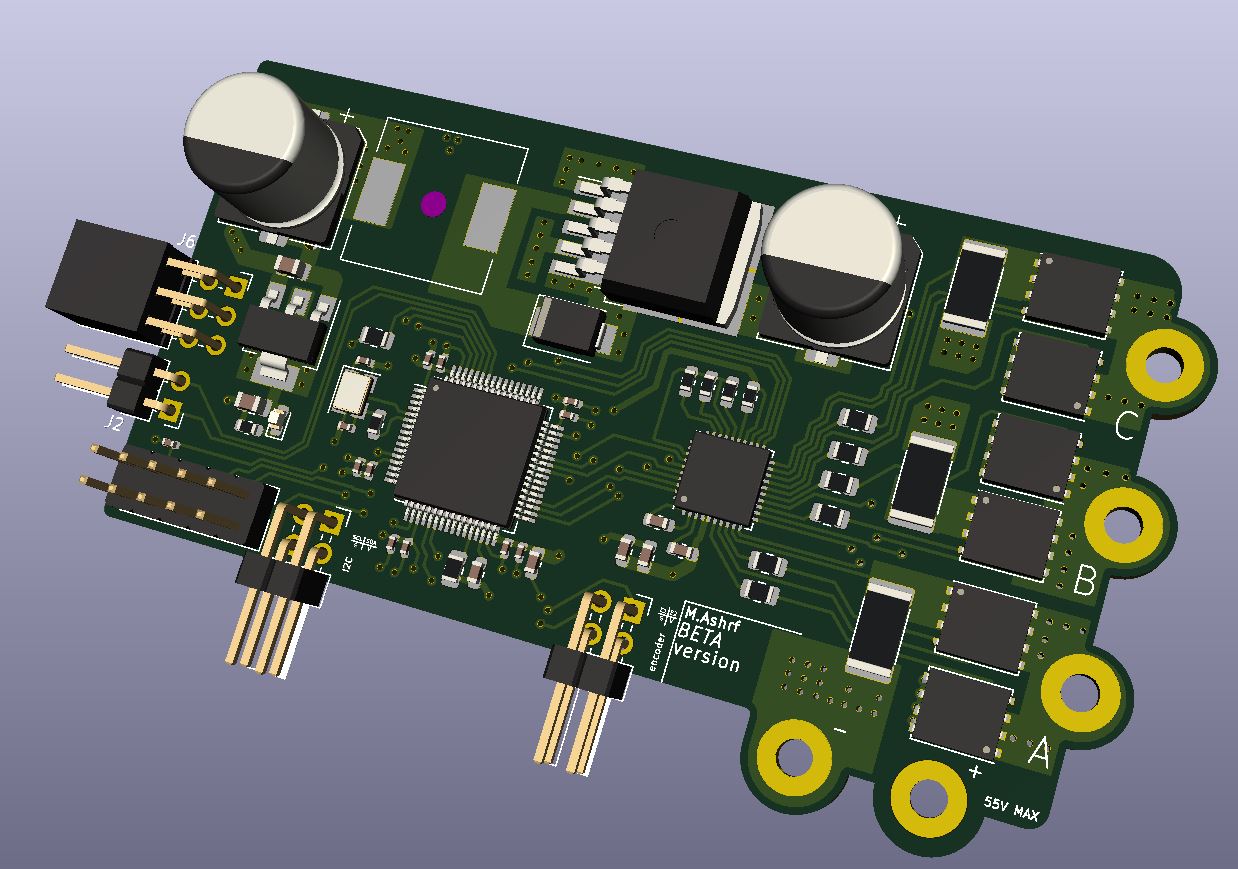

Iskander, from the project README
From the project README

Main components on the Iskander

AMS1117-3.3DRV8323HSTM32F446RETxLM2576HVS-12

Iskander bill of materials (BOM)

62 components, 32 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
DRV8323H
U2
1
STM32F446RETx
U3
1
LM2576HVS-12
U4
6
CSD19534Q5A
Q1, Q2, Q3, Q4, Q5, Q6
1
encoder
J1
1
Conn_01x02
J2
1
I2C
J3
1
Conn_02x05_Odd_Even
J5
1
Hall_EFF
J6
1
16MHz
HSE1
1
FR2M
D1
1
Red
D2
1
SWRB120
L1
2
10u
C1, C2
1
10u
C3
11
100nf
C4, C5, C6, C7, C8, C9, C10, C11 +3
1
100u 100v
C13
1
1000u 25v
C14
3
47u
C15, C17, C18
Show 12 more
QtyPartRefs
1
100n
C16
1
2.2u
C19
2
12p
C20, C21
3
1u 100v
C24, C25, C26
1
1k
R1
2
10k
R2, R3
1
10K
R4
1
220
R5
6
5
R6, R7, R8, R9, R10, R11
3
5m
R12, R13, R14
1
18k
R15
2
1M
R16, R17

Iskander design files

The KiCad project lives in the M-K-O-Hybrid-open-source/Iskander repository on GitHub; these links point at the commit this page was built from.

Iskander: common questions

What microcontroller does the Iskander use?

The Iskander is built around the STM32F446RETx, from the STM32 family.

How big is the Iskander PCB?

The Iskander measures 81.5 × 47 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Iskander?

62 components, from 32 distinct parts. The full bill of materials is listed on this page.

Where can I download the Iskander design files?

From the M-K-O-Hybrid-open-source/Iskander repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Iskander design in my own project?

Yes, under the terms of its MIT license, which M-K-O-Hybrid-open-source chose for the repository.

Can I test firmware for the Iskander without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
