TPS5430

M4a1x·TPS5430

TPS5430 PCB layout, top view — open source board by M4a1x

About the TPS5430 PCB

TPS5430 is an open source PCB design by M4a1x, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 55 × 20 mm, with 35 components from 28 distinct parts.

Other key parts include the TPS5430DDAR. By type, the board carries 11 resistors, 10 capacitors, 4 jumpers, 3 diodes, 2 transistors and 2 connectors.

It belongs with the power & battery and test & measurement designs in this gallery.

From the project

TPS5430 based DC-DC Buck Converter Module with parts from JLCPCB

This is a small DC-DC Buck converter board based on the TPS5430 from TI specifically intended to be ordered from JLCPCB with few "extended parts". This was a practice project for me, so please feel free to point out any issues.

Vin = 5.5V..36V Vinmin = 1.15 Vout (see Datasheet Section 8.2.1.2.8.1) Vinmax = 8.33 (Vout + 0.5) (see Datasheet Section 8.2.1.2.8.1) Vout = 1.8V/3.3V/5V/12V (choose via solder bridge) Reverse polarity protection with AO3401A p-MOSFET 3A (hold)/6A (trip) polyfuse input protection The board can be powered with a 2.1mm/5.5mm "standard" Arduino compatible barrel jack…

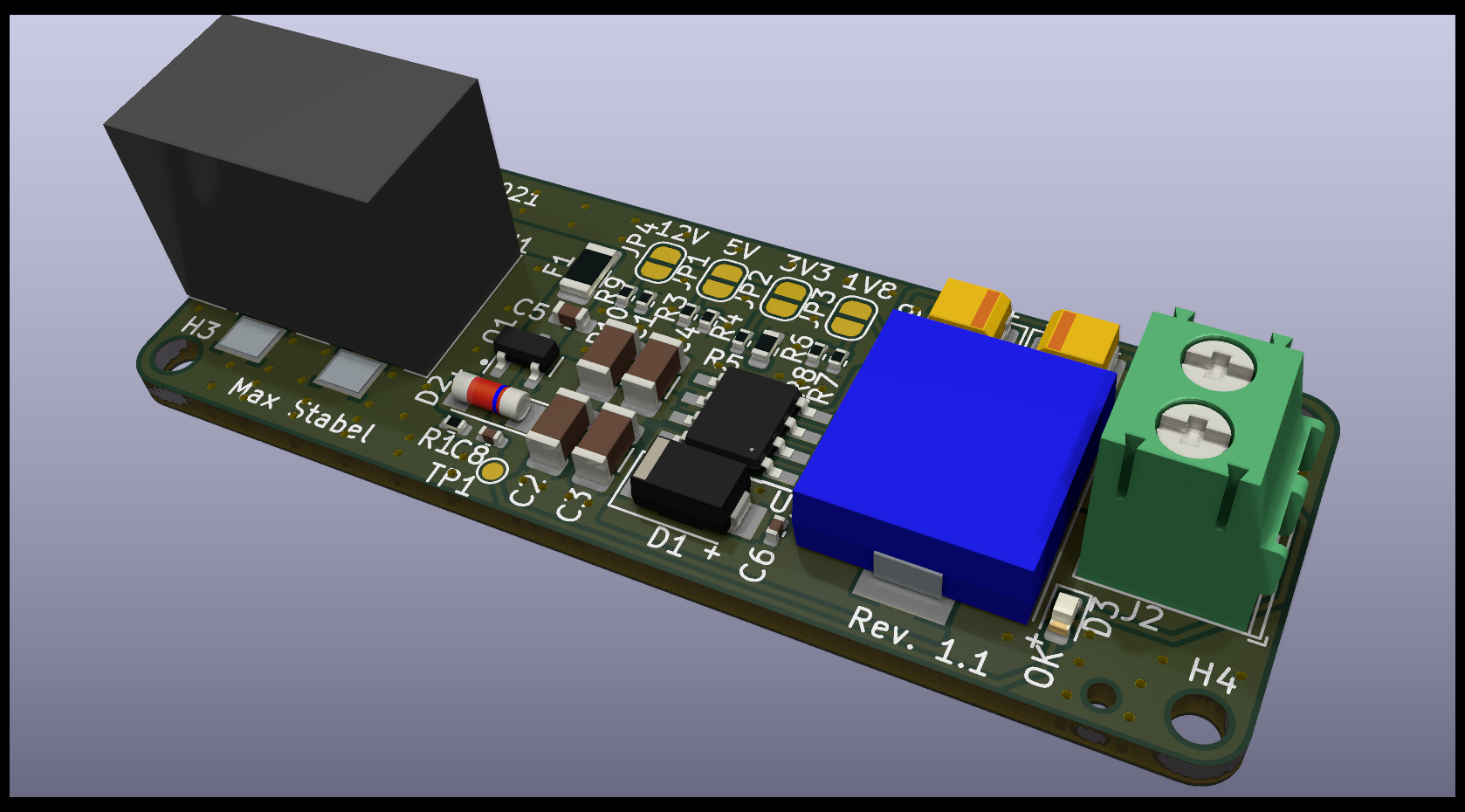

TPS5430, from the project README
From the project README

Main components on the TPS5430

TPS5430DDAR

TPS5430 bill of materials (BOM)

35 components, 28 distinct parts.

QtyPartRefs
1
TPS5430DDAR
TPS5430DDA
Texas Instruments
U1
1
AO3401A
Alpha & Omega Semicon
Q1
1
MMBT3904
Changjiang Electronics Tech (CJ)
Q2
1
DC-005-5A-2.0-SMT
Barrel_Jack
XKB Connectivity
J1
1
XY302V-3.5-2P
Screw_Terminal_01x02
Ningbo Xinlaiya Elec.
J2
1
1206L300SLTHYR
Polyfuse
Littelfuse
F1
4
SolderJumper
JP1, JP2, JP3, JP4
1
SS34
MDD(Microdiode Electronics)
D1
1
ZMM5V6
ST(Semtech)
D2
1
19-217/GHC-YR1S2/3T
LED
Everlight Elec
D3
1
MWSA1004S-470MT
47u
Sunlord
L1
4
CL31A106KBHNNNE
10u/50V
Samsung Electro-Mechanics
C1, C2, C3, C4
1
CC0603KRX7R9BB104
100n/50V
YAGEO
C5
1
CL05B103KB5NNNC
10n
Samsung Electro-Mechanics
C6
1
CL05A106MQ5NUNC
10u/6.3V
Samsung Electro-Mechanics
C7
1
0402B472K500NT
4n7/50V
FH(Guangdong Fenghua Advanced Tech)
C8
2
TAJB107K006RNJ
100u/6.3V
AVX
C9, C10
1
0402WGF1003TCE
100k
UNI-ROYAL(Uniroyal Elec)
R1
1
0402WGF1002TCE
10k
UNI-ROYAL(Uniroyal Elec)
R2
1
0402WGF3301TCE
3k3
UNI-ROYAL(Uniroyal Elec)
R3
Show 8 more
QtyPartRefs
1
0402WGF1503TCE
150k
UNI-ROYAL(Uniroyal Elec)
R4
1
0402WGF5601TCE
5k6
UNI-ROYAL(Uniroyal Elec)
R5
1
0603WAF2700T5E
270
UNI-ROYAL(Uniroyal Elec)
R6
1
0402WGF2202TCE
22k
UNI-ROYAL(Uniroyal Elec)
R7
1
0402WGF4703TCE
470k
UNI-ROYAL(Uniroyal Elec)
R8
1
0402WGF1001TCE
1k
UNI-ROYAL(Uniroyal Elec)
R9
1
0402WGF1200TCE
120
UNI-ROYAL(Uniroyal Elec)
R10
1
0603WAF1002T5E
10k
UNI-ROYAL(Uniroyal Elec)
R11

TPS5430 design files

The KiCad project lives in the M4a1x/TPS5430 repository on GitHub; these links point at the commit this page was built from.

TPS5430: common questions

How big is the TPS5430 PCB?

The TPS5430 measures 55 × 20 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TPS5430?

35 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the TPS5430 design files?

From the M4a1x/TPS5430 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the TPS5430 design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which M4a1x chose for the repository.
