RGB LED TOY

madworm·RGB_LED_TOY

RGB LED TOY PCB layout, top view — open source AVR/Arduino board by madworm

About the RGB LED TOY PCB

RGB LED TOY is an open source AVR/Arduino PCB design by madworm, published on GitHub. It is a board measuring 43.4 × 43.4 mm, with 33 components from 12 distinct parts.

Its main chip is the ATMEGA328-A, from the AVR/Arduino family. By type, the board carries 11 capacitors, 9 LEDs, 5 connectors, 1 IC, 1 transistor and 1 jumper.

From the project

LAYOUT FILES: Led ring board with 8 RGB LEDs driven by an ATmega168-20AU TQFP-32 7x7 micro controller. KICAD and Gerber files.

LAYOUT FILES: LED ring board with 8 WS2812B RGB LEDs driven by an ATmega168-20AU TQFP-32 7x7 micro controller. KICAD and Gerber files.

You will find code for this project in this repository.

Before having PC-boards made, please make sure you know about your manufacturer's peculiarities! Especially drill-sizes and their tolerances may vary too much and give you trouble.

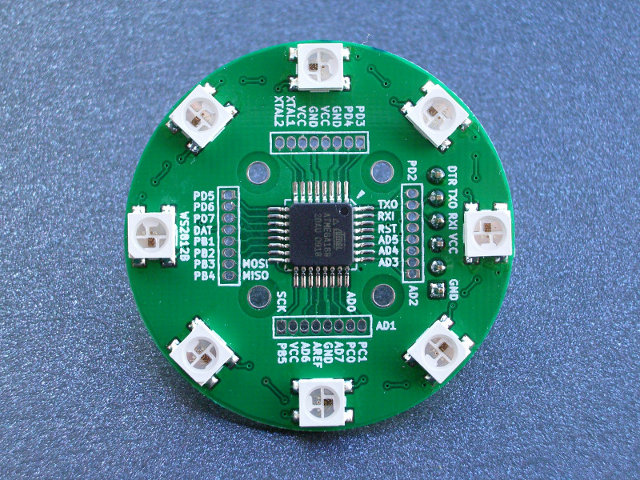

RGB LED TOY, from the project README
From the project README

Main components on the RGB LED TOY

ATMEGA328-A

RGB LED TOY bill of materials (BOM)

33 components, 12 distinct parts.

QtyPartRefs
1
ATMEGA328-A
IC1
1
CSTCE16M0V53-R0
Q1
4
CONN_8
P1, P2, P3, P4
1
FTDI
P5
1
ISP
JP1
4
CONN_1
MH1, MH2, MH3, MH4
1
LED_smile_silkscreen_4mm
G2
8
MADW__WS2812B
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8
2
100nF
C1, C3
1
10µF
C2
8
4.7µF
C4, C5, C6, C7, C8, C9, C10, C11
1
10k
R1

RGB LED TOY design files

The KiCad project lives in the madworm/RGB_LED_TOY repository on GitHub; these links point at the commit this page was built from.

RGB LED TOY: common questions

What microcontroller does the RGB LED TOY use?

The RGB LED TOY is built around the ATMEGA328-A, from the AVR/Arduino family.

How big is the RGB LED TOY PCB?

The RGB LED TOY measures 43.4 × 43.4 mm and is 1.6002 mm thick.

How many components are on the RGB LED TOY?

33 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the RGB LED TOY design files?

From the madworm/RGB_LED_TOY repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the RGB LED TOY design in my own project?

The repository has no license, so all rights stay with madworm. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the RGB LED TOY without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
