Raspi ic tester

madworx·raspi-ic-tester

Raspi ic tester PCB layout, top view — open source Raspberry Pi board by madworx

About the Raspi ic tester PCB

Raspi ic tester is an open source Raspberry Pi PCB design by madworx, published on GitHub. It is a 2-layer board measuring 91.4 × 68.6 mm, with 16 components from 11 distinct parts.

Its main chip is the Raspberry_Pi_2_3, from the Raspberry Pi family. Other key parts include the MCP23017-E_SP. By type, the board carries 4 diodes, 4 resistors, 3 ICs, 1 connector and 1 switch.

From the project

Raspberry PI-based IC tester

Minimalistic tester for integrated circuits, using Raspberry PI.

First copy has been build, tested and is working.

Software draft has been written and is working, files in software/ subdirectory. Run the raspi-ic-tester.py script. IC definitions are in .md files.

Case was printed, but tolerances were too low.

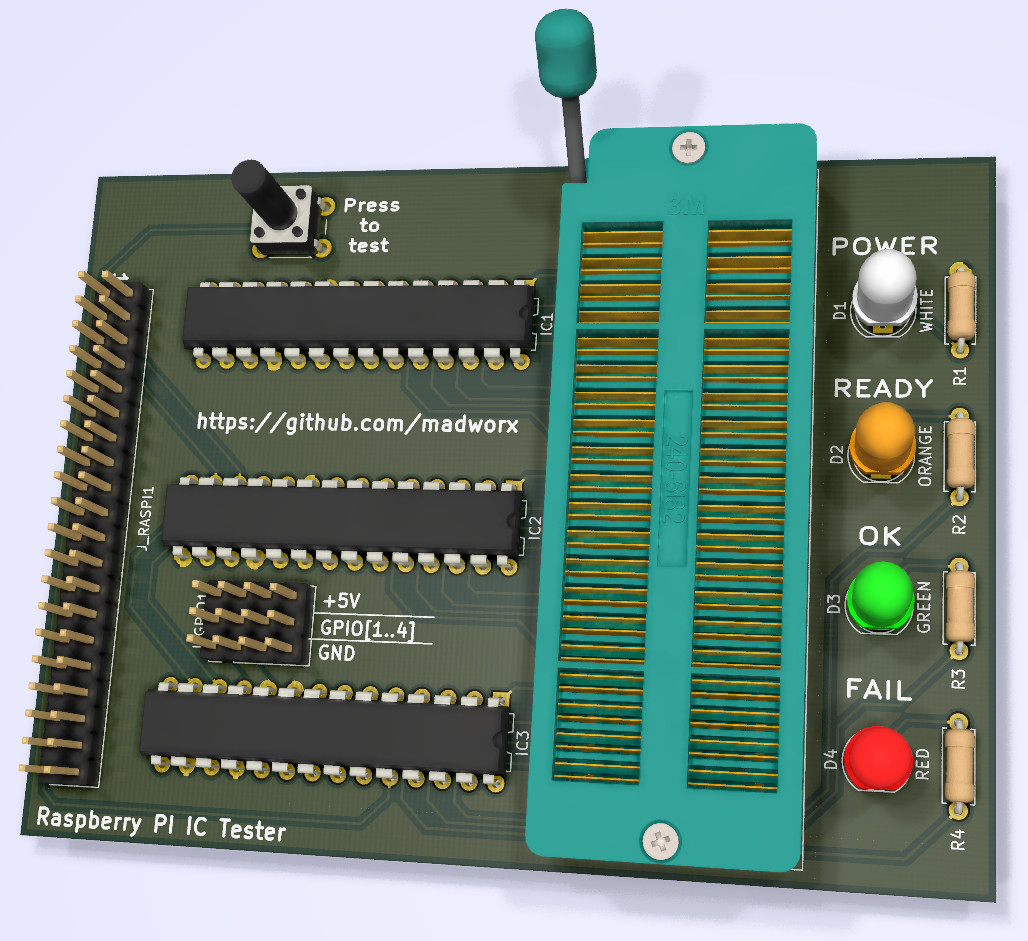

Raspi ic tester, from the project README
From the project README

Main components on the Raspi ic tester

MCP23017-E_SP

Raspi ic tester bill of materials (BOM)

16 components, 11 distinct parts.

QtyPartRefs
3
MCP23017-E_SP
IC1, IC2, IC3
1
Conn_01x04
J1
1
Conn_02x04_Odd_Even
J_GPIO1
1
Raspberry_Pi_2_3
J_RASPI1
1
Conn_02x20_Counter_Clockwise
J_ZIF1
1
SW_SPST
SW1
1
WHITE
D1
1
ORANGE
D2
1
GREEN
D3
1
RED
D4
4
330
R1, R2, R3, R4

Raspi ic tester design files

The KiCad project lives in the madworx/raspi-ic-tester repository on GitHub; these links point at the commit this page was built from.

Raspi ic tester: common questions

What microcontroller does the Raspi ic tester use?

The Raspi ic tester is built around the Raspberry_Pi_2_3, from the Raspberry Pi family.

How big is the Raspi ic tester PCB?

The Raspi ic tester measures 91.4 × 68.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Raspi ic tester?

16 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the Raspi ic tester design files?

From the madworx/raspi-ic-tester repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Raspi ic tester design in my own project?

The repository has no license, so all rights stay with madworx. Use it as a reference, and ask the author before reusing the design.
