RF ProtoBoard Extended PCB layout, top view — open source board by maelh

About the RF ProtoBoard Extended PCB

RF ProtoBoard Extended is an open source PCB design by maelh, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 99.6 × 87.6 mm, with 1 components from 1 distinct parts.

It belongs with the rf & radio designs in this gallery.

From the project

Radio frequency prototype boards (based on MegawattKS' design)

When designing radio frequency (RF) circuits, we cannot rely on traditional perfboards or breadboards. Suitable boards need a ground plane (essential for reducing noise in RF circuits), and should have minimal parasitic capacitances and inductances. Breadboards are especially unsuited, due to their RF circuit altering parasitics (mainly created by the horizontal signal rails, and the vertical power rails).

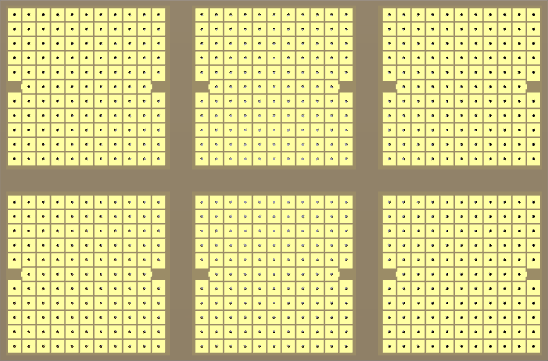

RF ProtoBoard Extended, from the project README
From the project README

RF ProtoBoard Extended bill of materials (BOM)

1 components, 1 distinct parts.

QtyPartRefs
1
Screw_Terminal_01x02
J1

RF ProtoBoard Extended design files

The KiCad project lives in the maelh/radio-frequency-prototype-boards repository on GitHub; these links point at the commit this page was built from.

RF ProtoBoard Extended: common questions

How big is the RF ProtoBoard Extended PCB?

The RF ProtoBoard Extended measures 99.6 × 87.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RF ProtoBoard Extended?

1 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the RF ProtoBoard Extended design files?

From the maelh/radio-frequency-prototype-boards repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the RF ProtoBoard Extended design in my own project?

Yes, under the terms of its BSD-3-Clause license, which maelh chose for the repository.
