About the 27c160-tl866-adapter PCB
27c160-tl866-adapter is an open source PCB design by mafe72, published on GitHub under the GPL-3.0 license. It is a board measuring 82.4 × 43.1 mm, with 10 components from 6 distinct parts.
Other key parts include the 61302011121. By type, the board carries 5 resistors, 2 switches, 1 IC and 1 transistor.
It belongs with the usb & debug tools designs in this gallery.
From the project

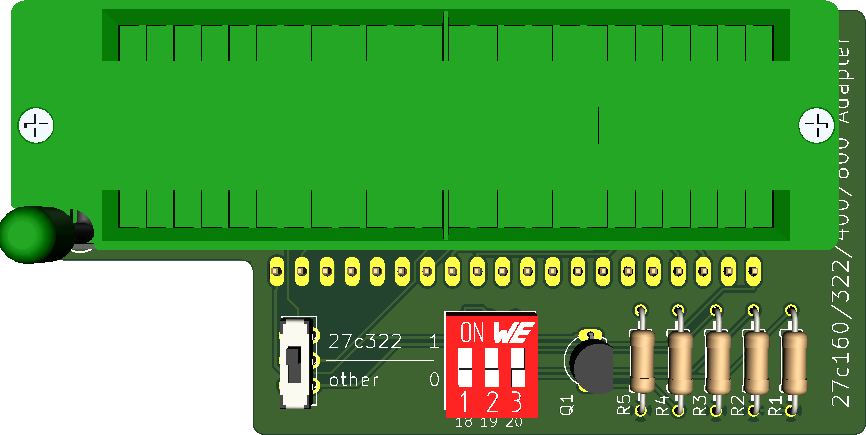

Adapter to program EPROMs with more than 40 Pins on the TL866 universal programmer.
This adapter converts the pin-outs of the parts listed below (which are similar to contemporary DIP-packaged mask ROMs) to 27C4096 pin-out as supported by the readily-available and cheap TL866 series of USB programmers.
The supported EPROMs parts are: - 27C400: 40-pin, 4Mbit (256k x 16-bit, 512k x 8-bit) - 27C800: 42-pin, 8Mbit (512k x 16-bit, 1M x 8-bit) - 27C160: 42-pin, 16Mbit (1M x 16-bit, 2M x 8-bit) - 27C322: 42-pin, 32Mbit (2M x 16-bit, no 8-bit access mode)

Main components on the 27c160-tl866-adapter
27c160-tl866-adapter bill of materials (BOM)
10 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 61302011121 27C4002 | 27C4002 | U1 |
| 1 | BC327 | TO92-EBC | Q1 |
| 1 | JS202011CQN MS22D16 | MS22D16 | SW1 |
| 1 | BD03 DIP | EDG-03 | SW2 |
| 1 | 248-1282-00-0602J 3M_248-3345 | 3M_248-3345 | ZX1 |
| 5 | CFR-25JB-52-10K 10k | 0207%2f10 | R1, R2, R3, R4, R5 |
27c160-tl866-adapter design files
The KiCad project lives in the mafe72/27c160-tl866-adapter repository on GitHub; these links point at the commit this page was built from.
27c160-tl866-adapter: common questions
How big is the 27c160-tl866-adapter PCB?
The 27c160-tl866-adapter measures 82.4 × 43.1 mm and is 1.6 mm thick.
How many components are on the 27c160-tl866-adapter?
10 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 27c160-tl866-adapter design files?
From the mafe72/27c160-tl866-adapter repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the 27c160-tl866-adapter design in my own project?
Yes, under the terms of its GPL-3.0 license, which mafe72 chose for the repository.
