Hx8k breakout extension

maikmerten·hx8k-breakout-extension

Hx8k breakout extension layout, top view — open source board by maikmerten

Simulate this board

About the Hx8k breakout extension

Hx8k breakout extension is an open source PCB design by maikmerten, published on GitHub under the MIT license. It is a 2-layer board measuring 44.2 × 65.3 mm, with 23 components from 10 distinct parts.

Other key parts include the AS7C34096A-TSOP. By type, the board carries 12 resistors, 5 connectors, 2 switches, 2 diodes, 1 IC and 1 capacitor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

A PCB with SRAM, buttons, LEDs and some pmod-compatible connectors for the Lattice HX8K Breakout Board

Please notice: This PCB only carries SRAM with a data bus width of 8 bits. This is pretty narrow and can be performance-limiting. Also, let's be honest, this PCB layout is somewhat wacky. Perhaps you might consider building a more recent design with 16-bit SRAM instead.

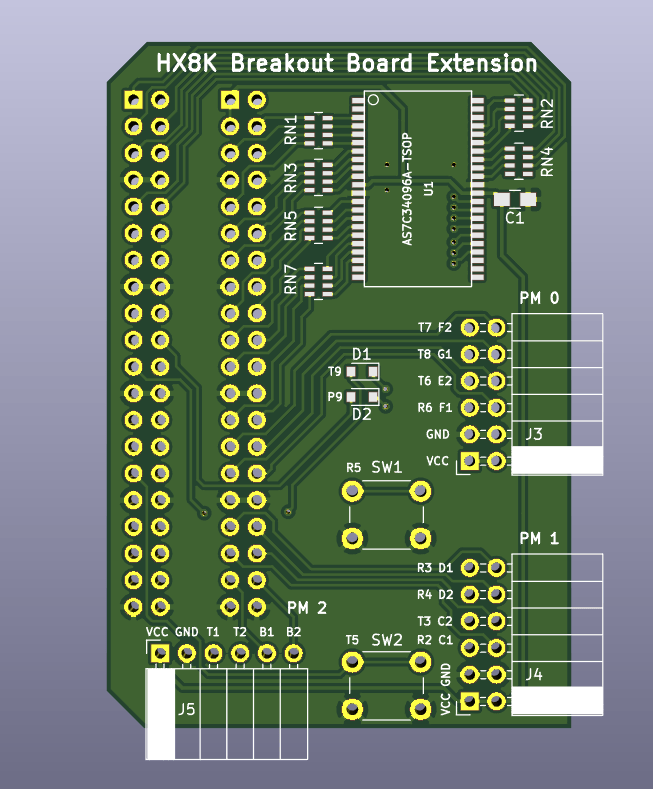

Hx8k breakout extension, from the project README — From the project README

Main components on the Hx8k breakout extension

AS7C34096A-TSOP

Hx8k breakout extension bill of materials (BOM)

23 components, 10 distinct parts.

Qty	Part	Footprint	Refs
1	AS7C34096A-TSOP	tsop2-44	U1
2	Conn_02x20_Odd_Even	Socket_Strip_Straight_2x20_Pitch2.54mm	J1, J2
2	Conn_02x06_Odd_Even	Socket_Strip_Angled_2x06_Pitch2.54mm	J3, J4
1	Conn_01x06	Socket_Strip_Angled_1x06_Pitch2.54mm	J5
2	SW_Push	SW_PUSH_6mm	SW1, SW2
2	LED	D_0805	D1, D2
1	100nF	C_0805_HandSoldering	C1
2	300	R_0805_HandSoldering	R1, R2
2	10k	R_0805_HandSoldering	R3, R4
8	R_Pack04	R_Array_Concave_4x0603	RN1, RN2, RN3, RN4, RN5, RN6, RN7, RN8

Hx8k breakout extension design files

The KiCad project lives in the maikmerten/hx8k-breakout-extension repository on GitHub; these links point at the commit this page was built from.

Layouthx8k-demoboard-wing.kicad_pcb

Hx8k breakout extension: common questions

How big is the Hx8k breakout extension?

The Hx8k breakout extension measures 44.2 × 65.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hx8k breakout extension?

23 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Hx8k breakout extension design files?

From the maikmerten/hx8k-breakout-extension repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Hx8k breakout extension design in my own project?

Yes, under the terms of its MIT license, which maikmerten chose for the repository.
