ATTiny88 Breakout Board

mail4johnv·ATTiny88_Breakout_Board·Hardware/Breakout_for_attiny88_V1.kicad_pcb

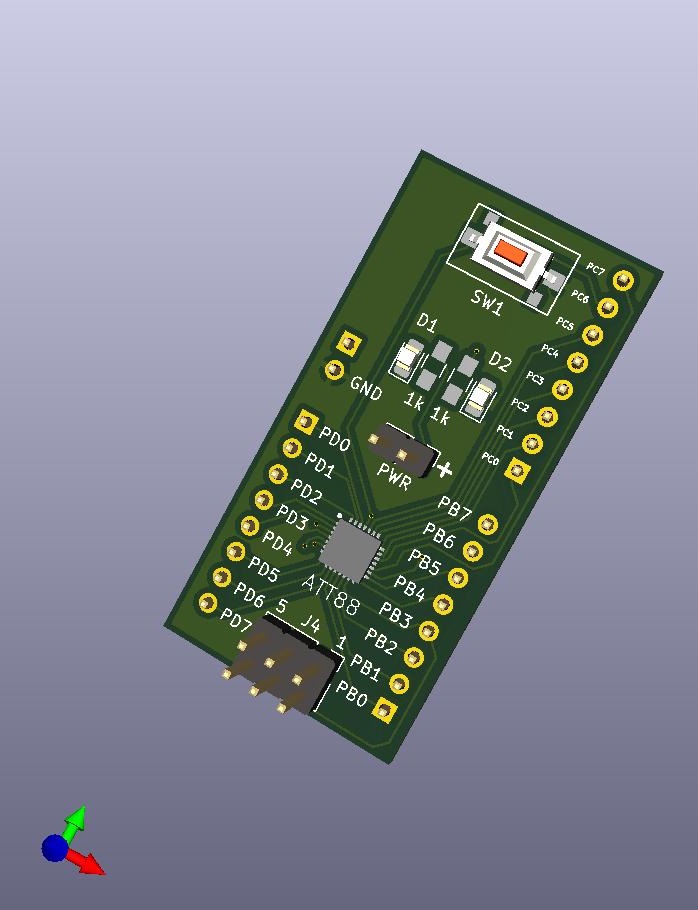

ATTiny88 Breakout Board layout, top view — open source AVR/Arduino board by mail4johnv

About the ATTiny88 Breakout Board

ATTiny88 Breakout Board is an open source AVR/Arduino PCB design by mail4johnv, published on GitHub under the MPL-2.0 license. It is a 2-layer board measuring 22.9 × 48.5 mm, with 12 components from 9 distinct parts.

Its main chip is the ATtiny88, from the AVR/Arduino family. By type, the board carries 4 connectors, 3 resistors, 2 diodes, 1 IC, 1 switch and 1 capacitor.

It belongs with the dev boards & breakouts designs in this gallery, and the repository also holds 1 earlier revision of it.

From the project

Kicad files for attiny88_Breakout_board.

A compact breakout board for the Microchip/Atmel ATtiny88 microcontroller. This repository contains the KiCad source, PCB/gerber exports, BOM, assembly notes, and example firmware to help you build and use the board.

Status - Board design: Prototype (update to "Verified" or "Production" as appropriate) - KiCad project: Hardware/ (KiCad project files) - Example firmware: /firmware/examples

ATTiny88 Breakout Board, from the project README
From the project README

Main components on the ATTiny88 Breakout Board

ATtiny88

ATTiny88 Breakout Board bill of materials (BOM)

12 components, 9 distinct parts.

QtyPartRefs
1
ATtiny88
U1
2
HEADER
J1, J2
1
AVR-ISP-6
J3
1
PWR
J4
1
SW
SW1
2
LED
D1, D2
1
0.1uF
C1
1
10k
R1
2
1k
R2, R3

ATTiny88 Breakout Board design files

The KiCad project lives in the mail4johnv/ATTiny88_Breakout_Board repository on GitHub; these links point at the commit this page was built from.

ATTiny88 Breakout Board: common questions

What microcontroller does the ATTiny88 Breakout Board use?

The ATTiny88 Breakout Board is built around the ATtiny88, from the AVR/Arduino family.

How big is the ATTiny88 Breakout Board?

The ATTiny88 Breakout Board measures 22.9 × 48.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ATTiny88 Breakout Board?

12 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the ATTiny88 Breakout Board design files?

From the mail4johnv/ATTiny88_Breakout_Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ATTiny88 Breakout Board design in my own project?

Yes, under the terms of its MPL-2.0 license, which mail4johnv chose for the repository.

Can I test firmware for the ATTiny88 Breakout Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
