Easyduino Atmega Nano PCB layout, top view — open source AVR/Arduino board by Hanqaqa
Simulate this board

About the Easyduino Atmega Nano PCB

Easyduino Atmega Nano is an open source AVR/Arduino PCB design by Hanqaqa, published on GitHub under the CERN-OHL-P-2.0 license. It is a 4-layer board measuring 43.4 × 18 mm, with 30 components from 16 distinct parts.

Its main chip is the ATMEGA328P-A, from the AVR/Arduino family. Other key parts include the XC6206P502MR and CP2102N-AXX-XQFN28. By type, the board carries 12 capacitors, 7 resistors, 3 ICs, 3 diodes, 2 connectors and 1 crystal.

It belongs with the dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

Easily dive into different PCB KiCad designs of the most popular microcontroller devboards

- Input Voltage: 5.5V-9V(External Source Vin) 5V (USB). Both can be used at the same time. Preferable to only power from one source - Output Current: 250 mA (External Source) 500mA (USB) - 3.3V Output Current: None (External Source) 100 mA (USB) - No Polarity Protection (External Source) - Overcurrent Protection: None (External Source) 1A (USB) - 5V Autoselector: can take both USB and external source. A diode will avoid short circuit. - External input Polarity Protection: None!!

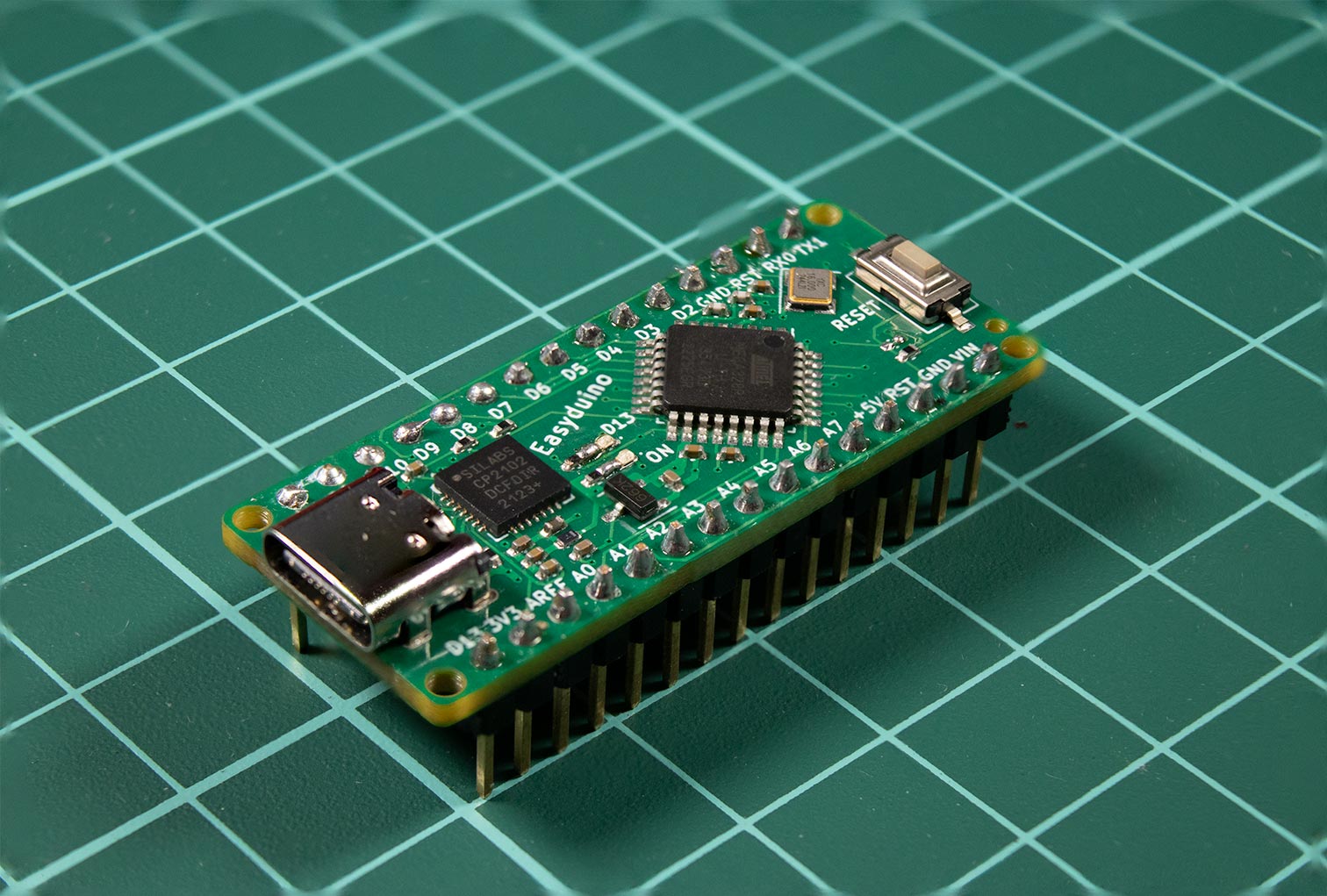

Easyduino Atmega Nano, from the project README
From the project README

Main components on the Easyduino Atmega Nano

ATMEGA328P-AXC6206P502MRCP2102N-AXX-XQFN28

Easyduino Atmega Nano bill of materials (BOM)

30 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA328P-A
ATmega328P-A
U1
1
XC6206P502MR
U2
1
CP2102N-AXX-XQFN28
CP2102N-Axx-xQFN28
U3
1
C13738
16 MHz
Y1
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J1
1
-
ICSP
J2
1
C914087
Polyfuse
F1
1
SW_Push
SW1
2
LED
D1, D3
1
C2837790
D_Schottky
D2
3
1u
C1, C11, C12
7
100N
100n
C2, C3, C4, C5, C6, C7, C8
2
22P
22p
C9, C10
4
5.1K
5.1k
R1, R2, R3, R4
1
330
R5
2
2k
R6, R7

Easyduino Atmega Nano design files

The KiCad project lives in the Hanqaqa/Easyduino repository on GitHub; these links point at the commit this page was built from.

Easyduino Atmega Nano: common questions

What microcontroller does the Easyduino Atmega Nano use?

The Easyduino Atmega Nano is built around the ATMEGA328P-A, from the AVR/Arduino family.

How big is the Easyduino Atmega Nano PCB?

The Easyduino Atmega Nano measures 43.4 × 18 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Easyduino Atmega Nano?

30 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Easyduino Atmega Nano design files?

From the Hanqaqa/Easyduino repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Easyduino Atmega Nano design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which Hanqaqa chose for the repository.

Can I test firmware for the Easyduino Atmega Nano without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
