Morse code card
maker-lukas·morse-code-card·PCB/morse_code_keycard.kicad_pcb

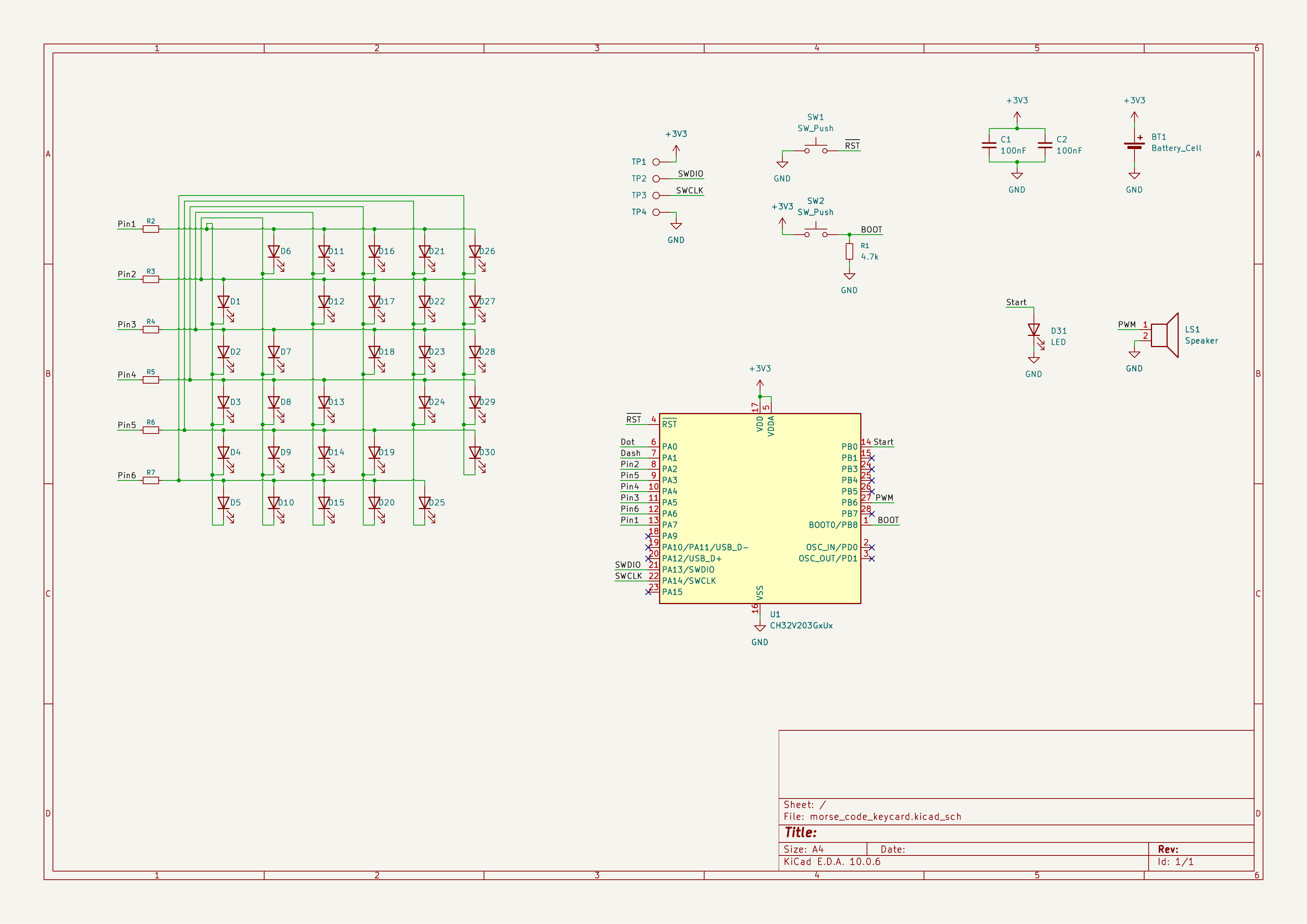

About the Morse code card PCB
Morse code card is an open source RISC-V PCB design by maker-lukas, published on GitHub. It is a 2-layer board measuring 85.6 × 54 mm, with 44 components from 8 distinct parts.
Its main chip is the CH32V203GXUX, from the RISC-V family. By type, the board carries 31 diodes, 7 resistors, 2 switches, 2 capacitors, 1 IC and 1 battery holder.
From the project
- CH32v203 - Dot/Dash pads with Touch Key peripheral - Coincell powered - Morse code tree - Underglow LEDs with shine through PCB

Main components on the Morse code card
Morse code card bill of materials (BOM)
44 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CH32V203GXUX CH32V203GxUx | WQFN-28-1EP_4x4mm_P0.4mm_EP2.7x2.7mm | U1 |
| 1 | Battery_Cell | BatteryHolder_Keystone_3034_1x20mm | BT1 |
| 2 | SW_Push | SW_Push_1P1T_NO_CK_KMR2 | SW1, SW2 |
| 30 | LED | LED_PLCC-2_3.2x2.8mm_SunLED_XZVG45WT-9 | D1, D2, D3, D4, D5, D6, D7, D8 +22 |
| 1 | LED | LED_PLCC-2_3.2x2.8mm_SunLED_XZVG45WT-9_Start | D31 |
| 2 | 100NF 100nF | C_0603_1608Metric | C1, C2 |
| 1 | 4.7K 4.7k | R_0603_1608Metric | R1 |
| 6 | R_Small | R_0603_1608Metric | R2, R3, R4, R5, R6, R7 |
Morse code card design files
The KiCad project lives in the maker-lukas/morse-code-card repository on GitHub; these links point at the commit this page was built from.
Morse code card: common questions
What microcontroller does the Morse code card use?
The Morse code card is built around the CH32V203GXUX, from the RISC-V family.
How big is the Morse code card PCB?
The Morse code card measures 85.6 × 54 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Morse code card?
44 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Morse code card design files?
From the maker-lukas/morse-code-card repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Morse code card design in my own project?
The repository has no license, so all rights stay with maker-lukas. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Morse code card without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RISC-V firmware against it before you order a PCB.
