HallowBadges-Bat PCB layout, top view — open source AVR/Arduino board by makeristic

About the HallowBadges-Bat PCB

HallowBadges-Bat is an open source AVR/Arduino PCB design by makeristic, published on GitHub. It is a 2-layer board measuring 98.5 × 89.1 mm, with 10 components from 6 distinct parts.

Its main chip is the ATTINY13A-SSU, from the AVR/Arduino family. By type, the board carries 4 resistors, 2 diodes, 1 IC, 1 transistor, 1 connector and 1 battery holder.

From the project

Here is a fun and simple Halloween project, it is a flashing LED badge or decoration with an ATtiny13a microcontroller, powered by a CR2032 battery.

Here is a fun and simple Halloween project, it is a flashing LED badge or decoration with an ATtiny13a microcontroller, powered by a CR2032 battery.

A single CR2032 battery can power this device for about 6 days / 144 hours. The board also features an optional surface-mount 2.54mm connector which is Simple Add-ons (SAO) compatible so you can power the badges externally. * You can program the device using a SOIC-8 Test Clip or similar, I attached it to an Arduino-as-ISP setup.

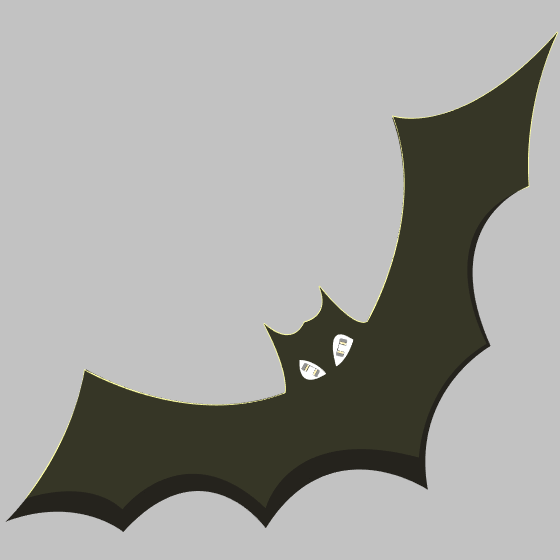

HallowBadges-Bat, from the project README
From the project README

Main components on the HallowBadges-Bat

ATTINY13A-SSU

HallowBadges-Bat bill of materials (BOM)

10 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATTINY13A-SSU
ATtiny13A-SSU
U1
1
BSS138
Q1
1
CONN_02X03_SIMPLE_ADD_ON
Conn_02x03_Simple_Add_On
J1
1
Battery_Cell
BT1
2
LED_Small
D1, D2
4
R_Small
R1, R2, R3, R4

HallowBadges-Bat design files

The KiCad project lives in the makeristic/HallowBadges-Bat repository on GitHub; these links point at the commit this page was built from.

HallowBadges-Bat: common questions

What microcontroller does the HallowBadges-Bat use?

The HallowBadges-Bat is built around the ATTINY13A-SSU, from the AVR/Arduino family.

How big is the HallowBadges-Bat PCB?

The HallowBadges-Bat measures 98.5 × 89.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HallowBadges-Bat?

10 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the HallowBadges-Bat design files?

From the makeristic/HallowBadges-Bat repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the HallowBadges-Bat design in my own project?

The repository has no license, so all rights stay with makeristic. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the HallowBadges-Bat without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
