Led dimmer pot controller
About the Led dimmer pot controller PCB
Led dimmer pot controller is an open source PCB design by manhoosbilli1, published on GitHub. It is a 2-layer board measuring 103 × 74.2 mm, with 42 components from 17 distinct parts.
Other key parts include the L7805, TLC555CDR and LM358M. By type, the board carries 19 resistors, 5 ICs, 5 transistors, 4 capacitors, 2 connectors and 2 diodes.
From the project
Potentiometer-controlled LED dimmer board

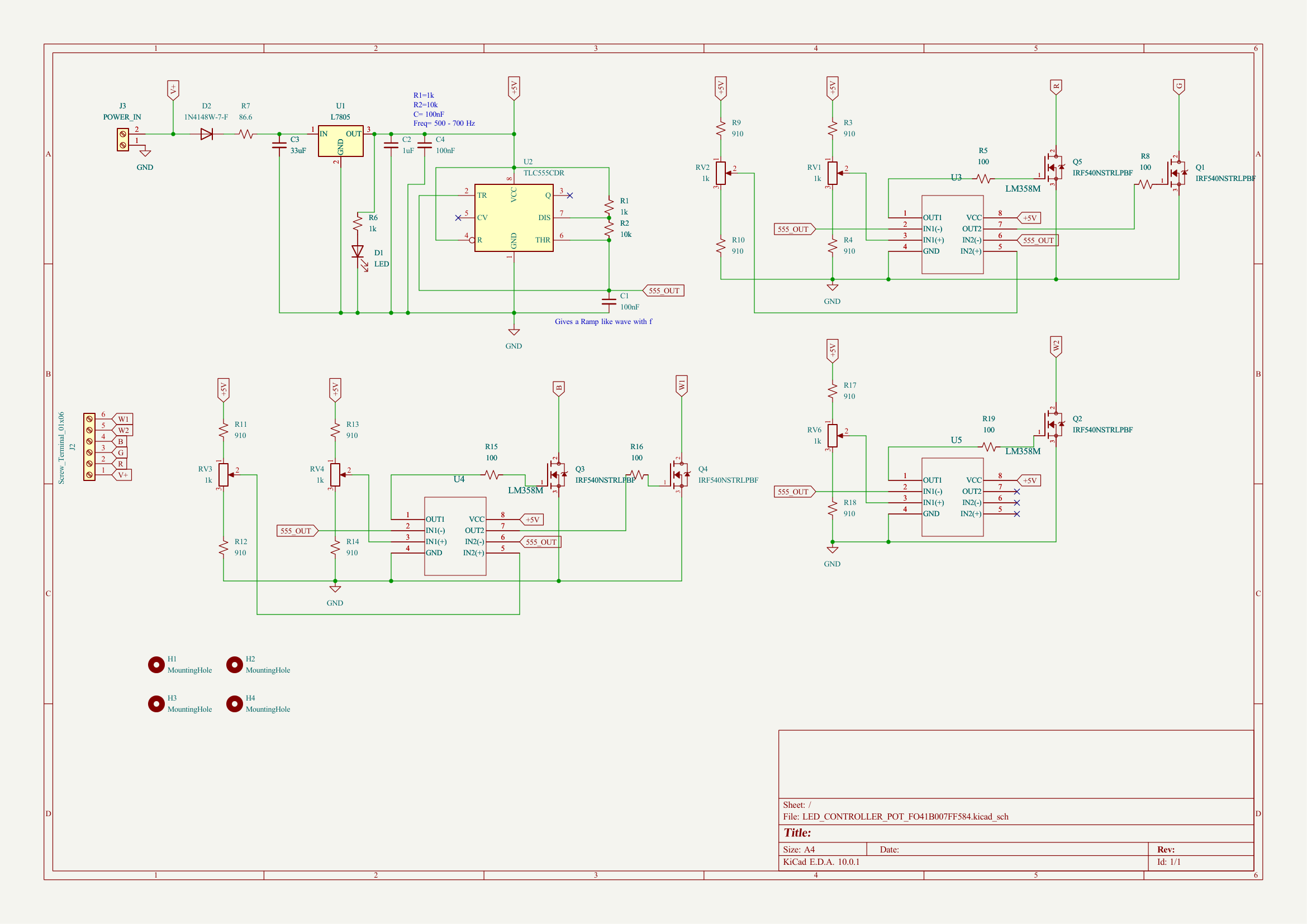

Potentiometer-controlled high-current LED dimmer (TLC555 PWM + LM358 + IRF540N MOSFETs)
- Status: Routed - Board size: 103 x 74.2 mm - Layers: 2 - Components: 42 - Key ICs: - U1: L7805 - U2: TLC555CDR - U3-U5: LM358M
- TLC555CDR (U2) - CMOS 555 timer wired as the PWM oscillator; sets switching frequency - LM358M x3 (U3-U5) - dual op-amps used for the pot-to-duty-cycle conversion and gate drive shaping - IRF540N x5 (Q1-Q5) - power N-channel MOSFETs that switch the LED string current; five in parallel for high total throughput - L7805 (U1) - linear 5 V rail for the analog/control side - POT…
Main components on the Led dimmer pot controller
Led dimmer pot controller bill of materials (BOM)
42 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | L7805 | TO-252-2 | U1 |
| 1 | TLC555CDR | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 3 | LM358M | SOIC-8_5.3x6.2mm_P1.27mm | U3, U4, U5 |
| 5 | IRF540NSTRLPBF | TRANS_IRF540NSTRLPBF | Q1, Q2, Q3, Q4, Q5 |
| 1 | Screw_Terminal_01x06 | TerminalBlock_MaiXu_MX126-5.0-06P_1x06_P5.00mm | J2 |
| 1 | POWER_IN | TerminalBlock_Altech_AK300-2_P5.00mm | J3 |
| 5 | 1k | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV1, RV2, RV3, RV4, RV6 |
| 1 | LED | LED_0201_0603Metric | D1 |
| 1 | 1N4148W-7-F | D_SOD-123 | D2 |
| 2 | 100nF | C_0402_1005Metric | C1, C4 |
| 1 | 1uF | C_0402_1005Metric | C2 |
| 1 | 33uF | C_1812_4532Metric | C3 |
| 2 | 1k | R_0402_1005Metric | R1, R6 |
| 1 | 10k | R_0402_1005Metric | R2 |
| 10 | 910 | R_0402_1005Metric | R3, R4, R9, R10, R11, R12, R13, R14 +2 |
| 5 | 100 | R_0402_1005Metric | R5, R8, R15, R16, R19 |
| 1 | 86.6 | R_0402_1005Metric | R7 |
