USB HAT

marchmare·snaphat-pcb·usb_hat/usb_hat.kicad_pcb

USB HAT layout, top view — open source board by marchmare
Simulate this board

About the USB HAT

USB HAT is an open source PCB design by marchmare, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 30 × 65 mm, with 11 components from 4 distinct parts.

By type, the board carries 6 connectors and 1 resistor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

RaspberryPi Zero 2 W addon serving as a handheld photo camera setup

This directory contains design files and documentation for SnapHAT USB HAT.

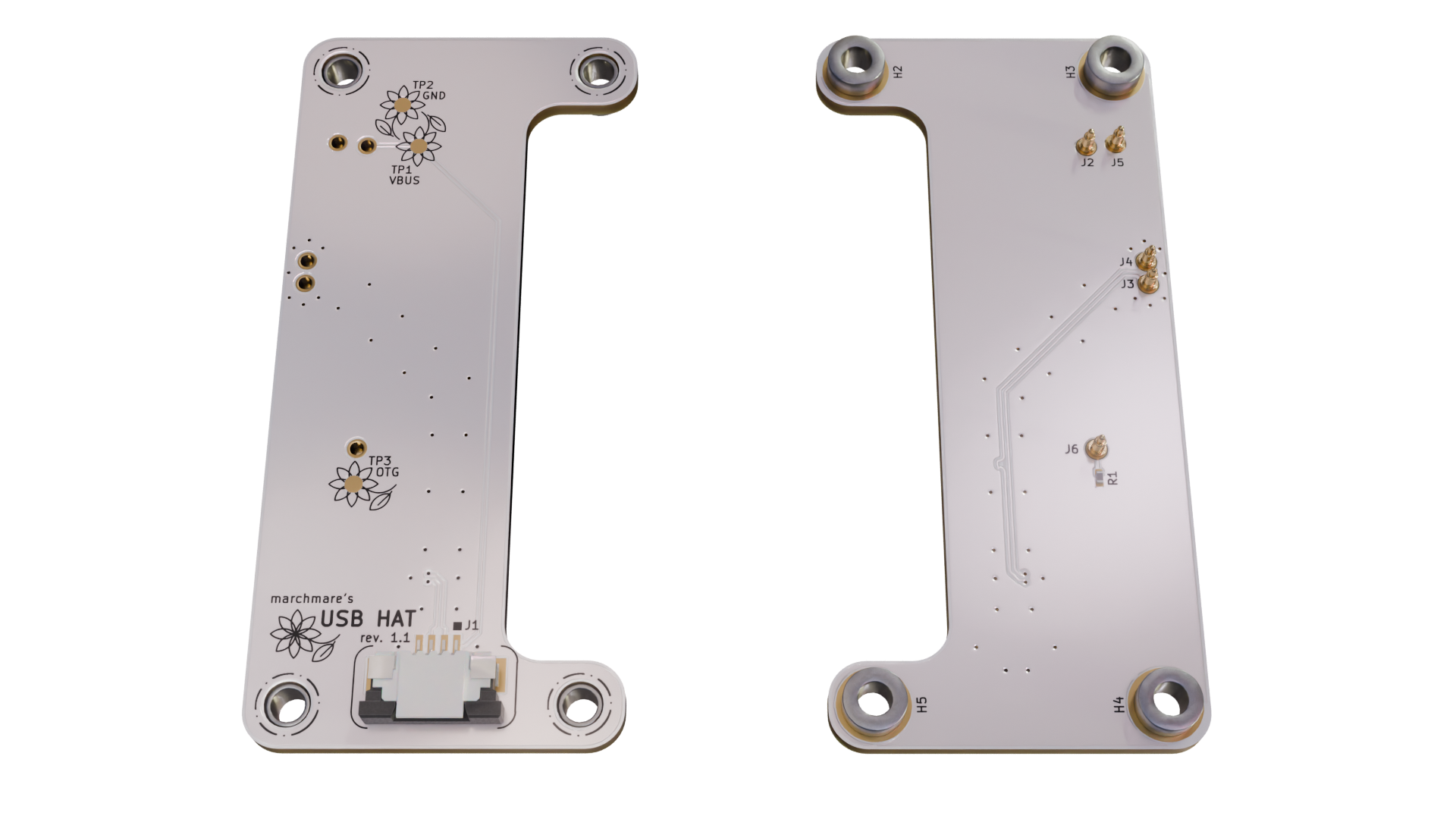

USB HAT, from the project README
From the project README

USB HAT bill of materials (BOM)

11 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
FFC3B11-04-T
Conn_01x04_FFC3B11-04-T
GCT
J1
5
P70-6000045R
Harwin
J2, J3, J4, J5, J6
4
9774020951R
Würth Elektronik
H2, H3, H4, H5
1
RC0402JR-070RL
0R
YAGEO
R1

USB HAT design files

The KiCad project lives in the marchmare/snaphat-pcb repository on GitHub; these links point at the commit this page was built from.

USB HAT: common questions

How big is the USB HAT?

The USB HAT measures 30 × 65 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the USB HAT?

11 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the USB HAT design files?

From the marchmare/snaphat-pcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the USB HAT design in my own project?

Yes, under the terms of its Apache-2.0 license, which marchmare chose for the repository.
