Tester pcb business card unrouted is an open source RISC-V PCB design by MarkJB, published on GitHub. It is a 2-layer board measuring 83.8 × 53.3 mm, with 41 components from 24 distinct parts.

Its main chip is the CH32V003FxUx, from the RISC-V family. By type, the board carries 20 resistors, 10 diodes, 6 switches, 2 capacitors, 1 IC and 1 connector.

From the project

A PCB Business Card designed for and by a Tester (QA Engineer)

A PCB Business Card designed by a tester, for testers (QA Engineers)

I've always liked the PCB business cards I've seen people design. They often have an interesting story about the why and the how, and sometimes even lead to a job offer as a result!

I wanted to give it a go but couldn't think of anything compelling that was related to my primary industry (QA, Software Testing & Test Automation). Then I saw a recent pong example on Hackaday which made me wonder whether the author had done much testing, and that sparked the idea of creating a PCB business card all about testing.

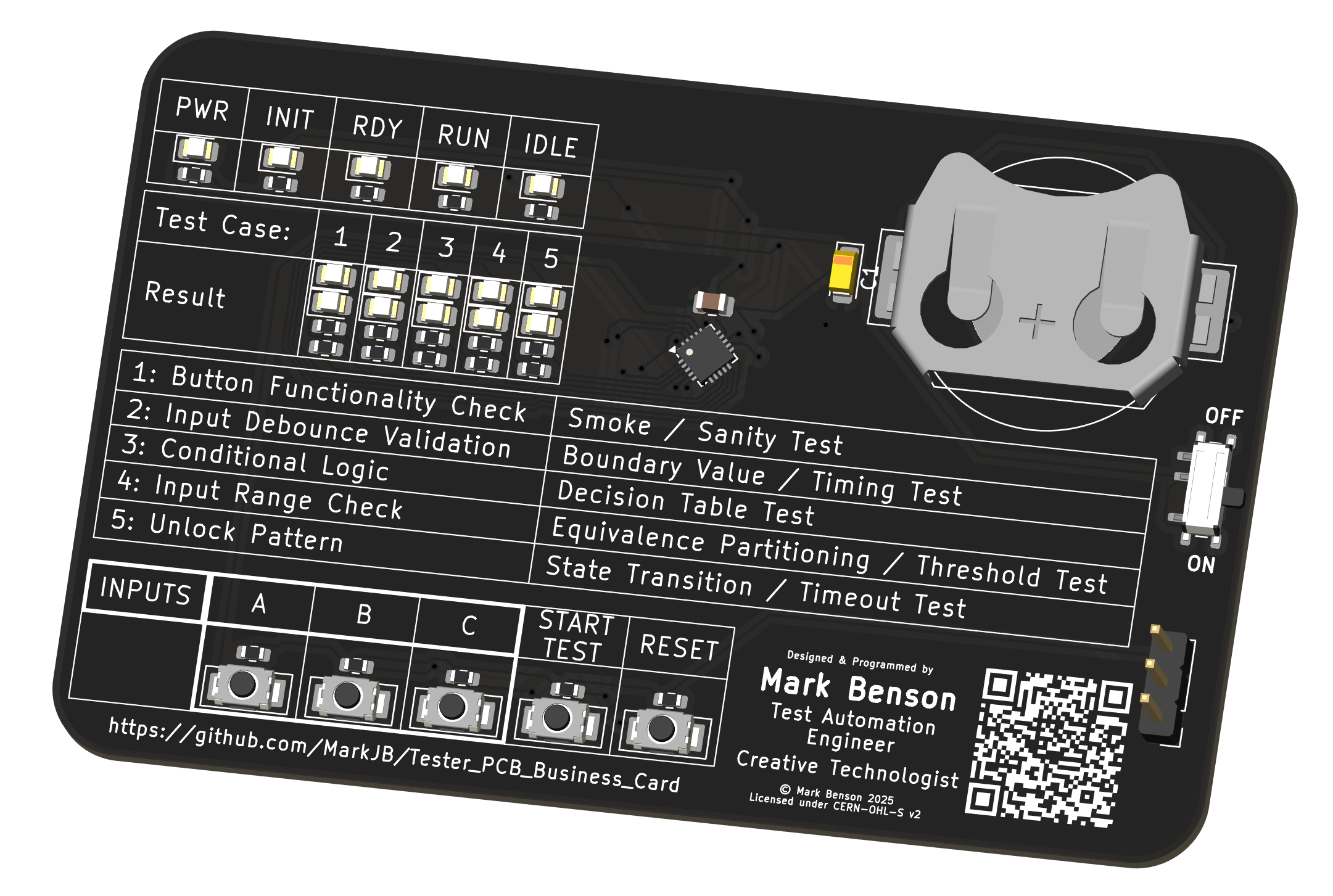

Tester pcb business card unrouted, from the project README
From the project README

Main components on the Tester pcb business card unrouted

CH32V003FxUx

Tester pcb business card unrouted bill of materials (BOM)

41 components, 24 distinct parts.

QtyPartRefs
1
CH32V003FxUx
U1
1
SWIO
J1
1
CR2032
BT1
1
PWR
SW1
1
A
SW2
1
B
SW3
1
C
SW4
1
D
SW5
1
RST
SW6
1
PWR
D1
1
INIT
D2
1
RDY
D3
1
RUN
D4
1
IDLE
D5
1
C
D6
1
A
D7
1
B
D8
1
E
D9
1
D
D10
1
10u
C1
Show 4 more
QtyPartRefs
1
0.1u
C2
10
220
R1, R2, R3, R4, R5, R11, R13, R15 +2
5
10k
R6, R7, R8, R9, R10
5
100
R12, R14, R16, R18, R20

Tester pcb business card unrouted design files

The KiCad project lives in the MarkJB/Tester_PCB_Business_Card repository on GitHub; these links point at the commit this page was built from.

Tester pcb business card unrouted: common questions

What microcontroller does the Tester pcb business card unrouted use?

The Tester pcb business card unrouted is built around the CH32V003FxUx, from the RISC-V family.

How big is the Tester pcb business card unrouted?

The Tester pcb business card unrouted measures 83.8 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tester pcb business card unrouted?

41 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the Tester pcb business card unrouted design files?

From the MarkJB/Tester_PCB_Business_Card repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Tester pcb business card unrouted design in my own project?

The repository has no license, so all rights stay with MarkJB. Use it as a reference, and ask the author before reusing the design.
