ATX-PSU
About the ATX-PSU PCB
ATX-PSU is an open source PCB design by masterchekla, published on GitHub. It is a board, with 19 components from 16 distinct parts.
Other key parts include the ZK-4KX. By type, the board carries 9 connectors, 3 fuses, 2 diodes, 2 resistors, 1 IC and 1 module.
It belongs with the power & battery designs in this gallery.
From the project
ATX bench power supply project
Project 1 · Electronics Circuits Laboratory · 091013107
This was our first power supply project. As second-year students, we studied how an ATX power supply works and used it to build a supply for small circuit experiments. The project combines fixed outputs with an adjustable output in one box.

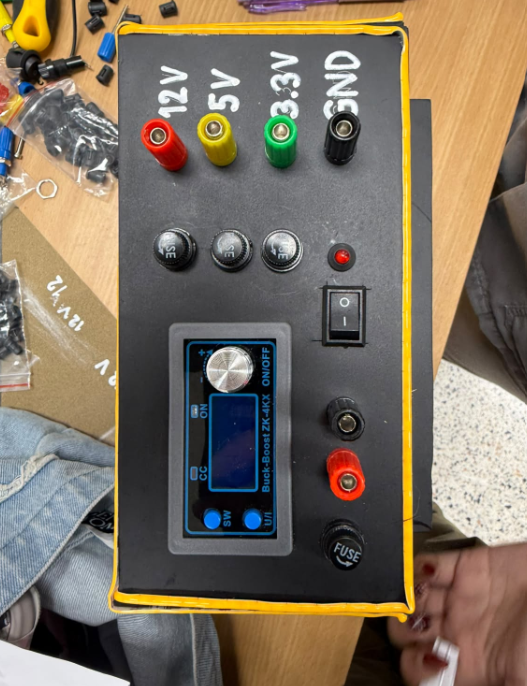

The fixed outputs are 12 V, 5 V and 3.3 V, with a common GND terminal. A ZK-4KX buck–boost module provides the adjustable output. We also added a 12 V cigarette-lighter power socket, a 5 V LED strip and two status LEDs, while retaining the original PSU fan. We worked together on the project.
Main components on the ATX-PSU
ATX-PSU bill of materials (BOM)
19 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ZK-4KX | U1 | |
| 1 | Internal PSU fan | M1 | |
| 1 | PLENTY ATX500WS | J1 | |
| 1 | 12 V / RED | J2 | |
| 1 | 5 V / YELLOW | J3 | |
| 1 | 3.3 V / GREEN | J4 | |
| 1 | GND / BLACK | J5 | |
| 1 | ADJ + / RED | J6 | |
| 1 | ADJ - / BLACK | J7 | |
| 1 | 12 V CIG. SOCKET | J8 | |
| 1 | 5 V LED STRIP | J9 | |
| 3 | Fuse | F1, F2, F3 | |
| 1 | MAIN ON/OFF | SW1 | |
| 1 | GREEN / STANDBY | D1 | |
| 1 | RED / POWER GOOD | D2 | |
| 2 | 1k | R1, R2 |
ATX-PSU design files
The KiCad project lives in the masterchekla/ATX-PSU repository on GitHub; these links point at the commit this page was built from.
- Schematichardware/diy_atx_psu.kicad_sch
ATX-PSU: common questions
How many components are on the ATX-PSU?
19 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the ATX-PSU design files?
From the masterchekla/ATX-PSU repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the ATX-PSU design in my own project?
The repository has no license, so all rights stay with masterchekla. Use it as a reference, and ask the author before reusing the design.
