Matyas s-Hackpad

Matyas604·Matyas-s-Hackpad·PCB/Matyas's Hackpad.kicad_pcb

Matyas s-Hackpad PCB layout, top view — open source board by Matyas604

About the Matyas s-Hackpad PCB

Matyas s-Hackpad is an open source PCB design by Matyas604, published on GitHub under the MIT license. It is a 2-layer board measuring 80 × 62.5 mm, with 25 components from 6 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 15 diodes, 8 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

My first own project, which includes a PCB and 3D printed components that I made.

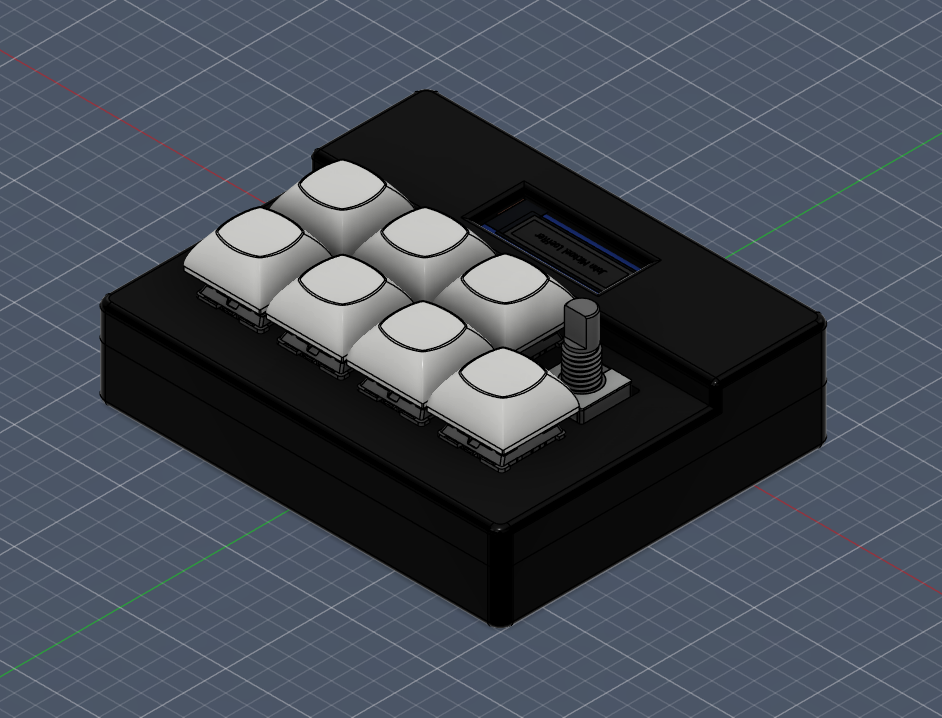

Matyas s-Hackpad, from the project README
From the project README

Main components on the Matyas s-Hackpad

MOUDLE-SEEEDUINO-XIAO

Matyas s-Hackpad bill of materials (BOM)

25 components, 6 distinct parts.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
OLED_DISPLAY
J1
7
SW_Push
SW1, SW2, SW3, SW5, SW6, SW7, SW8
1
RotaryEncoder_Switch
SW4
8
1N4148
D1, D2, D3, D4, D5, D6, D7, D8
7
SK6812MINI-E
D9, D10, D11, D12, D13, D14, D15

Matyas s-Hackpad design files

The KiCad project lives in the Matyas604/Matyas-s-Hackpad repository on GitHub; these links point at the commit this page was built from.

Matyas s-Hackpad: common questions

How big is the Matyas s-Hackpad PCB?

The Matyas s-Hackpad measures 80 × 62.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Matyas s-Hackpad?

25 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Matyas s-Hackpad design files?

From the Matyas604/Matyas-s-Hackpad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Matyas s-Hackpad design in my own project?

Yes, under the terms of its MIT license, which Matyas604 chose for the repository.
