Claude pcb design skill

Maxpeng59·Claude-pcb-design-skill·examples/sample_fc_output/stm32_quad_flight_controller.net

Claude pcb design skill

Simulate this board

About the Claude pcb design skill

Claude pcb design skill is an open source PCB design by Maxpeng59, published on GitHub under the MIT license. It is a board, with 103 components from 25 distinct parts.

Other key parts include the C8734, C2912107, C2684428, C492421 and C3015484. By type, the board carries 43 capacitors, 15 resistors, 9 diodes, 5 ICs, 4 modules and 4 transistors.

It belongs with the robotics & motion designs in this gallery.

From the project

Claude skill: generate electrically-correct STM32 PCB designs from real LCSC parts — netlist, footprints, a routed two-layer board render (component + copper), BOM, and matching firmware.

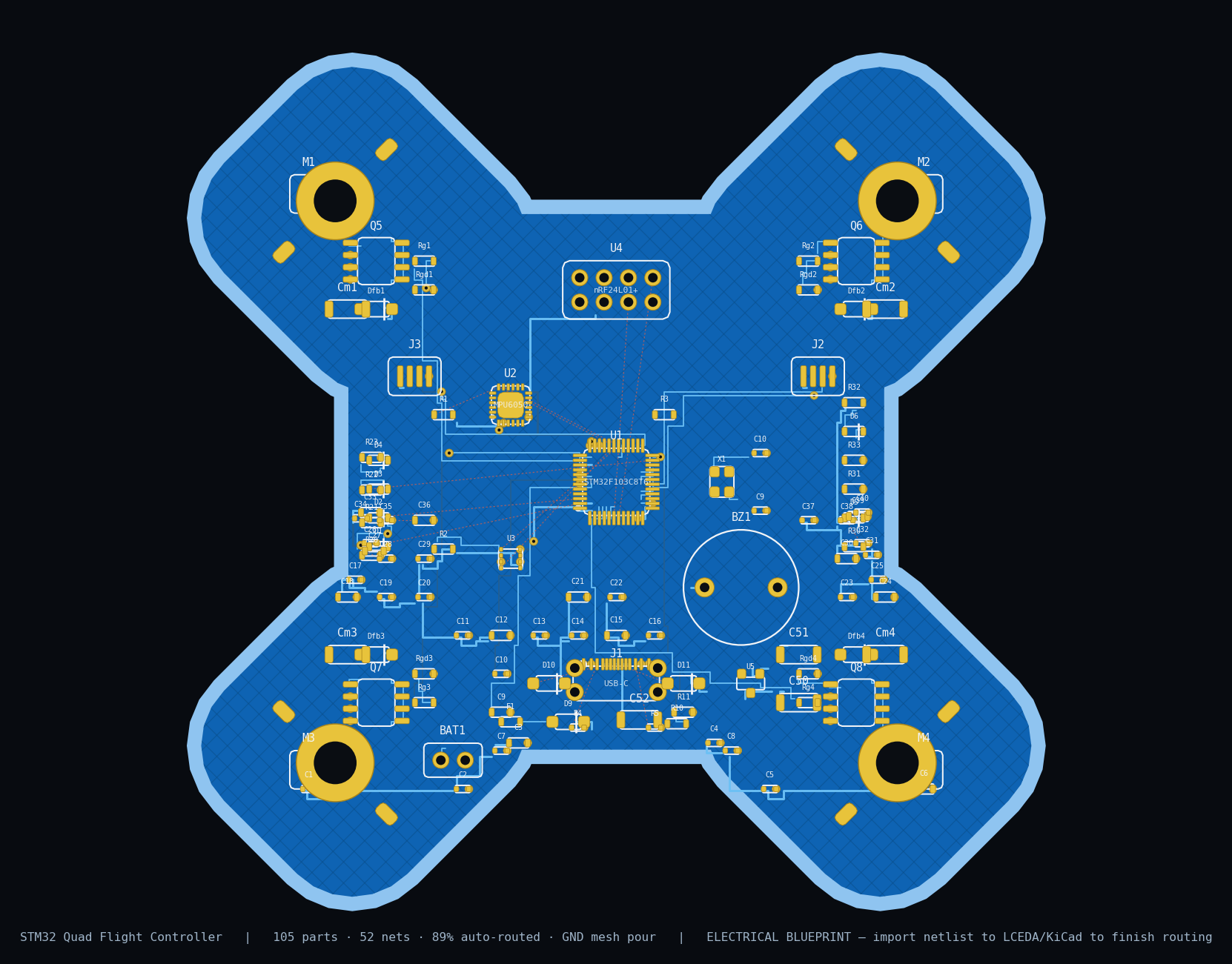

From one pin-mapped design, generate five consistent artifacts grounded in real, orderable parts: a connectivity-correct netlist, accurate footprints, a board render that looks like a fabricated 2-layer PCB (blue soldermask, gold ENIG pads, white silkscreen, routed copper, GND pour, custom outline), a BOM with LCSC part numbers, and an STM32 firmware project whose pin map equals the netlist.

Main components on the Claude pcb design skill

C8734 C2912107 C2684428 C492421 C3015484

Claude pcb design skill bill of materials (BOM)

103 components, 25 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	C8734 mcu_stm32f103	lqfp48	U1
1	C2912107 sens_mpu6050	qfn24	U2
1	C2684428 sens_spl06	lga8	U3
1	C492421 comm_nrf24l01	hdr8	U4
1	C3015484 ldo_xc6206_33	sot23_3	U5
4	C7433453 conn_motor_2p	hdr2	M1, M2, M3, M4
4	C5125947 mosfet_ao4466	sop8	Q5, Q6, Q7, Q8
1	C400090 xtal_8mhz	crystal_4	X1
1	C2858270 conn_usb_c	usb_c_16	J1
2	C2845363 conn_hdr_4	hdr4	J2, J3
1	C5383119 conn_hdr_2	hdr2	BAT1
1	C7544832 buzzer	buzzer	BZ1
4	C5448950 cap_1206	chip_1206	Cm1, Cm2, Cm3, Cm4
4	C2988774 diode_1n5819	sod123	Dfb1, Dfb2, Dfb3, Dfb4
1	C46640965 fuse_0603	chip_0603	F1
8	C25804 res_0603	chip_0603	Rg1, Rg2, Rg3, Rg4, Rgd1, Rgd2, Rgd3, Rgd4
6	C2286 led_0603	chip_0603	D1, D2, D3, D4, D5, D6
1	C2988774 diode_1n5819	sod123	D9
2	C7420318 diode_1n4148	sod123	D10, D11
27	C1525 cap_0402	chip_0402	C1, C2, C4, C5, C7, C8, C10, C11 +19

Show 5 more

Qty	Part	Footprint	Refs
12	C14663 cap_0603	chip_0603	C3, C6, C12, C15, C18, C21, C24, C27 +4
1	C1525 cap_0603	chip_0603	C9
3	C5448950 cap_1206	chip_1206	C50, C51, C52
13	C25804 res_0603	chip_0603	R1, R2, R3, R10, R11, R20, R21, R22 +5
2	C477765 res_0402	chip_0402	R4, R5

Claude pcb design skill design files

The KiCad project lives in the Maxpeng59/Claude-pcb-design-skill repository on GitHub; these links point at the commit this page was built from.

Claude pcb design skill: common questions

How many components are on the Claude pcb design skill?

103 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Claude pcb design skill design files?

From the Maxpeng59/Claude-pcb-design-skill repository on GitHub, which has a netlist and the BOM; the links under Design files point to each one.

Can I use the Claude pcb design skill design in my own project?

Yes, under the terms of its MIT license, which Maxpeng59 chose for the repository.
