M644/M1284 breakout (Eagle 6.5 exported) layout, top view — open source AVR/Arduino board by maxxir
Simulate this board

About the M644/M1284 breakout (Eagle 6.5 exported)

M644/M1284 breakout (Eagle 6.5 exported) is an open source AVR/Arduino PCB design by maxxir, published on GitHub. It is a board measuring 54.9 × 45 mm, with 62 components from 25 distinct parts.

Its main chip is the ATMEGA16/32/644/1284, from the AVR/Arduino family. Other key parts include the 78TV. By type, the board carries 27 jumpers, 12 capacitors, 10 resistors, 4 diodes, 2 ICs and 2 LEDs.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Lots of projects using ATMEGA 1284p and Ethernet NIC Wiznet 5500 (based on W5500 EVB examples)

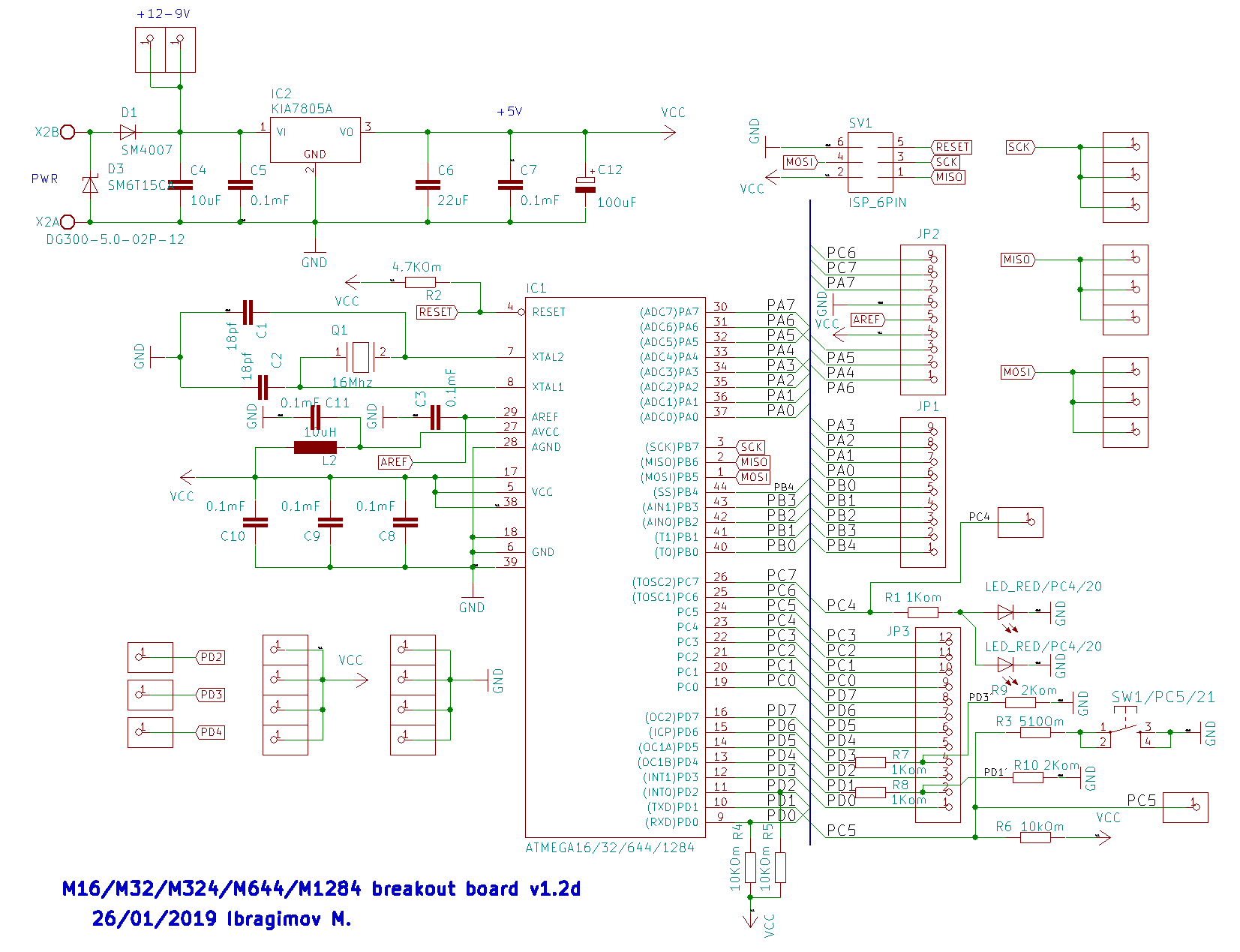

M644/M1284 breakout (Eagle 6.5 exported), from the project README
From the project README

Main components on the M644/M1284 breakout (Eagle 6.5 exported)

ATMEGA16/32/644/128478TV

M644/M1284 breakout (Eagle 6.5 exported) bill of materials (BOM)

62 components, 25 distinct parts.

QtyPartRefs
1
ATMEGA16/32/644/1284
IC1
1
78TV
IC2
1
16Mhz
Q1
1
DG300-5.0-02P-12
X2
2
PIN1x9
JP1, JP2
1
PIN1x12
JP3
24
PINx1
JP4, JP5, JP6, JP7, JP8, JP9, JP10, JP11 +16
1
ISP_6PIN
SV1
1
SMD_TACT_4x4
SW1/PC5
1
LED_RED/PC4/20
LED1
1
LED_RED/PC4/20
LED1_SMD1
3
SM4007
D1, D2, D4
1
SM6T15CA
D3
1
10uH
L2
2
18pf
C1, C2
7
0.1mF
C3, C5, C7, C8, C9, C10, C11
1
10uF
C4
1
22uF
C6
1
100uF
C12
1
1Kom
R1
Show 5 more
QtyPartRefs
1
4.7KOm
R2
1
510Om
R3
3
10KOm
R4, R5, R6
2
1Kom
R7, R8
2
2Kom
R9, R10

M644/M1284 breakout (Eagle 6.5 exported) design files

The KiCad project lives in the maxxir/m1284p_wiz5500 repository on GitHub; these links point at the commit this page was built from.

M644/M1284 breakout (Eagle 6.5 exported): common questions

What microcontroller does the M644/M1284 breakout (Eagle 6.5 exported) use?

The M644/M1284 breakout (Eagle 6.5 exported) is built around the ATMEGA16/32/644/1284, from the AVR/Arduino family.

How big is the M644/M1284 breakout (Eagle 6.5 exported)?

The M644/M1284 breakout (Eagle 6.5 exported) measures 54.9 × 45 mm and is 1.6 mm thick.

How many components are on the M644/M1284 breakout (Eagle 6.5 exported)?

62 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the M644/M1284 breakout (Eagle 6.5 exported) design files?

From the maxxir/m1284p_wiz5500 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the M644/M1284 breakout (Eagle 6.5 exported) design in my own project?

The repository has no license, so all rights stay with maxxir. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the M644/M1284 breakout (Eagle 6.5 exported) without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
