Arcader usb PCB layout, top view — open source AVR/Arduino board by mbarszcz-pcb

About the Arcader usb PCB

Arcader usb is an open source AVR/Arduino PCB design by mbarszcz-pcb, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 82 × 30 mm, with 27 components from 19 distinct parts.

Its main chip is the ATMEGA32U4RC-AU, from the AVR/Arduino family. By type, the board carries 8 connectors, 7 capacitors, 5 resistors, 3 switches, 2 diodes and 1 IC.

It belongs with the retro computing designs in this gallery.

From the project

Quick Links Schematic Gerber Files PCB Renderings Photos

Quick Links Schematic Gerber Files PCB Renderings Photos

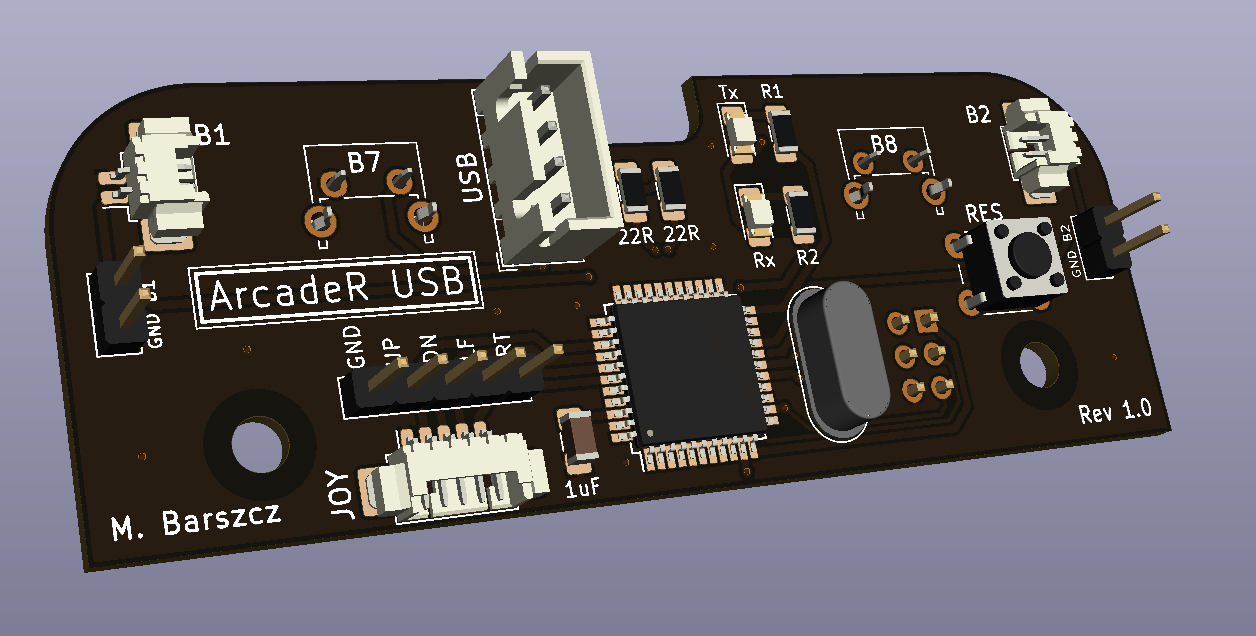

The ArcadeR USB aims to solve these problems plus introduces some extra features by simply providing a new PCB that fits inside the joystick with no modifications require and allows you to simply plug in the internal joystick and button cables.

* Recommended "Zero-Delay USB Encoder" cable. Other USB cables can be used, but you may need to add a JST XH connector or strip the cable and solder the 4 wires directly to the PCB.

Arcader usb, from the project README
From the project README

Main components on the Arcader usb

ATMEGA32U4RC-AU

Arcader usb bill of materials (BOM)

27 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA32U4RC-AU
ATmega32U4-AU
Microchip
U1
1
AS-16.000MAHK-B
16MHz
TXC CORPORATION
Y1
1
10129381-906002BLF
Conn_01x06_Male
Amphenol ICC (FCI)
J5
1
Conn_01x04_Male
JST
J11
2
0532610271
Conn_01x02_Male
Molex
J21, J31
2
Conn_01x02_Male
J22, J32
1
0532610571
Conn_01x05_Male
Molex
J41
1
Conn_01x05_Male
J42
1
1825910-6
SW_Push
TE Connectivity ALCOSWITCH
SW3
2
TL1105JAF250Q
SW_Push
E-Switch
SW7, SW8
1
732-4988-1
Tx
Würth Elektronik
D1
1
732-4988-1
Rx
Würth Elektronik
D2
3
C1206C105K4RACTU
1uF
KEMET
C1, C4, C5
2
C1206C220K3HAC7800
22pF
KEMET
C2, C3
1
C1206C106K4RACTU
10uF
KEMET
C6
1
C1206C104K4RACTU
0.1uF
KEMET
C7
2
RMCF1206JT2K20
1K
Stackpole Electronics Inc
R1, R2
2
RMCF1206JT22R0
22R
Stackpole Electronics Inc
R3, R4
1
RMCF1206JT10K0
10K
Stackpole Electronics Inc
R5

Arcader usb design files

The KiCad project lives in the mbarszcz-pcb/arcader-usb repository on GitHub; these links point at the commit this page was built from.

Arcader usb: common questions

What microcontroller does the Arcader usb use?

The Arcader usb is built around the ATMEGA32U4RC-AU, from the AVR/Arduino family.

How big is the Arcader usb PCB?

The Arcader usb measures 82 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Arcader usb?

27 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Arcader usb design files?

From the mbarszcz-pcb/arcader-usb repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Arcader usb design in my own project?

Yes, under the terms of its GPL-3.0 license, which mbarszcz-pcb chose for the repository.

Can I test firmware for the Arcader usb without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
