About the C64-rf modulator replacement PCB
C64-rf modulator replacement is an open source PCB design by mbarszcz-pcb, published on GitHub under the MIT license. It is a 2-layer board measuring 51.8 × 32.6 mm, with 31 components from 21 distinct parts.
Other key parts include the L78L05CZ. By type, the board carries 11 resistors, 6 capacitors, 5 jumpers, 2 transistors, 2 connectors and 1 IC.
It belongs with the retro computing designs in this gallery.
From the project

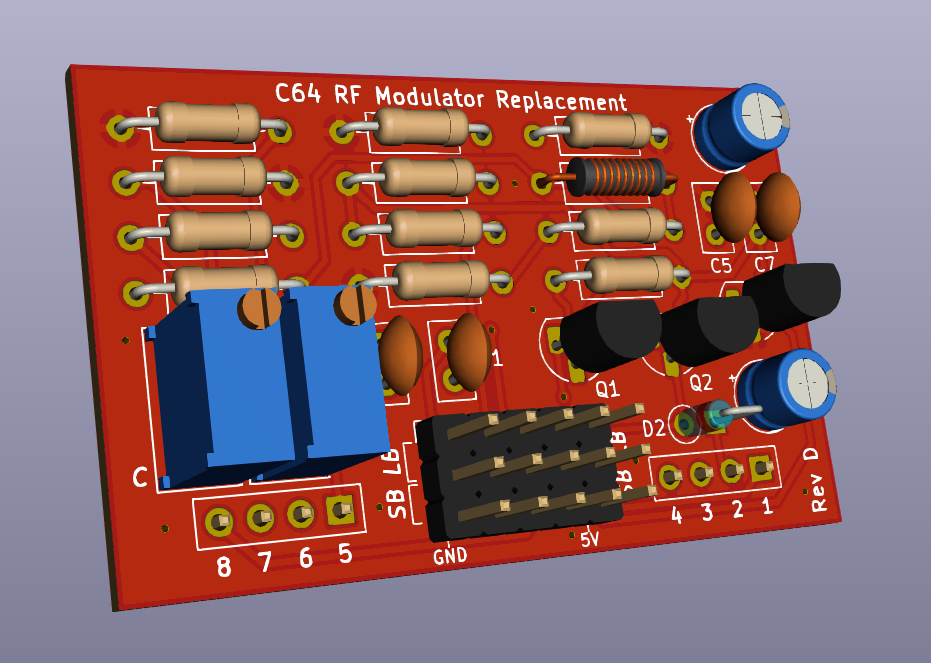

C64 Composite/S-Video RF Modulator Replacement
This design has a few goals that set it apart from the others:
1. It is a universal solution that fits and is electrically compatible with both the C64 and C64C without having to change components on the board or run jumper wires for power.
2. It is easy and inexpensive to build with only a single, small PCB and all through-hole components.
3. It provides high quality S-Video (Y/C) output while maintaining composite video output for compatibility.
Main components on the C64-rf modulator replacement
C64-rf modulator replacement bill of materials (BOM)
31 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | L78L05CZ 78L05 STMicroelectronics | TO-92_HandSolder | U1 |
| 2 | BC547B BC547 ON Semiconductor | TO-92_HandSolder | Q1, Q2 |
| 2 | Conn_01x04_Male | PinHeader_1x04_P2.54mm_Vertical | J1, J2 |
| 5 | Jumper_3_Open | PinHeader_1x03_P2.54mm_Vertical-NoSilk | JP1, JP2, JP3, JP4, JP5 |
| 1 | 3296W-1-102LF 1K Bourns Inc. | Potentiometer_Bourns_3296W_Vertical | RV1 |
| 1 | 3296W-1-221LF 220 Bourns Inc. | Potentiometer_Bourns_3296W_Vertical | RV2 |
| 1 | 1N4148 ON Semiconductor | D_DO-35_SOD27_P2.54mm_Vertical_KathodeUp | D2 |
| 1 | 78F100J-RC 10uH Bourns Inc. | L_Axial_L6.6mm_D2.7mm_P10.16mm_Horizontal_Vishay_IM-2 | L2 |
| 1 | SR151A331JAA 330pF AVX Corporation | C_Disc_D5.0mm_W2.5mm_P2.50mm | C1 |
| 2 | USV1E100MFD1TP 10uF Nichicon | CP_Radial_D5.0mm_P2.50mm | C3, C8 |
| 1 | SR205E334MAR 0.33uF AVX Corporation | C_Disc_D5.0mm_W2.5mm_P2.50mm | C5 |
| 1 | SR151A680JAR 68pF AVX Corporation | C_Disc_D5.0mm_W2.5mm_P2.50mm | C6 |
| 1 | SR205E104MAR 0.1uF AVX Corporation | C_Disc_D5.0mm_W2.5mm_P2.50mm | C7 |
| 2 | CF14JT1K00 1K Stackpole Electronics Inc | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R62 |
| 1 | CF14JT3K30 3.3K Stackpole Electronics Inc | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2 |
| 1 | CF14JT5K60 5.6K Stackpole Electronics Inc | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3 |
| 1 | CF14JT68R0 68 Stackpole Electronics Inc | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4 |
| 1 | CF14JT220R 220 Stackpole Electronics Inc | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R5 |
| 1 | CF14JT75R0 75 Stackpole Electronics Inc | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R7 |
| 3 | CF14JT150R 150 Stackpole Electronics Inc | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R8, R11, R12 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CF14JT470R 470 Stackpole Electronics Inc | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R61 |
C64-rf modulator replacement design files
The KiCad project lives in the mbarszcz-pcb/c64-rf-modulator-replacement repository on GitHub; these links point at the commit this page was built from.
C64-rf modulator replacement: common questions
How big is the C64-rf modulator replacement PCB?
The C64-rf modulator replacement measures 51.8 × 32.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the C64-rf modulator replacement?
31 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the C64-rf modulator replacement design files?
From the mbarszcz-pcb/c64-rf-modulator-replacement repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the C64-rf modulator replacement design in my own project?
Yes, under the terms of its MIT license, which mbarszcz-pcb chose for the repository.
