CC2500-Breakout
About the CC2500-Breakout
CC2500-Breakout is an open source PCB design by mcauser, published on GitHub under the MIT license. It is a 2-layer board measuring 20.3 × 20.3 mm, with 2 components from 2 distinct parts.
Other key parts include the CC2500. By type, the board carries 1 IC and 1 connector.
It belongs with the rf & radio and dev boards & breakouts designs in this gallery.
From the project

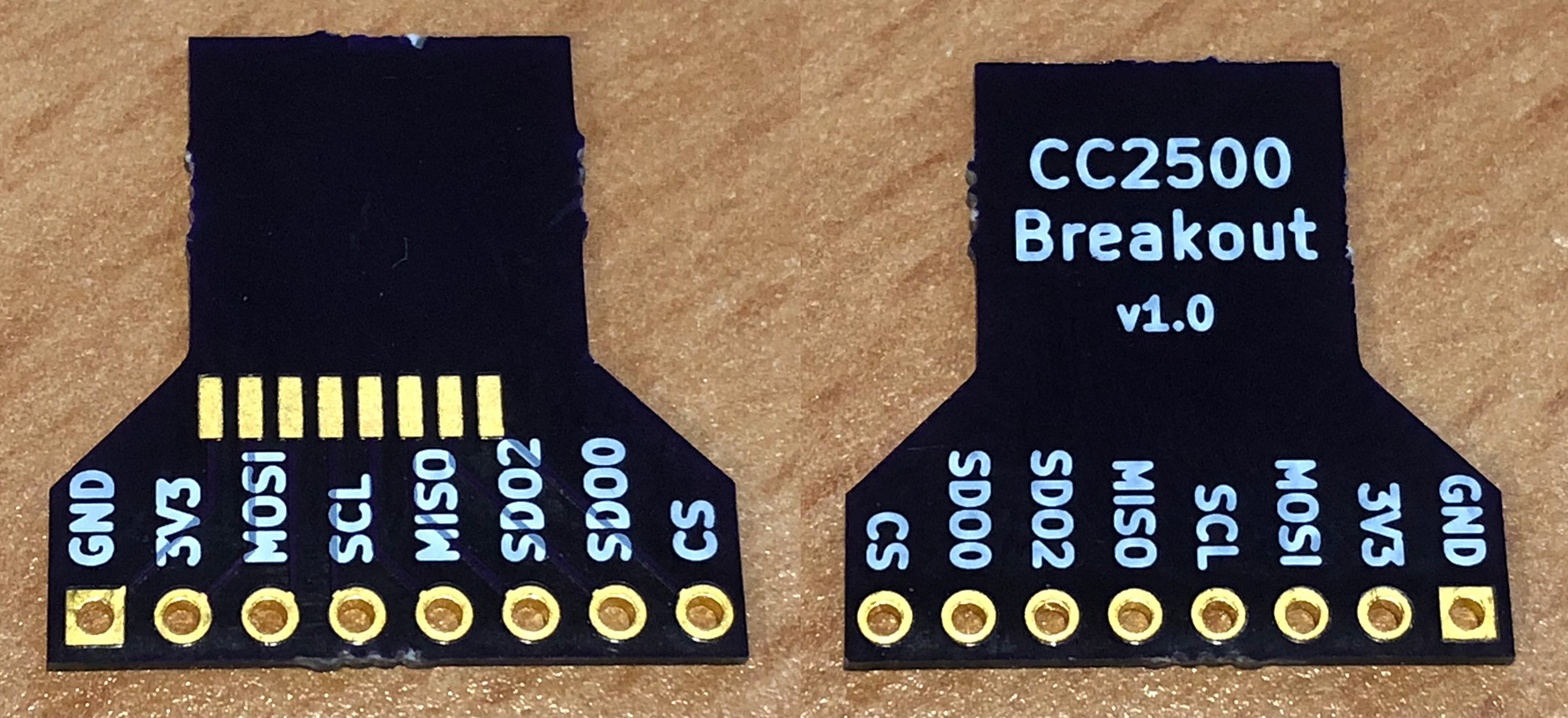

Breakout board for the CC2500 2.4GHz RF transceiver module
Breakout board for the CC2500 2.4GHz RF transceiver module.
3x boards for $3.20 (2 oz copper, 0.8mm thickness)
Only component you need is 1x8 straight or right-angle 2.54mm headers.
They look black here, but that's just the dim lighting in my office. They are dark purple PCBs.
CC2500 2.4GHz RF transceiver module Order the board on OSH Park
Main components on the CC2500-Breakout
CC2500-Breakout bill of materials (BOM)
2 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CC2500 | cc2500 | U1 |
| 1 | Conn_01x08 | Pin_Header_Straight_1x08_Pitch2.54mm | J1 |
CC2500-Breakout design files
The KiCad project lives in the mcauser/CC2500-Breakout repository on GitHub; these links point at the commit this page was built from.
CC2500-Breakout: common questions
How big is the CC2500-Breakout?
The CC2500-Breakout measures 20.3 × 20.3 mm, has 2 copper layers and is 0.8 mm thick.
How many components are on the CC2500-Breakout?
2 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the CC2500-Breakout design files?
From the mcauser/CC2500-Breakout repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the CC2500-Breakout design in my own project?
Yes, under the terms of its MIT license, which mcauser chose for the repository.
