XL7105-SY-B-Breakout

mcauser·XL7105-SY-B-Breakout·kicad/XL7105-SY-B-Breakout.kicad_pcb

XL7105-SY-B-Breakout layout, top view — open source board by mcauser

About the XL7105-SY-B-Breakout

XL7105-SY-B-Breakout is an open source PCB design by mcauser, published on GitHub under the MIT license. It is a 2-layer board measuring 20 × 19.5 mm, with 2 components from 2 distinct parts.

Other key parts include the XL7105-SY-B. By type, the board carries 1 IC and 1 connector.

It belongs with the rf & radio and dev boards & breakouts designs in this gallery.

From the project

Breakout board for the XL7105-SY-B 2.4GHz RF transceiver module

Breakout board for the XL7105-SY-B 2.4GHz RF transceiver module.

Sometimes sold under the name MD7105-SY and features the AMICCOM A7105 transceiver.

3x boards for $3.05 (2 oz copper, 0.8mm thickness)

Only component you need is 1x7 straight or right-angle 2.54mm headers.

XL7105-SY-B 2.4GHz RF transceiver module Order the board on OSH Park

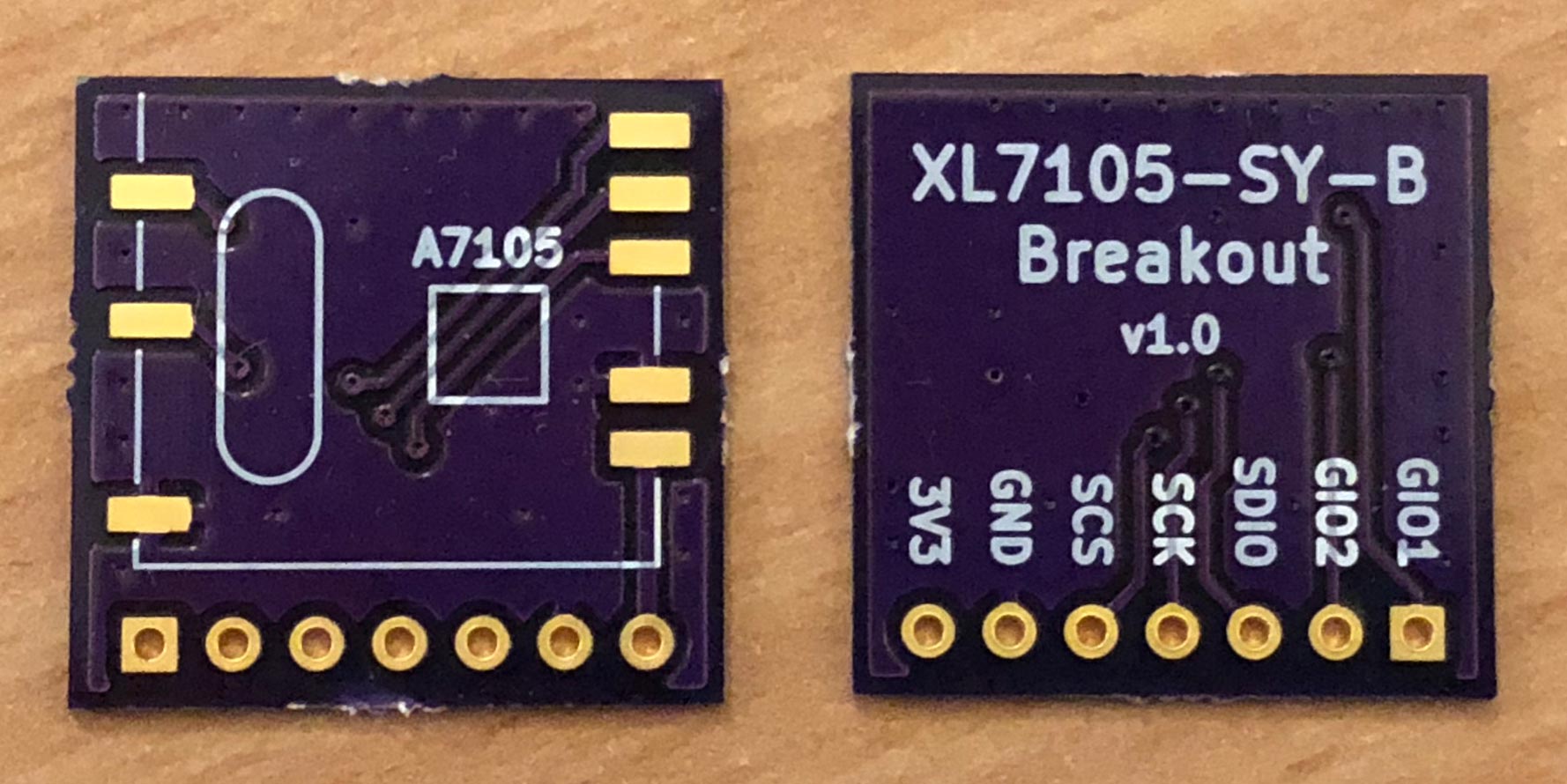

XL7105-SY-B-Breakout, from the project README
From the project README

Main components on the XL7105-SY-B-Breakout

XL7105-SY-B

XL7105-SY-B-Breakout bill of materials (BOM)

2 components, 2 distinct parts.

QtyPartRefs
1
XL7105-SY-B
U1
1
Conn_01x07
J1

XL7105-SY-B-Breakout design files

The KiCad project lives in the mcauser/XL7105-SY-B-Breakout repository on GitHub; these links point at the commit this page was built from.

XL7105-SY-B-Breakout: common questions

How big is the XL7105-SY-B-Breakout?

The XL7105-SY-B-Breakout measures 20 × 19.5 mm, has 2 copper layers and is 0.8128 mm thick.

How many components are on the XL7105-SY-B-Breakout?

2 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the XL7105-SY-B-Breakout design files?

From the mcauser/XL7105-SY-B-Breakout repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the XL7105-SY-B-Breakout design in my own project?

Yes, under the terms of its MIT license, which mcauser chose for the repository.
