Motormodul
About the Motormodul PCB

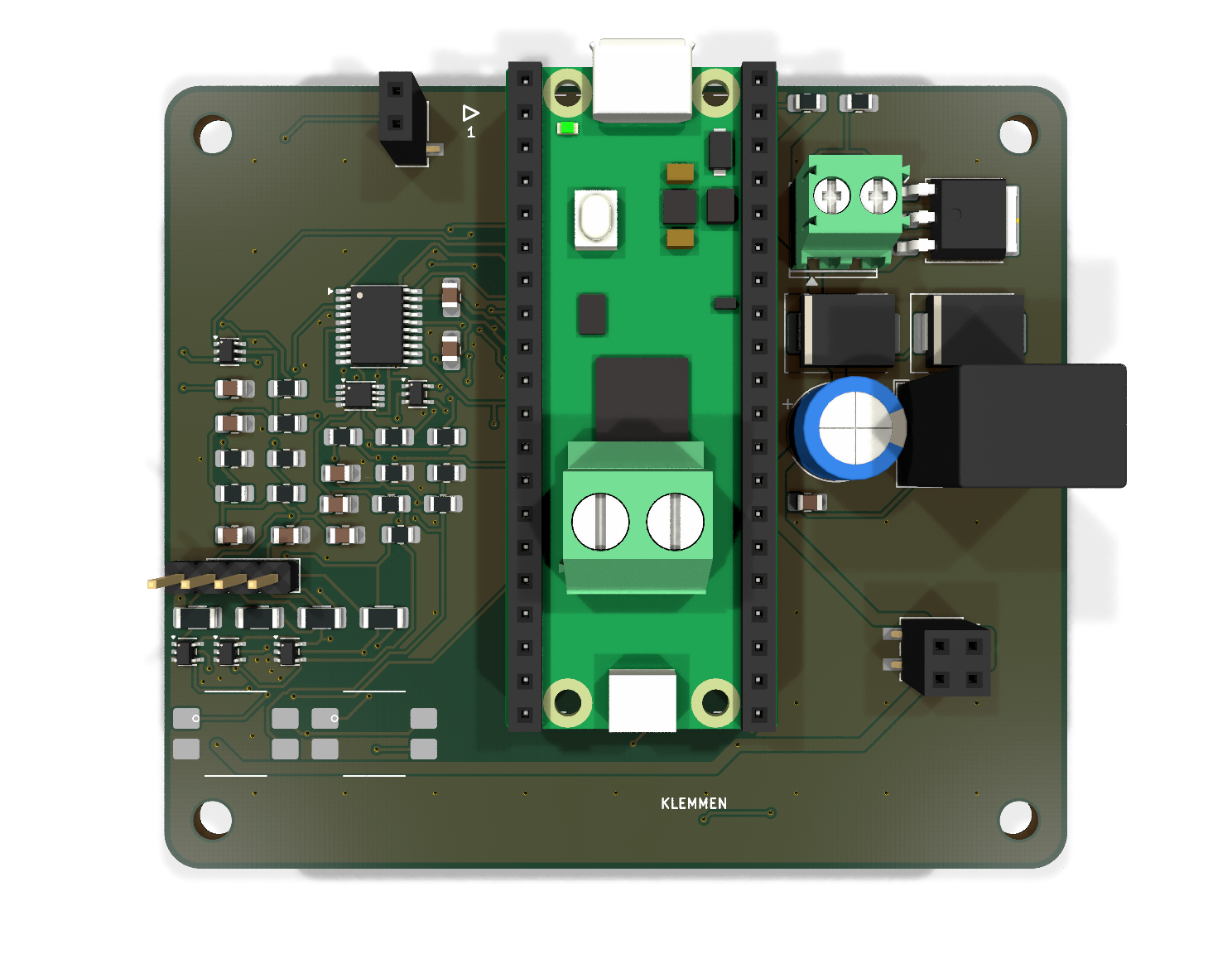

Motormodul is an open source STM32 PCB design by Meo98, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 75 × 65 mm, with 63 components from 39 distinct parts.
Its main chip is the C5456198, from the STM32 family. Other key parts include the DRV8876PWPR, C7832, C97308, C7830 and C909765. By type, the board carries 20 resistors, 14 capacitors, 11 ICs, 11 connectors, 2 diodes and 1 transistor.
It belongs with the robotics & motion designs in this gallery.
From the project
Stackable, contract-driven module system for the Raspberry Pi Pico — open hardware, built by code
One board plus a Pico is a working device. PicoStack v2 abolishes the separate base board that v1 needed: every 75 × 65 mm module now carries its own 6–30 V supply (reverse-polarity protection, TVS, a K7805-1000R3 regulator, Schottky-OR into VSYS) and a pair of Pico-native 1×20 socket rows (17.78 mm apart, the Pico's own pinout) — the Pico plugs straight into the top of the stack and all 40 pins run down through it. Stack several fed boards and they coexist; one is enough to power the whole chain. Every module also breaks out its 18 spare Pico GPIOs plus 3V3/GND as labelled solder pads on the…
Main components on the Motormodul
Motormodul bill of materials (BOM)
63 components, 39 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DRV8876PWPR | IC_DRV8876PWPR | U1 |
| 2 | C7832 SN74LVC1G08 | SOT-353_SC-70-5 | U3, U103 |
| 2 | C97308 PC817 | PC817_SMT_Gullwing | U4, U5 |
| 2 | C7830 SN74LVC1G07 | SOT-353_SC-70-5 | U6, U7 |
| 1 | C909765 K7805-1000R3 | Converter_DCDC_RECOM_R-78B-2.0_THT | U90 |
| 1 | C5456198 STM32C011F6P6 | TSSOP-20_4.4x6.5mm_P0.65mm | U100 |
| 1 | C202238 SN74LVC1G175 | SOT-363_SC-70-6 | U101 |
| 1 | C206109 SN74LVC2G00DCUR | VSSOP-8_2.3x2mm_P0.5mm | U102 |
| 1 | C2624 IRFR5305 | TO-252-3_TabPin2 | Q90 |
| 1 | Notaus-Ruhestrom | PinHeader_1x04_P2.54mm_Vertical | J3 |
| 1 | C395868 Motor-Klemme | TerminalBlock_Phoenix_MKDS-3-2-5.08_1x02_P5.08mm_Horizontal | J5 |
| 1 | C474892 Versorgung Eingang | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J90 |
| 1 | Randpads GPIO, unbestueckt (SMD-Loetpad, Rueckseite) | Randpad_Reihe_1x18 | J95 |
| 1 | Randpads Versorgung: 2x 3V3 + 2x GND, unbestueckt (SMD-Loetpad, Rueckseite) | Randpad_Reihe_1x04 | J96 |
| 1 | Stapelstecker links, Pico-Pins 1..20 (Buchse) | PinSocket_1x20_P2.54mm_Vertical | J100 |
| 1 | Kettenstecker, Buchse oben (SMD) | PinSocket_1x02_P2.54mm_Vertical_SMD_Pin1Left | J101 |
| 1 | Kettenstecker, Stift unten (SMD) | PinHeader_1x02_P2.54mm_Vertical_SMD_Pin1Left | J102 |
| 1 | Leistungsstecker, Buchse oben (SMD) | PinSocket_2x02_P2.54mm_Vertical_SMD | J103 |
| 1 | Leistungsstecker, Stift unten (SMD) | PinHeader_2x02_P2.54mm_Vertical_SMD | J104 |
| 1 | Stapelstecker rechts, Pico-Pins 21..40 (Buchse) | PinSocket_1x20_P2.54mm_Vertical | J105 |
Show 19 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | M3 | H1, H2, H3, H4 | |
| 1 | C340696 SMCJ30A | D_SMC | D90 |
| 1 | C16237 SS36C | D_SMC | D91 |
| 6 | C49678 0.1u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C9, C11, C13, C14, C15, C16 |
| 1 | 0.022u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C10 |
| 4 | C49678 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C17, C18, C19, C100 |
| 1 | C45078 220u | CP_Radial_D8.0mm_P3.50mm | C90 |
| 1 | C45783 22u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C91 |
| 1 | C28323 1000n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C101 |
| 1 | 1.3k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5 |
| 3 | C17408 0.1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7, R8, R9 |
| 1 | 4.7k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R10 |
| 4 | C17414 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R13, R15, R90, R91 |
| 4 | C26032 3.3k | R_1206_3216Metric | R16, R17, R18, R19 |
| 2 | C17673 4.7k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R20, R21 |
| 1 | C17798 Kennwiderstand (Modultyp) | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R100 |
| 1 | C17477 Kennwiderstand (Modultyp) | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R101 |
| 1 | C149504 100k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R102 |
| 2 | C17414 10000 (ID_OBEN) | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R104, R105 |
Motormodul design files
The KiCad project lives in the Meo98/picostack repository on GitHub; these links point at the commit this page was built from.
Motormodul: common questions
What microcontroller does the Motormodul use?
The Motormodul is built around the C5456198, from the STM32 family.
How big is the Motormodul PCB?
The Motormodul measures 75 × 65 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Motormodul?
63 components, from 39 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Motormodul design files?
From the Meo98/picostack repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Motormodul design in my own project?
Yes, under the terms of its GPL-3.0 license, which Meo98 chose for the repository.
Can I test firmware for the Motormodul without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
