Stlinkv2-clone
About the Stlinkv2-clone PCB

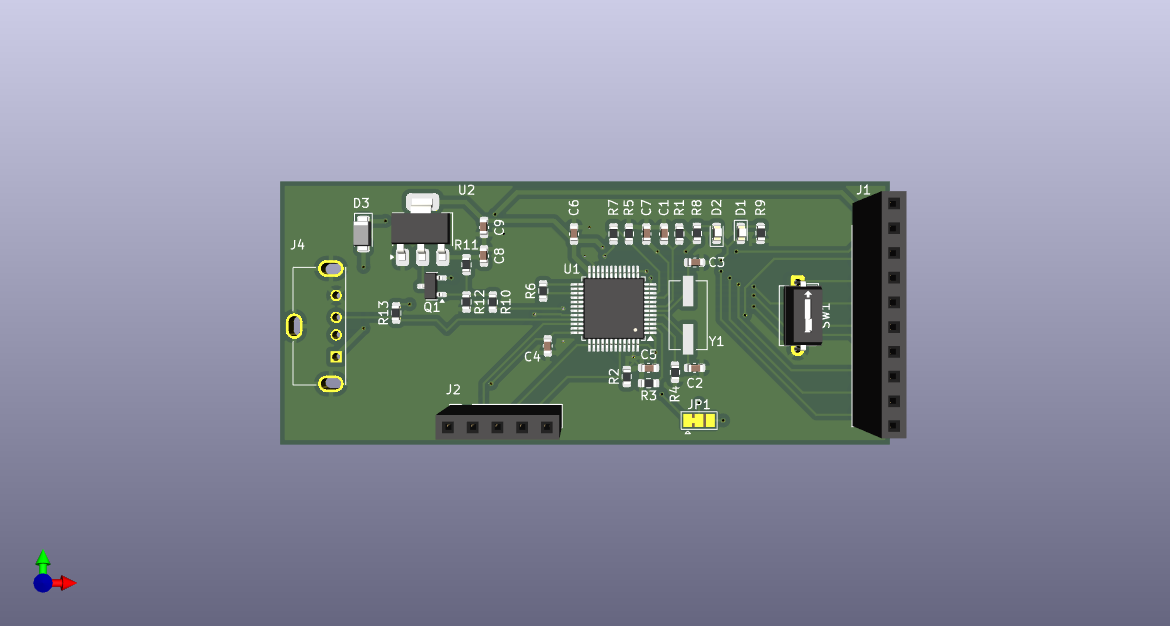

Stlinkv2-clone is an open source STM32 PCB design by MertCubuk, published on GitHub. It is a 2-layer board measuring 69.5 × 30 mm, with 33 components from 23 distinct parts.
Its main chip is the STM32F103CBTx, from the STM32 family. Other key parts include the LD1117S33TR_SOT223. By type, the board carries 13 resistors, 9 capacitors, 3 connectors, 3 diodes, 2 ICs and 1 transistor.
From the project
Prototip amaçlı geliştirilmiş ST-Link V2 Clone tasarımı.
STM32 tabanlı bir ST-Link V2 programlayıcı kart tasarımıdır. Projede amaç, USB–SWD arayüzünü stabilize edecek şekilde hat eşitlemesi yapılmış, üretime uygun iki katmanlı bir PCB ortaya çıkarmaktır.
- Mikrodenetleyici: STM32F103C8T6 - Bağlantı: USB FS (12 Mbps), D+ / D− diferansiyel hat eş uzunluklu - Besleme: 5V → 3.3V LDO regülatör - Koruma: TVS diyot ile ESD koruması - Arabirim: SWD, UART pin header (JTAG alternatifi) - Katman sayısı: 2 - Minimum iz kalınlığı: 0.25 mm - Minimum via boyutu: 0.3 / 0.6 mm - PCB boyutu: Yaklaşık 70.75 × 30 mm - DRC: Hatasız (clearance & unconnected 0)
Main components on the Stlinkv2-clone
Stlinkv2-clone bill of materials (BOM)
33 components, 23 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F103CBTx | LQFP-48_7x7mm_P0.5mm | U1 |
| 1 | LD1117S33TR_SOT223 | SOT-223-3_TabPin2 | U2 |
| 1 | BC849 | SOT-23 | Q1 |
| 1 | Crystal | Crystal_SMD_ECS_CSM3X-2Pin_7.6x4.1mm | Y1 |
| 1 | Conn_01x10_Pin | PinSocket_1x10_P2.54mm_Vertical | J1 |
| 1 | Conn_01x05_Pin | PinSocket_1x05_P2.54mm_Vertical | J2 |
| 1 | USB_A | USB_A_Molex_105057_Vertical | J4 |
| 1 | SW_SPST | SW_DIP_SPSTx01_Slide_6.7x4.1mm_W7.62mm_P2.54mm_LowProfile | SW1 |
| 1 | RED | LED_0603_1608Metric | D1 |
| 1 | BLUE | LED_0603_1608Metric | D2 |
| 1 | BZD27Cxx | D_SMF | D3 |
| 5 | 100nF | C_0603_1608Metric | C1, C4, C5, C6, C7 |
| 2 | 20pF | C_0603_1608Metric | C2, C3 |
| 2 | 10uF | C_0603_1608Metric | C8, C9 |
| 2 | 100k | R_0603_1608Metric | R1, R2 |
| 2 | 10K | R_0603_1608Metric | R3, R11 |
| 1 | DNP | R_0603_1608Metric | R4 |
| 2 | 4K7 | R_0603_1608Metric | R5, R7 |
| 2 | 100R | R_0603_1608Metric | R6, R10 |
| 1 | 200R | R_0603_1608Metric | R8 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 220R | R_0603_1608Metric | R9 |
| 1 | 39K | R_0603_1608Metric | R12 |
| 1 | 1K5 | R_0603_1608Metric | R13 |
Stlinkv2-clone design files
The KiCad project lives in the MertCubuk/stlinkv2-clone repository on GitHub; these links point at the commit this page was built from.
- Layoutstlinkv2.kicad_pcb
- Schematicstlinkv2.kicad_sch
Stlinkv2-clone: common questions
What microcontroller does the Stlinkv2-clone use?
The Stlinkv2-clone is built around the STM32F103CBTx, from the STM32 family.
How big is the Stlinkv2-clone PCB?
The Stlinkv2-clone measures 69.5 × 30 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Stlinkv2-clone?
33 components, from 23 distinct parts. The full bill of materials is listed on this page.
Where can I download the Stlinkv2-clone design files?
From the MertCubuk/stlinkv2-clone repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Stlinkv2-clone design in my own project?
The repository has no license, so all rights stay with MertCubuk. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Stlinkv2-clone without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
