Canopy PCB layout, top view — open source board by mi3nts

About the Canopy PCB

Canopy is an open source PCB design by mi3nts, published on GitHub under the MIT license. It is a 2-layer board measuring 1 × 0.6 mm, with 28 components from 18 distinct parts.

Other key parts include the AP2112K-3.3. By type, the board carries 9 connectors, 7 capacitors, 6 resistors, 2 jumpers, 1 IC and 1 transistor.

It belongs with the sensors and iot & wireless designs in this gallery.

From the project

Contains firmware for the Community Avian and AirQuality Network for Observing Pollution Year-round(CANOPY)

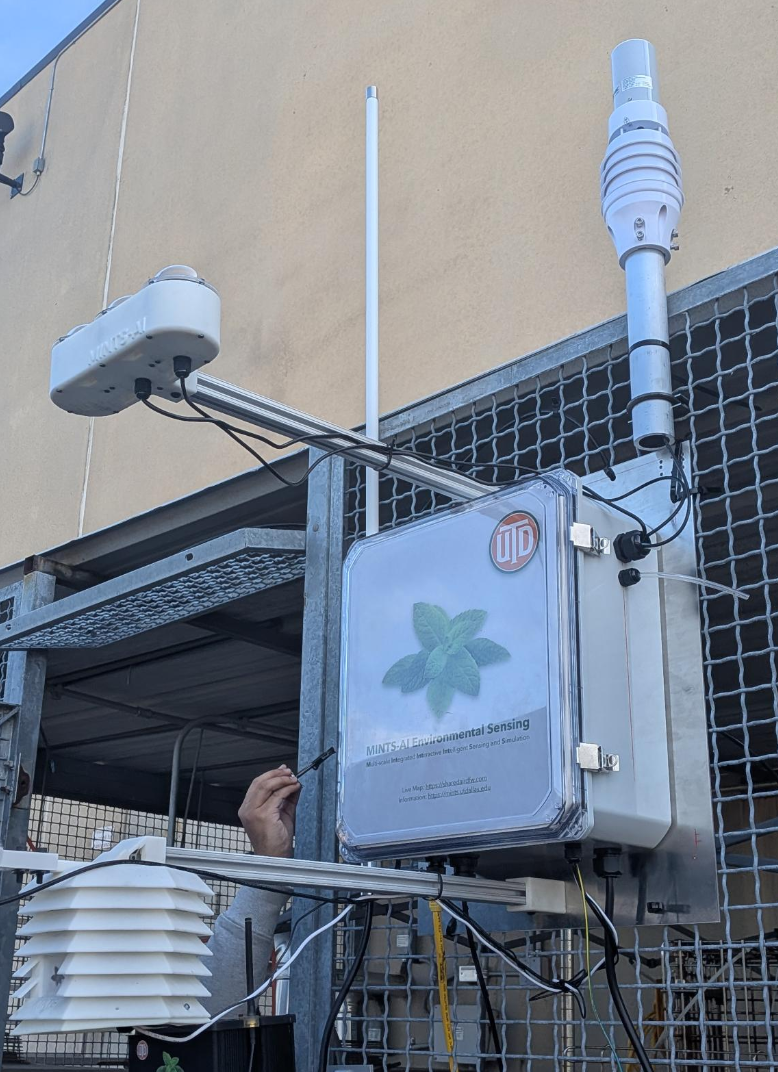

Canopy, from the project README
From the project README

Main components on the Canopy

AP2112K-3.3

Canopy bill of materials (BOM)

28 components, 18 distinct parts.

QtyPartRefs
1
AP2112K-3.3
U1
1
BSS138
Q1
1
GPIO
J1
4
Qwiic_Vertical
J2, J4, J6, j9
1
679305124022
J3
1
M20-7830542
J5
1
5013310607
J7
1
10132328-10011LF
J11
2
~
JP2, JP3
1
AB11AH-FC
S1
1
WS2812B_5050
D1
3
0.1uF
C1, C5, C6
3
10uF
C2, C3, C4
1
EEV107M010S9GAA
C7
3
10k
R1, R2, R5
1
RC0603FR-075K1L
R6
1
5.1k
R7
1
RC0603FR-07330RL
R8

Canopy design files

The KiCad project lives in the mi3nts/canopy repository on GitHub; these links point at the commit this page was built from.

Canopy: common questions

How big is the Canopy PCB?

The Canopy measures 1 × 0.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Canopy?

28 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the Canopy design files?

From the mi3nts/canopy repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Canopy design in my own project?

Yes, under the terms of its MIT license, which mi3nts chose for the repository.
