michalgluszak·ProtoGuitarPedalBoard

ProtoGuitarPedalBoard PCB layout, top view — open source board by michalgluszak

About the ProtoGuitarPedalBoard PCB

ProtoGuitarPedalBoard is an open source PCB design by michalgluszak, published on GitHub. It is a 2-layer board measuring 220 × 91.3 mm, with 21 components from 12 distinct parts.

Other key parts include the Bread Board. By type, the board carries 3 connectors, 2 diodes, 2 resistors, 1 IC and 1 switch.

It belongs with the audio designs in this gallery.

From the project

The Proto-Guitar Pedal Board is a universal hardware platform designed specifically for comfortable prototyping and testing of custom guitar effects.

The Proto-Guitar Pedal Board is a universal hardware platform designed specifically for comfortable prototyping and testing of custom guitar effects.

This project was born from my passion for music electronics. My first experience with KiCad was making a clone of the famous ProCo RAT pedal. I enjoyed this process so much that I decided to go a step further and start designing my own circuits at home. Instead of soldering connectors and potentiometers every time, I created a dedicated motherboard that has all the necessary peripherals integrated. Thanks to this, I can focus only on designing…

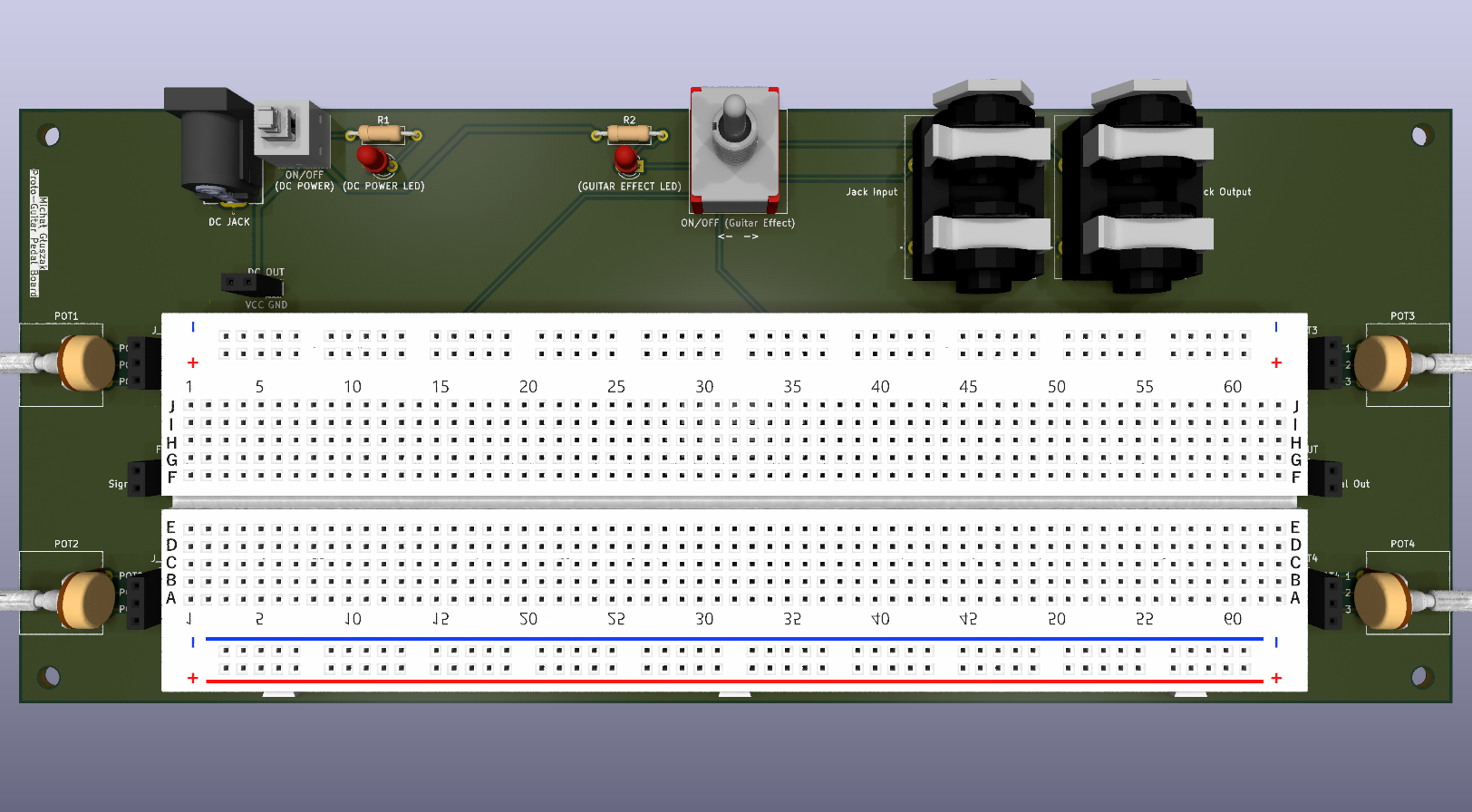

ProtoGuitarPedalBoard, from the project README
From the project README

Main components on the ProtoGuitarPedalBoard

Bread Board

ProtoGuitarPedalBoard bill of materials (BOM)

21 components, 12 distinct parts.

QtyPartRefs
1
Bread Board
U1
1
DC_INPUT
J1
1
FX_IN
J2
1
FX_OUT
J3
1
Conn_01x02
J_DC_Power1
4
Conn_01x03
J_POT1, J_POT2, J_POT3, J_POT4
2
CL13106G
Jack_IN1, Jack_OUT1
4
R_Pot
POT1, POT2, POT3, POT4
1
TL2285EE
S1_Push_Button1
1
~
SW_3PDT_ToggleBtn1
2
LED
D1_Green_LED1, D2_Red_LED1
2
4.7K
R1, R2

ProtoGuitarPedalBoard design files

The KiCad project lives in the michalgluszak/ProtoGuitarPedalBoard repository on GitHub; these links point at the commit this page was built from.

ProtoGuitarPedalBoard: common questions

How big is the ProtoGuitarPedalBoard PCB?

The ProtoGuitarPedalBoard measures 220 × 91.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ProtoGuitarPedalBoard?

21 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the ProtoGuitarPedalBoard design files?

From the michalgluszak/ProtoGuitarPedalBoard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ProtoGuitarPedalBoard design in my own project?

The repository has no license, so all rights stay with michalgluszak. Use it as a reference, and ask the author before reusing the design.
