PY32F002 ESSOP10 minimal board
About the PY32F002 ESSOP10 minimal board
PY32F002 ESSOP10 minimal board is an open source PCB design by michpro, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 11.2 × 16.3 mm, with 5 components from 5 distinct parts.
Other key parts include the PY32F002AA15M. By type, the board carries 2 capacitors, 1 IC, 1 diode and 1 resistor.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Puya PY32F002A ARM M0+ minimal development board (ESSOP10 package)

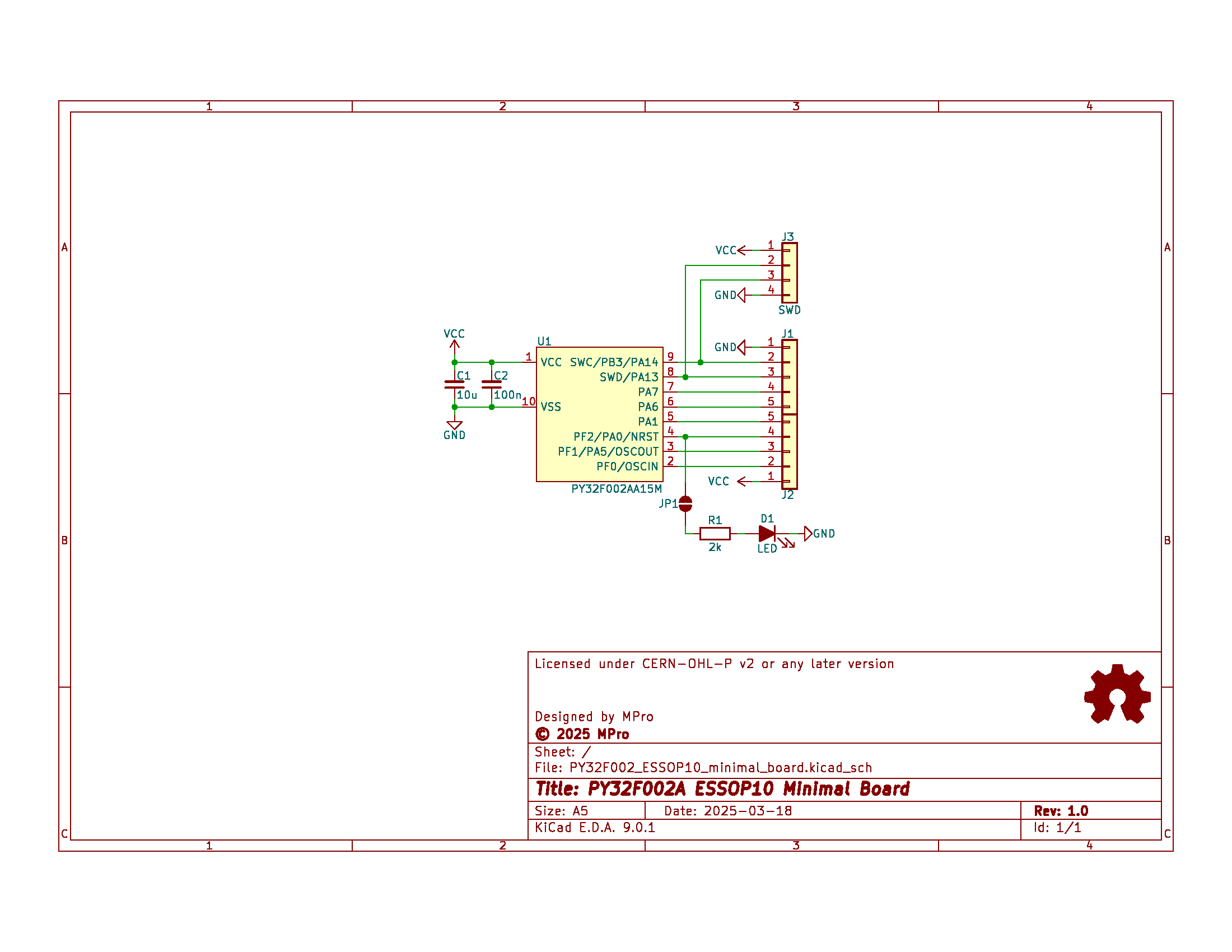

- PY32F002A ESSOP10 Minimal Board - Overview - Features - Software - Schematic diagram - Module visualisation - Assembly - Production files - Reporting bugs - License - Support
This project is released under CERN Open Hardware Licence Version 2 - Permissive.
Main components on the PY32F002 ESSOP10 minimal board
PY32F002 ESSOP10 minimal board bill of materials (BOM)
5 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PY32F002AA15M | SSOP-10-1EP_3.9x4.9mm_P1mm_EP2.1x3.3mm | U1 |
| 1 | LED | LED_0603_1608Metric | D1 |
| 1 | 10U 10u | C_0402_1005Metric | C1 |
| 1 | 100N 100n | C_0402_1005Metric | C2 |
| 1 | 2k | R_0402_1005Metric | R1 |
PY32F002 ESSOP10 minimal board design files
The KiCad project lives in the michpro/PY32F002_ESSOP10_minimal_board repository on GitHub; these links point at the commit this page was built from.
PY32F002 ESSOP10 minimal board: common questions
How big is the PY32F002 ESSOP10 minimal board?
The PY32F002 ESSOP10 minimal board measures 11.2 × 16.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PY32F002 ESSOP10 minimal board?
5 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PY32F002 ESSOP10 minimal board design files?
From the michpro/PY32F002_ESSOP10_minimal_board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the PY32F002 ESSOP10 minimal board design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which michpro chose for the repository.
