RPi Zero pHat Template

mikelawrence·RPi_Zero_pHat_Template

RPi Zero pHat Template PCB layout, top view — open source board by mikelawrence
Simulate this board

About the RPi Zero pHat Template PCB

RPi Zero pHat Template is an open source PCB design by mikelawrence, published on GitHub under the MIT license. It is a 2-layer board measuring 65 × 30.5 mm, with 2 components from 2 distinct parts.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

KiCad template for a Raspberry Pi Zero sized uHat (micro-Hat).

This a KiCad 5.0.0 template for a Raspberry Pi Zero or Raspberry Pi Zero W sized uHat. It is based on the Raspberry Pi B+ Hat template from Xess Corp. They did all the hard work here.

Raspberry Pi Foundation has finally named these Raspberry Pi Zero sized hats which some called pHats. The new name is Micro-Hat or uHat. They also released a mechanical specification for them here. Luckily these specifications exactly match the template. Note the new POE keepout area is not in this template. You will have to keep track of it yourself.

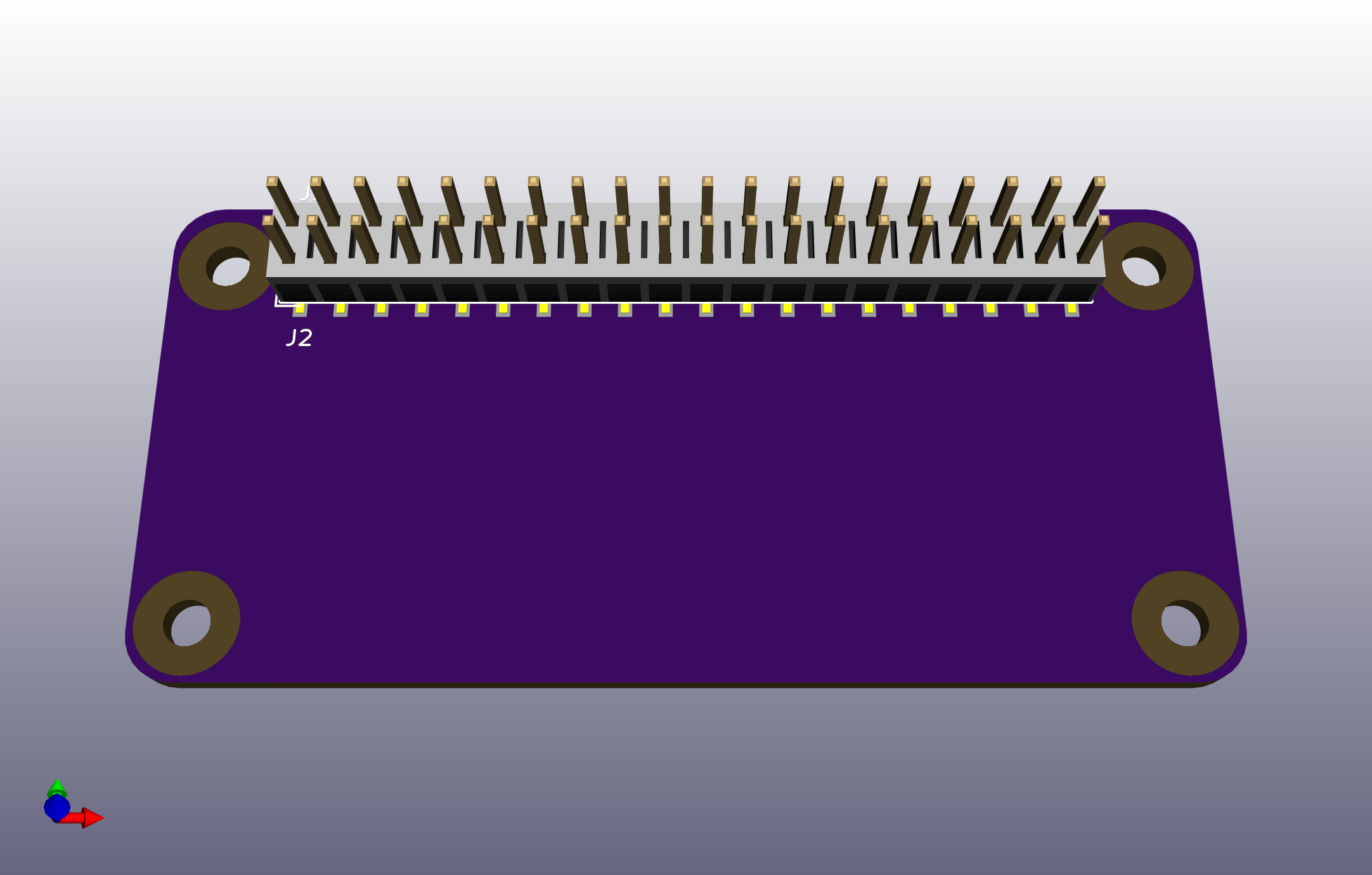

RPi Zero pHat Template, from the project README
From the project README

RPi Zero pHat Template bill of materials (BOM)

2 components, 2 distinct parts.

QtyPartRefs
1
RPi_GPIO
J1
1
RPi_GPIO
J2

RPi Zero pHat Template design files

The KiCad project lives in the mikelawrence/RPi_Zero_pHat_Template repository on GitHub; these links point at the commit this page was built from.

RPi Zero pHat Template: common questions

How big is the RPi Zero pHat Template PCB?

The RPi Zero pHat Template measures 65 × 30.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RPi Zero pHat Template?

2 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the RPi Zero pHat Template design files?

From the mikelawrence/RPi_Zero_pHat_Template repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the RPi Zero pHat Template design in my own project?

Yes, under the terms of its MIT license, which mikelawrence chose for the repository.
