MurPhySDR
About the MurPhySDR PCB
MurPhySDR is an open source FPGA PCB design by MillePoels, published on GitHub under the GPL-3.0 license. It is a 8-layer board measuring 89 × 65 mm, with 216 components from 48 distinct parts.
Its main chip is the XC7A50T-2FTG256I, from the FPGA family. Other key parts include the LMZ30604RKGT, ADP1755ACPZ-R7, MX25L25645GZNI-08G, ESD7016MUTAG and FT601Q-B-T. By type, the board carries 147 capacitors, 36 resistors, 11 ICs, 10 inductors, 5 connectors and 3 transformers.
It belongs with the rf & radio designs in this gallery.
From the project

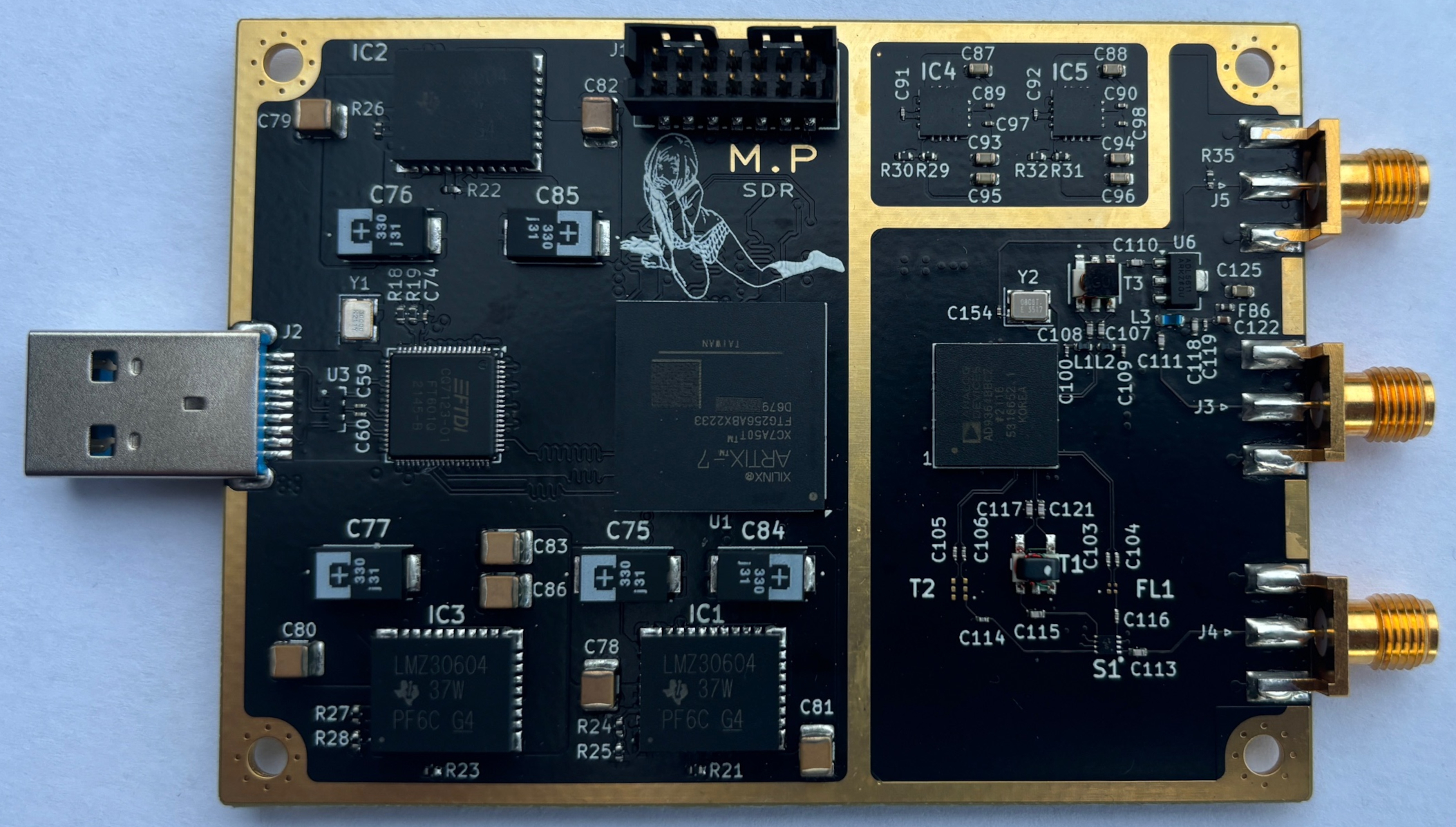

MurPhySDR is an open source software-defined radio platform based on the AD9364 transceiver IC.
MurPhySDR is an open source software-defined radio platform based on the AD9364 transceiver IC.
- AD9364 1X1 transceiver IC covering 70MHz-6GHz - XC7A50T-2FTG256I Xilinx Artix-7 FPGA - FT601Q USB 3.0 interface IC - JTAG connector - MX25L25645GZNI-08G 256Mb flash - ADL5611 +22dB TX gain block
hardware/ gerber-files/ - Production gerber files kicad/ - Kicad project directory
Main components on the MurPhySDR
MurPhySDR bill of materials (BOM)
216 components, 48 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | LMZ30604RKGT | LMZ30604RKGT | IC1, IC2, IC3 |
| 2 | ADP1755ACPZ-R7 | QFN65P400X400X100-17N | IC4, IC5 |
| 1 | XC7A50T-2FTG256I | Xilinx_FTG256 | U1 |
| 1 | MX25L25645GZNI-08G MX25L25645GZNI-08G-CUSTOM | WSON8_6X5_MAC | U2 |
| 1 | ESD7016MUTAG ESD7016 | UDFN8_3P3X1_517CB_ONS | U3 |
| 1 | FT601Q-B-T FT601Q | QFN-76-1EP_9x9mm_P0.4mm_EP5.81x6.31mm | U4 |
| 1 | AD9364BBCZ AD9364 | AD9364 | U5 |
| 1 | ADL5611ARKZ-R7 ADL5611 | SOT-89-3 | U6 |
| 1 | CX3225SB30000D0FPLCC 30MHz crystal | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | X1E0000210808 X1E0000210808 40MHz | Crystal_SMD_SeikoEpson_TSX3225-4Pin_3.2x2.5mm | Y2 |
| 1 | 878321420 | CONN_87832-1420_MOL | J1 |
| 1 | U237-091N-4BLVS10-1 USB3_A | USB3.0-A-SMD_U237-091N-4BLVS10-1 | J2 |
| 3 | 0732511150 Conn_Coaxial | SMA_Molex_73251-1153_EdgeMount_Horizontal | J3, J4, J5 |
| 1 | BD3150N50100AHF BD3150N50100AHF-CUSTOM | BD3150N50100AHF | FL1 |
| 1 | SKY13317-373LF | SON40P155X155X50-9N_(SKY13317-373LF) | S1 |
| 1 | TC1-1-13MA+ TC1-1-13M+ | TC1113MA | T1 |
| 1 | BD1631J50100AHF BD1631J50100AHF-CUSTOM | BD1631J50100AHF | T2 |
| 1 | TCM1-63AX+ | TCM1-63AX+ | T3 |
| 6 | MPZ1005S221ET000 220R, 0.9A | L_0402_1005Metric | FB2, FB3, FB5, FB6, FB7, FB8 |
| 1 | MPZ2012S601AT000 600R, 2A | L_0805_2012Metric | FB4 |
Show 28 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | LQW15CNR33J1ZD 330nH | L_0402_1005Metric | L1, L2 |
| 1 | LQW18AN43NG00D 43nH | L_0603_1608Metric | L3 |
| 14 | GRM32ER71A476KE15L 47uF | C_1210_3225Metric | C1, C2, C3, C6, C18, C24, C25, C78 +6 |
| 13 | GRM155R60J475ME87D 4.7uF, 6.3V | C_0402_1005Metric | C4, C5, C7, C8, C9, C12, C26, C27 +5 |
| 23 | GRM155R61A474KE15D 470nF, 10V | C_0402_1005Metric | C10, C11, C13, C15, C16, C19, C20, C21 +15 |
| 42 | GRM033R60J104KE19D 100nF, 6.3V | C_0201_0603Metric | C47, C48, C56, C57, C58, C59, C60, C61 +34 |
| 13 | GRM188R61A106ME69D 10uF, 10V | C_0603_1608Metric | C49, C50, C51, C87, C88, C93, C94, C95 +5 |
| 12 | GRM155Z71A105KE01D 1uF, 10V | C_0402_1005Metric | C52, C53, C55, C62, C67, C71, C122, C140 +4 |
| 2 | GRM1555C1E100JA01D 10pF, 25V | C_0402_1005Metric | C54, C64 |
| 5 | 6TPE330MFL 330uF | 6TPE330MFL | C75, C76, C77, C84, C85 |
| 8 | GRM0335C1H102JE01D 1nF, 50V | C_0201_0603Metric | C91, C92, C100, C109, C119, C120, C123, C124 |
| 3 | GRM0335C1H4R7BA01D 4.7pF, 50V | C_0201_0603Metric | C103, C104, C116 |
| 3 | GRM0335C1H220JA01D 22pF, 50V | C_0201_0603Metric | C105, C106, C114 |
| 8 | CBR04C101G3GAC 100pF, 25V RF caps | C_0402_1005Metric | C107, C108, C110, C111, C113, C115, C117, C121 |
| 1 | CC0402JRNPO9BN680 68pF | C_0402_1005Metric | C118 |
| 8 | RC0402FR-074K7L 4k7, 1% | R_0402_1005Metric | R1, R2, R3, R10, R11, R12, R15, R24 |
| 4 | RC0201FR-0715RL 15R, 1% | R_0201_0603Metric | R4, R5, R6, R7 |
| 10 | RT0402BRD0710KL 10k, 0.1% | R_0402_1005Metric | R8, R9, R13, R16, R17, R18, R19, R30 +2 |
| 1 | RT0402BRD071K6L 1k6, 0.1% | R_0402_1005Metric | R14 |
| 1 | AC0402FR-071M2L 1M2, 1% | R_0402_1005Metric | R21 |
| 2 | RC0402FR-07348KL 348k, 1% | R_0402_1005Metric | R22, R23 |
| 2 | RC0402FR-071K15L 1k15, 1% | R_0402_1005Metric | R25, R26 |
| 1 | RC0402FR-07453RL 453R, 1% | R_0402_1005Metric | R27 |
| 1 | RC0402FR-076R04L 6.04R, 1% | R_0402_1005Metric | R28 |
| 2 | RC0402FR-0716KL 16k | R_0402_1005Metric | R29, R31 |
| 2 | RC0402FR-071RL 1R | R_0402_1005Metric | R33, R34 |
| 1 | RC0402FR-0749R9L 49.9R, 1% | R_0402_1005Metric | R35 |
| 1 | RC0402FR-0714K3L 14k3, 1% | R_0402_1005Metric | R37 |
MurPhySDR design files
The KiCad project lives in the MillePoels/MurPhySDR repository on GitHub; these links point at the commit this page was built from.
MurPhySDR: common questions
What microcontroller does the MurPhySDR use?
The MurPhySDR is built around the XC7A50T-2FTG256I, from the FPGA family.
How big is the MurPhySDR PCB?
The MurPhySDR measures 89 × 65 mm, has 8 copper layers and is 1.66 mm thick.
How many components are on the MurPhySDR?
216 components, from 48 distinct parts. The full bill of materials is listed on this page.
Where can I download the MurPhySDR design files?
From the MillePoels/MurPhySDR repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MurPhySDR design in my own project?
Yes, under the terms of its GPL-3.0 license, which MillePoels chose for the repository.
Can I test firmware for the MurPhySDR without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
