GanJing 65 rev 2 hotswap
About the GanJing 65 rev 2 hotswap PCB
GanJing 65 rev 2 hotswap is an open source PCB design by mingzejin11, published on GitHub. It is a 2-layer board measuring 323.9 × 95.3 mm, with 155 components from 19 distinct parts.
Other key parts include the Elite-C. By type, the board carries 79 LEDs, 74 diodes, 1 IC and 1 switch.
It belongs with the displays & leds designs in this gallery.
From the project

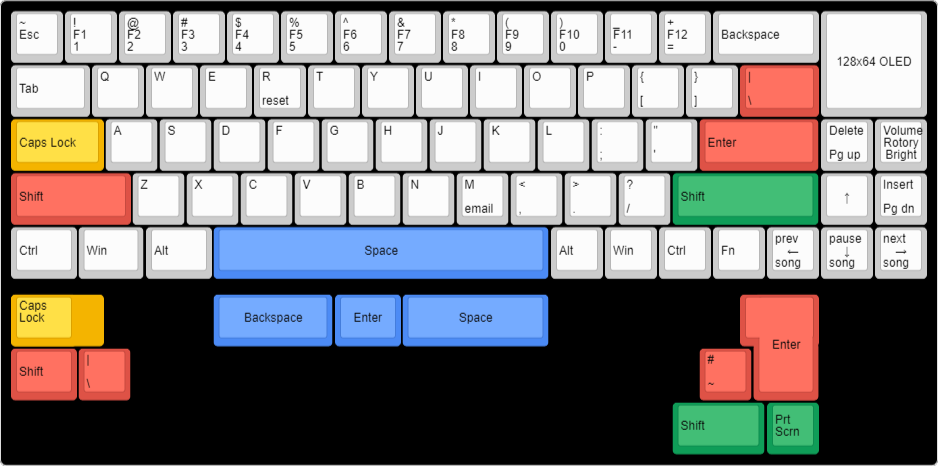

Second revision of the GanJing 65, now featuring the Elite-c and a 128x64 OLED
Main components on the GanJing 65 rev 2 hotswap
GanJing 65 rev 2 hotswap bill of materials (BOM)
155 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Elite-C | Elite-C | U1 |
| 1 | EC11_rotary_encoder | EC11_rotary_encoder | SW1 |
| 1 | SSD1306_128x64_OLED | SSD1306_128x64_OLED | DS1 |
| 14 | MX_1u_no_LED | MX_1u_no_LED_hotswap_flipped_pins | MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +6 |
| 1 | MX_2u_no_LED | MX_2u_no_LED_hotswap | MX14 |
| 46 | MX_1u_no_LED | MX_1u_no_LED_hotswap | MX15, MX17, MX18, MX19, MX20, MX21, MX22, MX23 +38 |
| 1 | MX_1.5u_no_LED | MX_1.5u_no_LED_hotswap | MX16 |
| 1 | MX_1.5u_no_LED | MX_1.5u_no_LED_hotswap_rotated | MX29 |
| 2 | MX_1.75u_no_LED | MX_1.75u_no_LED_hotswap | MX31, MX78 |
| 1 | MX_2.25u_no_LED | MX_2.25u_no_LED_hotswap_rotated_flipped_stabs | MX44 |
| 1 | MX_2.25u_no_LED | MX_2.25u_no_LED_hotswap | MX46 |
| 1 | MX_2.75u_no_LED | MX_2.75u_no_LED_hotswap | MX58 |
| 5 | MX_1.25u_no_LED | MX_1.25u_no_LED_hotswap | MX61, MX62, MX63, MX65, MX77 |
| 1 | MX_2.25u_no_LED_flipped_stabs | MX_2.25u_no_LED_hotswap_flipped_stabs | MX64 |
| 1 | MX_6.25u_no_LED_flipped_stabs | MX_6.25u_no_LED_hotswap_flipped_stabs | MX66 |
| 1 | MX_2.75u_no_LED_flipped_stabs | MX_2.75u_no_LED_hotswap_flipped_stabs | MX67 |
| 1 | MX_1.75u_no_LED | MX_1.75u_stepped_no_LED_hotswap | MX75 |
| 1 | MX_ISO_no_LED_flipped_stabs | MX_ISO_no_LED_hotswap_flipped_stabs | MX76 |
| 74 | 1N4148TR_diode | 1N4148TR_diode | D1, D2, D3, D4, D5, D6, D7, D8 +66 |
GanJing 65 rev 2 hotswap design files
The KiCad project lives in the mingzejin11/GanJing-65-2.0 repository on GitHub; these links point at the commit this page was built from.
GanJing 65 rev 2 hotswap: common questions
How big is the GanJing 65 rev 2 hotswap PCB?
The GanJing 65 rev 2 hotswap measures 323.9 × 95.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the GanJing 65 rev 2 hotswap?
155 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the GanJing 65 rev 2 hotswap design files?
From the mingzejin11/GanJing-65-2.0 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the GanJing 65 rev 2 hotswap design in my own project?
The repository has no license, so all rights stay with mingzejin11. Use it as a reference, and ask the author before reusing the design.
