Non standard type c breakout

minibois·non-standard-type-c-breakout

Non standard type c breakout layout, top view — open source board by minibois

About the Non standard type c breakout

Non standard type c breakout is an open source PCB design by minibois, published on GitHub. It is a 2-layer board measuring 7.6 × 4.8 mm, with 3 components from 2 distinct parts.

By type, the board carries 2 resistors and 1 connector.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

A simple USB Type C breakout board

This daughterboard allows for a USB 2.0 Type C by HRO receptacle to be installed on the opposite side of the Type C pins. This daughterboard was used in a keyboard repair project, so the receptacle could be installed on the keyboard cleanly.

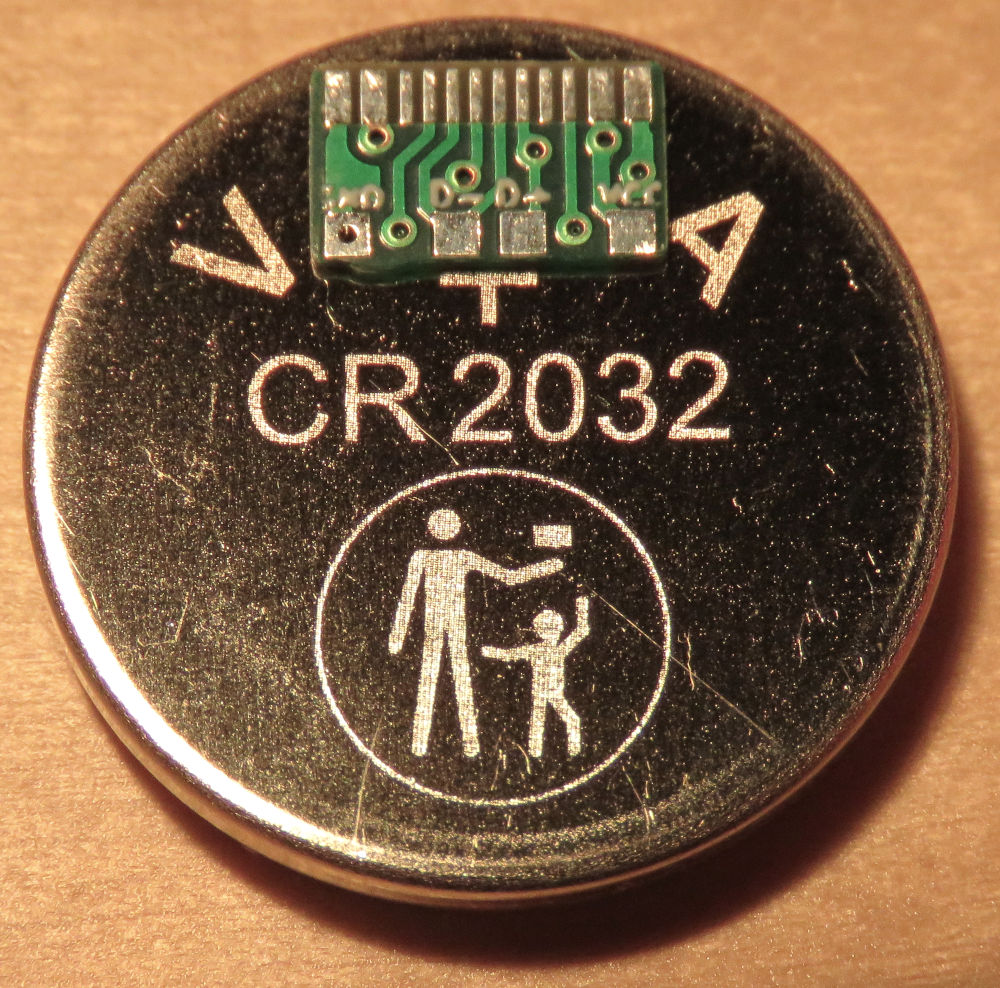

Non standard type c breakout, from the project README
From the project README

Non standard type c breakout bill of materials (BOM)

3 components, 2 distinct parts.

QtyPartRefs
1
TYPE-C-31-M12_13_EDITED
J0
2
5.1k
R0, R1

Non standard type c breakout design files

The KiCad project lives in the minibois/non-standard-type-c-breakout repository on GitHub; these links point at the commit this page was built from.

Non standard type c breakout: common questions

How big is the Non standard type c breakout?

The Non standard type c breakout measures 7.6 × 4.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Non standard type c breakout?

3 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Non standard type c breakout design files?

From the minibois/non-standard-type-c-breakout repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Non standard type c breakout design in my own project?

The repository has no license, so all rights stay with minibois. Use it as a reference, and ask the author before reusing the design.
