VS1163A-breakout layout, top view — open source board by mjhagen

About the VS1163A-breakout

VS1163A-breakout is an open source PCB design by mjhagen, published on GitHub. It is a 2-layer board measuring 42.2 × 42.2 mm, with 29 components from 13 distinct parts.

Other key parts include the VS1163A and MCP1700x-180xxMB. By type, the board carries 19 capacitors, 4 resistors, 3 connectors, 2 ICs and 1 crystal.

It belongs with the dev boards & breakouts and displays & leds designs in this gallery.

From the project

Firmware for a portable DAP using a AVR128DA48 and VS1063 chip.

Firmware for a distraction‑free portable audio player built around AVR128DA48.

No networking. No background services. Boot fast, play audio.

The primary development environment is curiositynano`, which targets the Microchip Curiosity Nano board and uses UPDI for flashing.

Available environments: - curiositynano (Main Development) - Curiosity Nano target with UPDI upload - avr128da48 - generic AVR128DA48 build - curiositynanossd1333minimal - controller smoke test for the SSD1333 panel

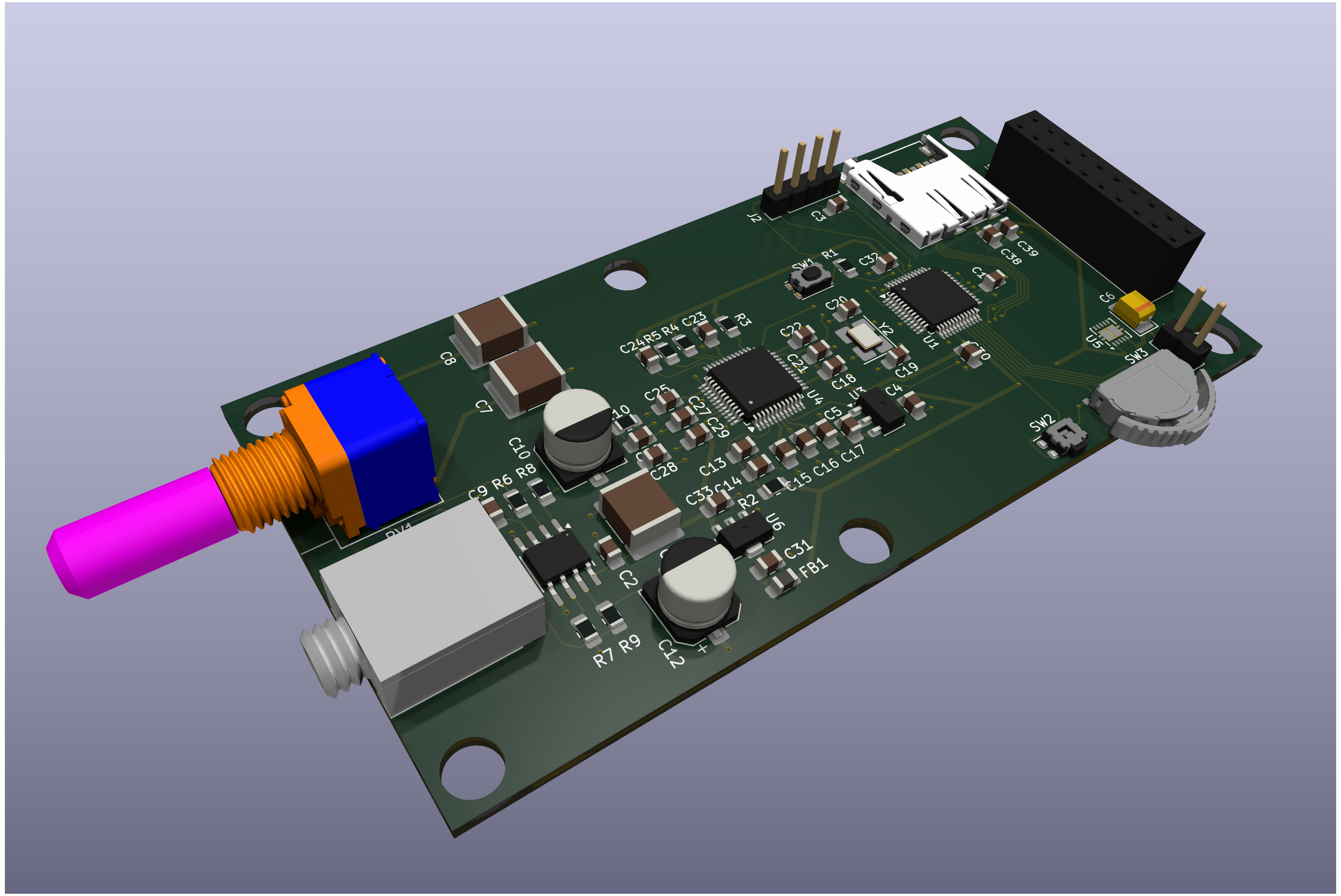

VS1163A-breakout, from the project README
From the project README

Main components on the VS1163A-breakout

VS1163AMCP1700x-180xxMB

VS1163A-breakout bill of materials (BOM)

29 components, 13 distinct parts.

QtyPartRefs
1
VS1163A
U1
1
MCP1700x-180xxMB
U2
1
Crystal_GND3
Y2
1
Conn_01x02
J1
1
Conn_01x08
J2
1
Conn_01x03
J3
1
47 µF 6.3 V
C1
3
1 µF
C2, C3, C5
11
100 nF
C4, C6, C7, C8, C9, C10, C11, C12 +3
2
10 µF
C13, C16
2
18 pF
C18, C19
3
10 kΩ
R1, R2, R3
1
100 kΩ
R4

VS1163A-breakout design files

The KiCad project lives in the mjhagen/dap repository on GitHub; these links point at the commit this page was built from.

VS1163A-breakout: common questions

How big is the VS1163A-breakout?

The VS1163A-breakout measures 42.2 × 42.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the VS1163A-breakout?

29 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the VS1163A-breakout design files?

From the mjhagen/dap repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the VS1163A-breakout design in my own project?

The repository has no license, so all rights stay with mjhagen. Use it as a reference, and ask the author before reusing the design.
