I2CADC01 PCB layout, top view — open source board by mlab-modules

About the I2CADC01 PCB

I2CADC01 is an open source PCB design by mlab-modules, published on GitHub. It is a 2-layer board measuring 30 × 40.1 mm, with 29 components from 17 distinct parts.

Other key parts include the LTC2485. By type, the board carries 9 connectors, 8 capacitors, 6 resistors, 4 diodes, 1 IC and 1 inductor.

It belongs with the sensors designs in this gallery.

From the project

24-bit analog to digital converter with I2C interface

The ADC includes a temperature sensor that can be used to compensate cold-junction temperature. Therefore, this module is suitable for use of temperature measurement by thermocouples.

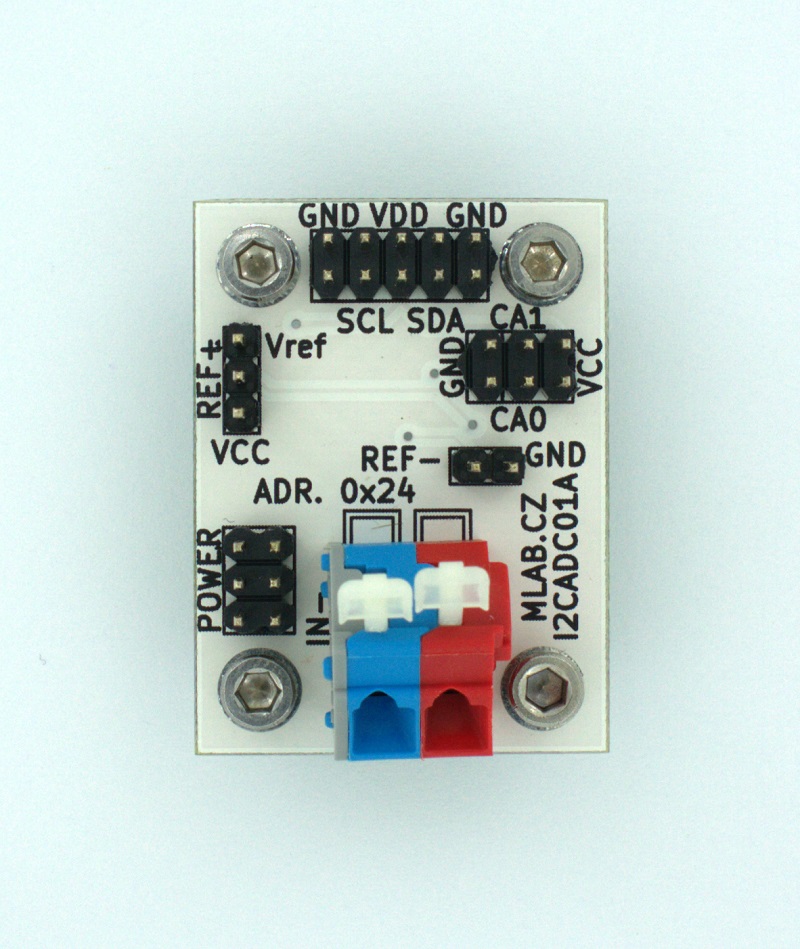

I2CADC01, from the project README
From the project README

Main components on the I2CADC01

LTC2485

I2CADC01 bill of materials (BOM)

29 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LTC2485
U1
1
JUMP_3X2
J1
2
CONN_2
J3, J8
1
CONN_3
J4
2
JUMP2_2x1
J5, J6
1
JUMP_5X2
J7
2
_
P1, P2
1
M4
D1
2
BAT46
D2, D3
1
LM4041-ADJ
LM4041-adj
D4
1
BLM21PG300SN1D
L1
5
100nF
C1, C2, C4, C6, C7
2
10uF
C3, C5
1
22NF
22nF
C8
4
10k
R1, R2, R4, R5
1
3K3
R3
1
0R
R6

I2CADC01 design files

The KiCad project lives in the mlab-modules/I2CADC01 repository on GitHub; these links point at the commit this page was built from.

I2CADC01: common questions

How big is the I2CADC01 PCB?

The I2CADC01 measures 30 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the I2CADC01?

29 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the I2CADC01 design files?

From the mlab-modules/I2CADC01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the I2CADC01 design in my own project?

The repository has no license, so all rights stay with mlab-modules. Use it as a reference, and ask the author before reusing the design.
