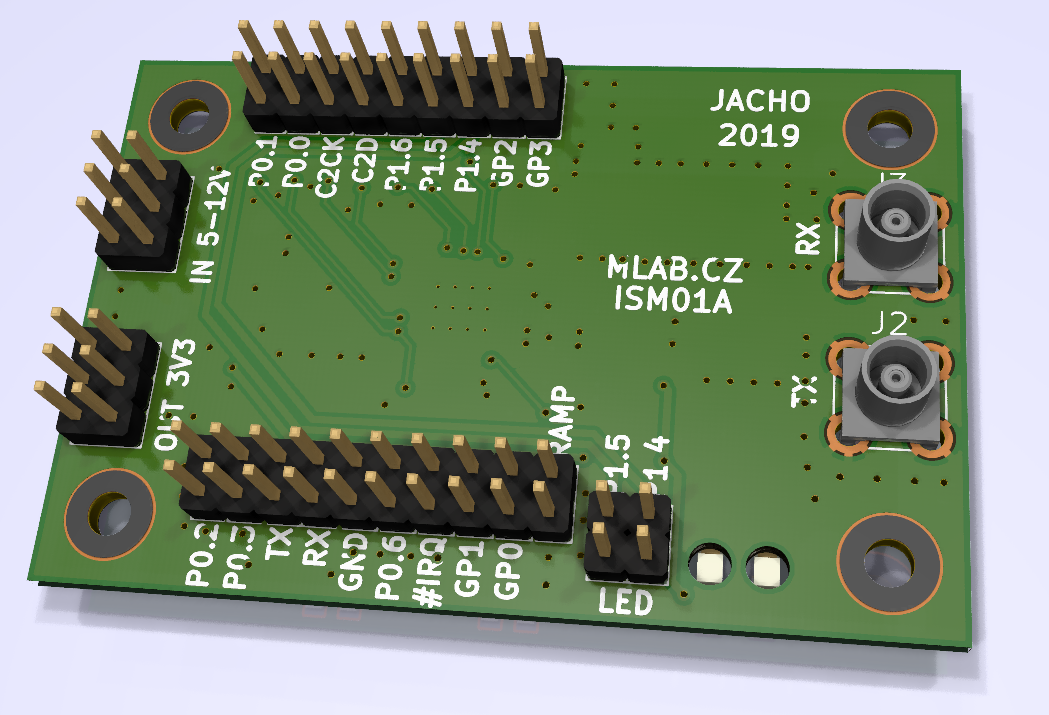

About the ISM01 PCB
ISM01 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 60.5 × 40.1 mm, with 94 components from 32 distinct parts.
Other key parts include the LM1117-3V3 and SI1060-A-GM. By type, the board carries 27 capacitors, 25 connectors, 23 resistors, 10 inductors, 3 diodes and 2 ICs.
It belongs with the rf & radio, iot & wireless and sensors designs in this gallery.
From the project
High-performance wireless transceiver, ideal for remote control, data links, and sensor networks.
The ISM01 is a high-performance wireless transceiver designed for long-distance data transmission. The module is based on the Si4463 chip from Silicon Labs, which is part of the EZRadioPRO family. With its wide frequency range and output power, it is ideal for robust and reliable wireless communication applications.
ISM01A can operate on the open 433 or 868 MHz frequencies, which are popular in many applications.

Main components on the ISM01
ISM01 bill of materials (BOM)
94 components, 32 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM1117-3V3 LM1117 | SOT-223 | U1 |
| 1 | SI1060-A-GM Si1060-A-GM | QFN-36-1EP_5x6mm_P0.5mm_EP3.6x4.1mm_ThermalVias | U2 |
| 2 | BC817 | SOT-23 | Q1, Q2 |
| 1 | ABS07-120-32.768KHZ | ABS07 | Y1 |
| 1 | ABM3B-30.000MHZ-10-1-U-T | Crystal_SMD_Abracon_ABM3B-4Pin_5.0x3.2mm | Y2 |
| 2 | JUMP_3X2 | Straight_2x03 | J1, J4 |
| 2 | SMA | SMA6251A13G50 | J2, J3 |
| 19 | HEADER_2x01_PARALLEL | Straight_2x01 | J6, J7, J8, J9, J10, J11, J12, J13 +11 |
| 2 | HEADER_1x02 | Straight_1x02 | J24, J25 |
| 1 | M4 | Diode-MiniMELF_Standard | D1 |
| 1 | RED | LED_1206 | D2 |
| 1 | GREEN | LED_1206 | D3 |
| 2 | 0R | SMD-0805 | L1, L2 |
| 4 | 18nH | SMD-0805 | L3, L4, L5, L6 |
| 1 | 39NH 39nH | SMD-0805 | L7 |
| 1 | 220NH 220nH | SMD-0805 | L8 |
| 2 | 56nH | SMD-0805 | L9, L10 |
| 5 | 10uF | SMD-0805 | C1, C3, C5, C18, C20 |
| 3 | 100nF | SMD-0805 | C2, C16, C19 |
| 2 | 6.8pf | SMD-0805 | C4, C6 |
Show 12 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 15pF | SMD-0805 | C7, C8 |
| 3 | 8,2pF | SMD-0805 | C9, C10, C11 |
| 1 | 2.7PF 2.7pF | SMD-0805 | C12 |
| 1 | 5.1PF 5.1pF | SMD-0805 | C13 |
| 7 | 10nF | SMD-0805 | C14, C22, C23, C25, C26, C27, C28 |
| 1 | 33PF 33pF | SMD-0805 | C15 |
| 1 | 100PF 100pF | SMD-0805 | C17 |
| 1 | NFM21PC105 | FIR1 | C21 |
| 2 | 0R | SMD-0805 | R1, R21 |
| 18 | 33R | SMD-0805 | R2, R3, R4, R5, R6, R7, R8, R9 +10 |
| 1 | 1k | SMD-0805 | R20 |
| 2 | 150R | SMD-0805 | R22, R23 |
ISM01 design files
The KiCad project lives in the mlab-modules/ISM01 repository on GitHub; these links point at the commit this page was built from.
ISM01: common questions
How big is the ISM01 PCB?
The ISM01 measures 60.5 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ISM01?
94 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ISM01 design files?
From the mlab-modules/ISM01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ISM01 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
