42outer bootcamp elec PCB layout, top view — open source AVR/Arduino board by Molasz

About the 42outer bootcamp elec PCB

42outer bootcamp elec is an open source AVR/Arduino PCB design by Molasz, published on GitHub. It is a 2-layer board measuring 23.7 × 31.7 mm, with 17 components from 12 distinct parts.

Its main chip is the ATmega328P-A, from the AVR/Arduino family. By type, the board carries 6 capacitors, 3 connectors, 3 resistors, 2 diodes, 1 IC and 1 crystal.

From the project

This project has been created as part of the 42 curriculum by molasz-a.

This project has been created as part of the 42 curriculum by molasz-a.

This repository contains the schematic, PCB layout and custom symbol and footprint for each component for a custom-designed microcontroller board based on the ATmega328P. The board was designed using KiCad 9.0.

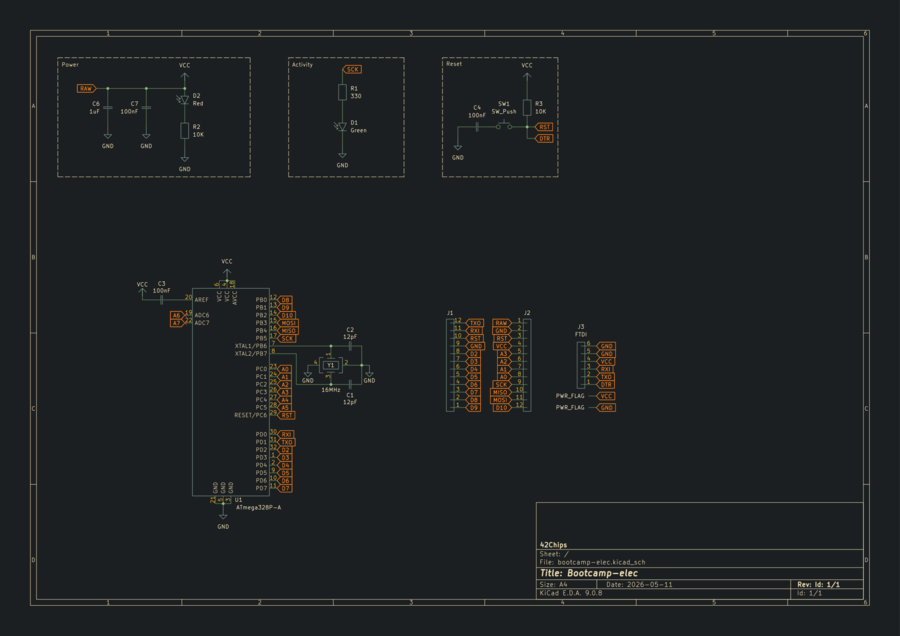

42outer bootcamp elec, from the project README
From the project README

Main components on the 42outer bootcamp elec

ATmega328P-A

42outer bootcamp elec bill of materials (BOM)

17 components, 12 distinct parts.

QtyPartRefs
1
ATmega328P-A
U1
1
16MHz
Y1
2
~
J1, J2
1
FTDI
J3
1
SW_Push
SW1
1
Green
D1
1
Red
D2
2
12pF
C1, C2
3
100nF
C3, C4, C7
1
1uF
C6
1
330
R1
2
10K
R2, R3

42outer bootcamp elec design files

The KiCad project lives in the Molasz/42outer-bootcamp-elec repository on GitHub; these links point at the commit this page was built from.

42outer bootcamp elec: common questions

What microcontroller does the 42outer bootcamp elec use?

The 42outer bootcamp elec is built around the ATmega328P-A, from the AVR/Arduino family.

How big is the 42outer bootcamp elec PCB?

The 42outer bootcamp elec measures 23.7 × 31.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 42outer bootcamp elec?

17 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the 42outer bootcamp elec design files?

From the Molasz/42outer-bootcamp-elec repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 42outer bootcamp elec design in my own project?

The repository has no license, so all rights stay with Molasz. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 42outer bootcamp elec without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
