2020-2021 Pose Rup

MOSH-Insa-Toulouse·2020-2021_Pose_Rup·Gas_sensor_shield/Gas_sensor_shield.kicad_pcb

2020-2021 Pose Rup PCB layout, top view — open source AVR/Arduino board by MOSH-Insa-Toulouse

About the 2020-2021 Pose Rup PCB

2020-2021 Pose Rup is an open source AVR/Arduino PCB design by MOSH-Insa-Toulouse, published on GitHub under the MIT license. It is a 2-layer board measuring 68.6 × 53.3 mm, with 27 components from 18 distinct parts.

Its main chip is the Arduino_1pin, from the AVR/Arduino family. By type, the board carries 11 connectors, 9 resistors, 4 capacitors, 2 transistors and 1 diode.

It belongs with the dev boards & breakouts and sensors designs in this gallery.

From the project

Shield comportant un capteur de gaz développé à l'AIME pour la Arduino UNO

- [x] Gas sensor réalisé à l'AIME - [x] Capteur de température pour mesurer la température opérationelle du capteur de gas - [x] Circuit de traitement et amplification du signal du capteur de gaz - [x] LED rouge pour prévenir l'utilisateur d'un danger / mauvaise qualité de l'air - [x] Socket pour venir fixer la carte intégrant le module LoRa et son antenne - [x] 2 transistors NPN permettant d'allumer ou d'éteindre les alimentations du circuit capteur (entre 2 prises de mesure) en utilisant la pin 3 de l'Arduino

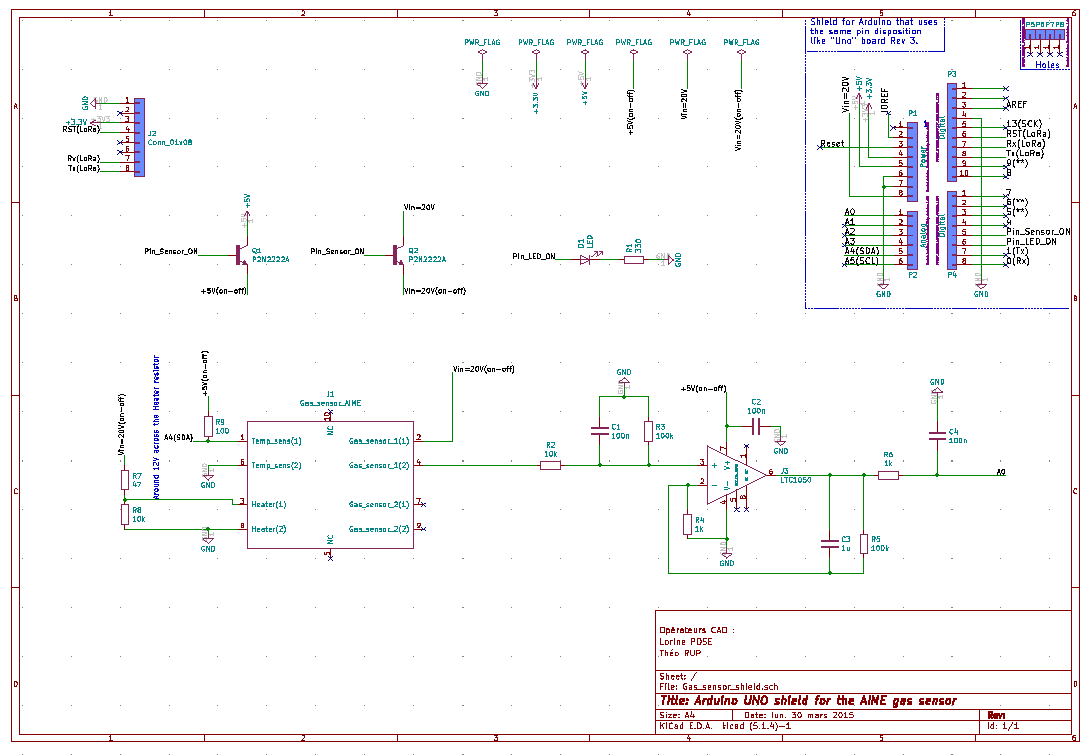

2020-2021 Pose Rup, from the project README
From the project README

2020-2021 Pose Rup bill of materials (BOM)

27 components, 18 distinct parts.

QtyPartRefs
2
P2N2222A
Q1, Q2
1
Gas_sensor_AIME
J1
1
Conn_01x08
J2
1
LTC1050
J3
1
Power
P1
1
Analog
P2
1
Digital
P3
1
Digital
P4
4
CONN_01X01
P5, P6, P7, P8
1
LED
D1
3
100n
C1, C2, C4
1
1u
C3
1
330
R1
2
10k
R2, R8
2
100k
R3, R5
2
1k
R4, R6
1
47
R7
1
100
R9

2020-2021 Pose Rup design files

The KiCad project lives in the MOSH-Insa-Toulouse/2020-2021_Pose_Rup repository on GitHub; these links point at the commit this page was built from.

2020-2021 Pose Rup: common questions

What microcontroller does the 2020-2021 Pose Rup use?

The 2020-2021 Pose Rup is built around the Arduino_1pin, from the AVR/Arduino family.

How big is the 2020-2021 Pose Rup PCB?

The 2020-2021 Pose Rup measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 2020-2021 Pose Rup?

27 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the 2020-2021 Pose Rup design files?

From the MOSH-Insa-Toulouse/2020-2021_Pose_Rup repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 2020-2021 Pose Rup design in my own project?

Yes, under the terms of its MIT license, which MOSH-Insa-Toulouse chose for the repository.

Can I test firmware for the 2020-2021 Pose Rup without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
