Alami Powar Gas Sensor Shield

MOSH-Insa-Toulouse·Alami_Powar_Gas_Sensor_Shield·Final/KiCAD.kicad_pcb

Alami Powar Gas Sensor Shield layout, top view — open source AVR/Arduino board by MOSH-Insa-Toulouse

About the Alami Powar Gas Sensor Shield

Alami Powar Gas Sensor Shield is an open source AVR/Arduino PCB design by MOSH-Insa-Toulouse, published on GitHub. It is a 2-layer board measuring 68.6 × 53.3 mm, with 21 components from 14 distinct parts.

Its main chip is the Arduino_1pin, from the AVR/Arduino family. Other key parts include the LTC1050. By type, the board carries 8 connectors, 5 resistors, 4 capacitors and 1 IC.

It belongs with the sensors and dev boards & breakouts designs in this gallery.

From the project

MOSH - Smart Devices – Arduino Gas Sensor Shield

MOSH - Smart Devices – Arduino Gas Sensor Shield

This project was completed as part of the "Smart Devices" Course of the Mastère spécialisé Innovative and secure IoT systems at INSA Toulouse.

- The aim of the project is to design an Arduino shield that incorporates a nanoparticle gas sensor and a RN2483 LoRa Module, which allows data from the gas sensor to be transmitted to a LoRa Gateway, through which it can be uploaded to the Cloud or a local network. - The Arduino Gas Sensor Shield was designed using KiCad, a printed circuit board (PCB) design software package. - The Shield…

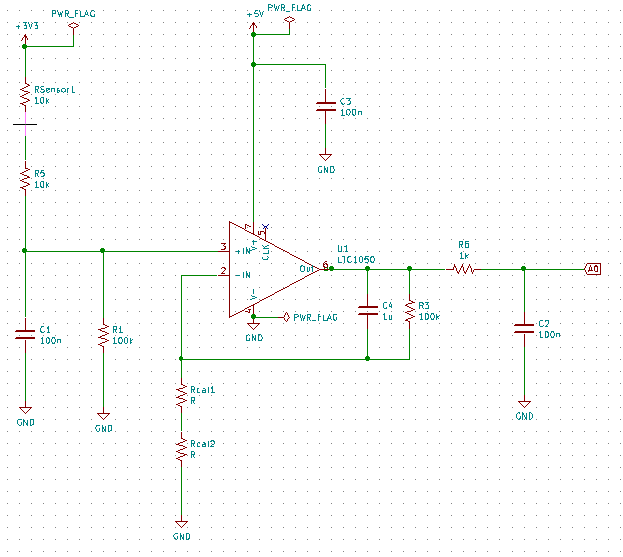

Alami Powar Gas Sensor Shield, from the project README
From the project README

Main components on the Alami Powar Gas Sensor Shield

LTC1050

Alami Powar Gas Sensor Shield bill of materials (BOM)

21 components, 14 distinct parts.

QtyPartRefs
1
LTC1050
U1
1
Power
P1
1
Analog
P2
1
Digital
P3
1
Digital
P4
4
CONN_01X01
P5, P6, P7, P8
1
10k
RSensor1
2
R
Rcal1, Rcal2
3
100n
C1, C2, C3
1
1u
C4
2
100k
R1, R3
1
10k
R5
1
1k
R6
1
RN2483_Breakout-RN2483
RN2483

Alami Powar Gas Sensor Shield design files

The KiCad project lives in the MOSH-Insa-Toulouse/Alami_Powar_Gas_Sensor_Shield repository on GitHub; these links point at the commit this page was built from.

Alami Powar Gas Sensor Shield: common questions

What microcontroller does the Alami Powar Gas Sensor Shield use?

The Alami Powar Gas Sensor Shield is built around the Arduino_1pin, from the AVR/Arduino family.

How big is the Alami Powar Gas Sensor Shield?

The Alami Powar Gas Sensor Shield measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Alami Powar Gas Sensor Shield?

21 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Alami Powar Gas Sensor Shield design files?

From the MOSH-Insa-Toulouse/Alami_Powar_Gas_Sensor_Shield repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Alami Powar Gas Sensor Shield design in my own project?

The repository has no license, so all rights stay with MOSH-Insa-Toulouse. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Alami Powar Gas Sensor Shield without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
