TP MOSH CapGaz PCB layout, top view — open source AVR/Arduino board by MOSH-Insa-Toulouse

About the TP MOSH CapGaz PCB

TP MOSH CapGaz is an open source AVR/Arduino PCB design by MOSH-Insa-Toulouse, published on GitHub. It is a 2-layer board measuring 68.6 × 53.3 mm, with 21 components from 14 distinct parts.

Its main chip is the Arduino_1pin, from the AVR/Arduino family. Other key parts include the LTC1050, RN2483 and Gas_sensor. By type, the board carries 8 connectors, 6 resistors, 4 capacitors and 3 ICs.

It belongs with the power & battery and sensors designs in this gallery.

From the project

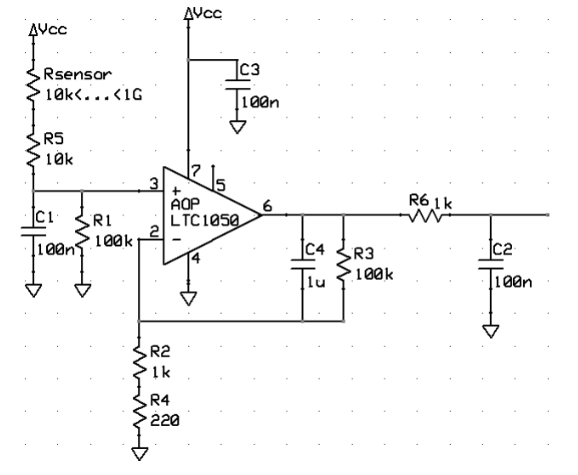

With 3D viewing, we can see what could be done in real.

TP MOSH CapGaz, from the project README
From the project README

Main components on the TP MOSH CapGaz

LTC1050RN2483Gas_sensor

TP MOSH CapGaz bill of materials (BOM)

21 components, 14 distinct parts.

QtyPartRefs
1
LTC1050
U1
1
RN2483
U2
1
Gas_sensor
U3
1
Power
P1
1
Analog
P2
1
Digital
P3
1
Digital
P4
4
CONN_01X01
P5, P6, P7, P8
3
100n
C1, C2, C3
1
1u
C4
2
100k
R1, R3
2
1k
R2, R6
1
220
R4
1
10k
R5

TP MOSH CapGaz design files

The KiCad project lives in the MOSH-Insa-Toulouse/Conzateidou_Laille_Gas-sensor repository on GitHub; these links point at the commit this page was built from.

TP MOSH CapGaz: common questions

What microcontroller does the TP MOSH CapGaz use?

The TP MOSH CapGaz is built around the Arduino_1pin, from the AVR/Arduino family.

How big is the TP MOSH CapGaz PCB?

The TP MOSH CapGaz measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TP MOSH CapGaz?

21 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the TP MOSH CapGaz design files?

From the MOSH-Insa-Toulouse/Conzateidou_Laille_Gas-sensor repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the TP MOSH CapGaz design in my own project?

The repository has no license, so all rights stay with MOSH-Insa-Toulouse. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the TP MOSH CapGaz without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
