Arduino icsp shield
About the Arduino icsp shield
Arduino icsp shield is an open source PCB design by mprosk, published on GitHub under the MIT license. It is a 2-layer board measuring 53.3 × 68.6 mm, with 18 components from 15 distinct parts.
Other key parts include the ADG3304. By type, the board carries 5 connectors, 4 resistors, 3 diodes, 2 jumpers, 2 capacitors and 1 IC.
It belongs with the dev boards & breakouts and usb & debug tools designs in this gallery.
From the project

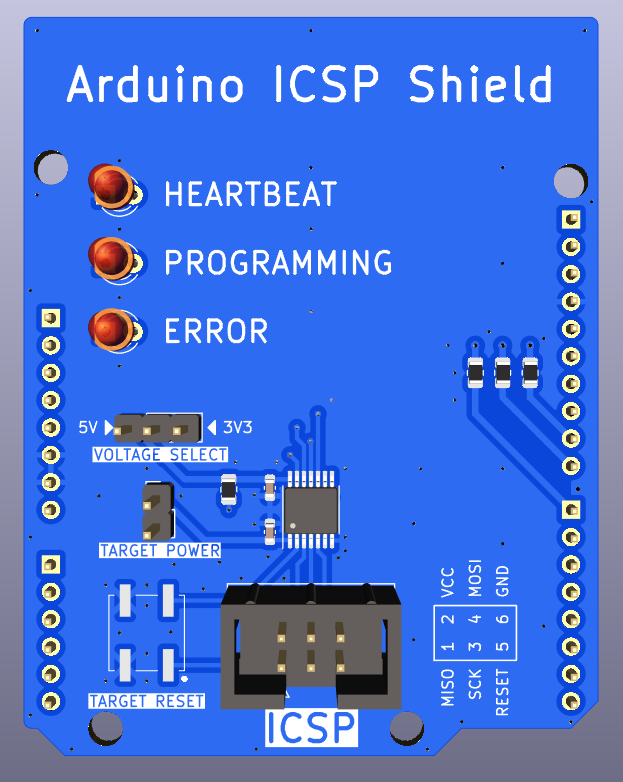

Arduino shield for using an UNO as an ICSP programmer
Onboard logic level shifter. Selectable target voltage (5V or 3V3)
Main components on the Arduino icsp shield
Arduino icsp shield bill of materials (BOM)
18 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ADG3304 | TSSOP-14_4.4x5mm_P0.65mm | U1 |
| 1 | Power | PinHeader_1x08_P2.54mm_Vertical | J1 |
| 1 | Digital/PWM | PinHeader_1x10_P2.54mm_Vertical | J2 |
| 1 | Analog | PinHeader_1x06_P2.54mm_Vertical | J3 |
| 1 | Digital/PWM | PinHeader_1x08_P2.54mm_Vertical | J4 |
| 1 | ICSP | IDC-Header_2x03_P2.54mm_Vertical | J5 |
| 1 | VOLTAGE SELECT | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 1 | TARGET POWER | PinHeader_1x02_P2.54mm_Vertical | JP2 |
| 1 | TARGET RESET | SW_Push_SPDT_CK_KSC4xxG | SW1 |
| 1 | HEARTBEAT | LED_D3.0mm | D1 |
| 1 | ERROR | LED_D3.0mm | D2 |
| 1 | PROGRAMMING | LED_D3.0mm | D3 |
| 2 | 100nF | C_0603_1608Metric | C1, C2 |
| 3 | 470R | R_0805_2012Metric | R1, R2, R3 |
| 1 | 10k | R_0805_2012Metric | R4 |
Arduino icsp shield design files
The KiCad project lives in the mprosk/arduino_icsp_shield repository on GitHub; these links point at the commit this page was built from.
Arduino icsp shield: common questions
How big is the Arduino icsp shield?
The Arduino icsp shield measures 53.3 × 68.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Arduino icsp shield?
18 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Arduino icsp shield design files?
From the mprosk/arduino_icsp_shield repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Arduino icsp shield design in my own project?
Yes, under the terms of its MIT license, which mprosk chose for the repository.
