About the Dmg schematics PCB
Dmg schematics is an open source PCB design by msinger, published on GitHub under the CC-BY-SA-4.0 license. It is a board, with 100 components from 7 distinct parts.
Other key parts include the NOT_X1, NOT_IF1, NOT_IF0 and AND3. By type, the board carries 28 connectors, 8 ICs and 2 resistors.
It belongs with the retro computing designs in this gallery.
From the project

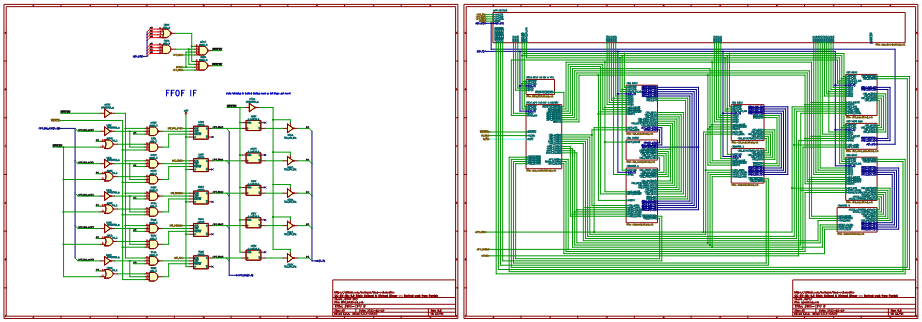

Reverse engineered schematics of the Game Boy's DMG-CPU B chip
Game Boy DMG-CPU Schematics ===========================
Contains reverse engineered schematics of the Game Boy DMG-CPU B chip, including the SM83 CPU core, as well as VLSI layouts and parsable netlists.
Originally, the DMG-CPU B schematics in this repository were derived from the schematics in furrtek/DMG-CPU-Inside (CC-BY-SA 4.0 Furrtek). They contain a lot of fixes that were never applied to DMG-CPU-Inside.
Main components on the Dmg schematics
Dmg schematics bill of materials (BOM)
100 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | NOT_X1 | U1, U2, U7 | |
| 2 | NOT_IF1 | U4, U6 | |
| 2 | NOT_IF0 | U5, U8 | |
| 1 | AND3 | U9 | |
| 28 | PMOS | P1, P2, P3, P4, P5, P6, P7, P8 +20 | |
| 62 | NMOS | N1, N2, N3, N4, N5, N6, N7, N8 +54 | |
| 2 | R | R1, R2 |
Dmg schematics design files
The KiCad project lives in the msinger/dmg-schematics repository on GitHub; these links point at the commit this page was built from.
- Schematicsm83_cells/sm83_cells.kicad_sch
Dmg schematics: common questions
How many components are on the Dmg schematics?
100 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Dmg schematics design files?
From the msinger/dmg-schematics repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Dmg schematics design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which msinger chose for the repository.
