Rp2350 dev board
About the Rp2350 dev board
Rp2350 dev board is an open source RP2040/RP2350 PCB design by msorair, published on GitHub. It is a 2-layer board measuring 19.6 × 36.7 mm, with 39 components from 13 distinct parts.
Its main chip is the QFN-60_L7.0-W7.0-P0.40-TL-EP3.4, from the RP2040/RP2350 family. By type, the board carries 19 capacitors, 9 resistors, 3 ICs, 2 LEDs, 1 crystal and 1 inductor.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

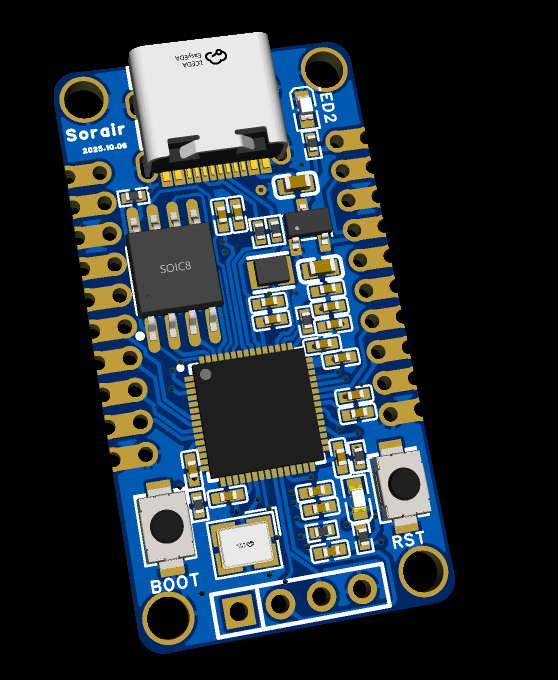

rp2350 dev board with 128MB flash, board size 2 cm * 3.6 cm
Rp2350 dev board bill of materials (BOM)
39 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | — Raspberry Pi(树莓派) | QFN-60_L7.0-W7.0-P0.40-TL-EP3.4 | U1 |
| 1 | — TOREX(特瑞仕) | SOT-23-3_L2.9-W1.6-P1.90-LS2.8-BR | U3 |
| 1 | — Winbond(华邦) | SOIC-8_L5.3-W5.3-P1.27-LS8.0-BL | U4 |
| 1 | — YXC(扬兴晶振) | CRYSTAL-SMD_4P-L3.2-W2.5-BL | X1 |
| 1 | — | HDR-TH_4P-P2.54-V-F | H3 |
| 2 | — HCTL(华灿天禄) | HDR-TH_20P-P2.00-V-M-R2-C10-S2.00 | H4, H5 |
| 1 | — 韩国韩荣 | USB-C_SMD-TYPE-C-31-M-12_1 | USBC2 |
| 1 | — KENTO | LED0603-RD | LED1 |
| 1 | — KENTO | LED0603-R-RD_WHITE | LED2 |
| 1 | — cjiang(长江微电) | IND-SMD_L2.0-W1.6-B | L1 |
| 17 | — SAMSUNG(三星) | C0402 | C1, C2, C3, C4, C5, C6, C7, C8 +9 |
| 2 | — SAMSUNG(三星) | C0603 | C19, C20 |
| 9 | — UNI-ROYAL(厚声) | R0402 | R1, R2, R3, R4, R10, R11, R12, R13 +1 |
Rp2350 dev board design files
The KiCad project lives in the msorair/rp2350_dev_board repository on GitHub; these links point at the commit this page was built from.
- Layoutrp2350.kicad_pcb
- Schematicrp2350.kicad_sch
Rp2350 dev board: common questions
What microcontroller does the Rp2350 dev board use?
The Rp2350 dev board is built around the QFN-60_L7.0-W7.0-P0.40-TL-EP3.4, from the RP2040/RP2350 family.
How big is the Rp2350 dev board?
The Rp2350 dev board measures 19.6 × 36.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rp2350 dev board?
39 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rp2350 dev board design files?
From the msorair/rp2350_dev_board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Rp2350 dev board design in my own project?
The repository has no license, so all rights stay with msorair. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Rp2350 dev board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
