SFP Plug Breakout
About the SFP Plug Breakout
SFP Plug Breakout is an open source PCB design by mwrnd, published on GitHub under the BSD-2-Clause license. It is a 4-layer board measuring 79.3 × 17 mm, with 16 components from 9 distinct parts.
By type, the board carries 6 connectors, 6 resistors and 4 capacitors.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

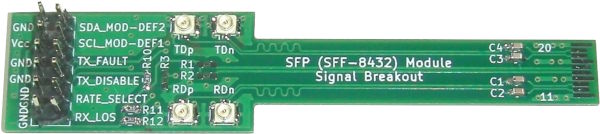

Pluggable SFP Module Breakout
Work-in-Progress - First Revision gerbers being tested.
Pluggable SFP (SFF INF-8074i) and SFP+ (SFF-8432) Module Breakout for developing SFP modules. PCB must be manufactured with a 1.0mm thickness.
Similar Projects: SFP-Breakout-Board, SFPBreakoutBoard, SFP-Loopback-Board, and Sfp-breakout(osmocom.org*).
Differential pair parameters were calculated based on a board thickness of 1.0mm.
SFP Plug Breakout bill of materials (BOM)
16 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SFP+ | SFP_Plug | J1 |
| 1 | RDp | U.FL_Hirose_w_Label | J2 |
| 1 | RDn | U.FL_Hirose_w_Label | J3 |
| 1 | TDp | U.FL_Hirose_w_Label | J4 |
| 1 | TDn | U.FL_Hirose_w_Label | J5 |
| 1 | Conn_02x06_Odd_Even | PinHeader_2x06_P2.54mm_Vertical | J6 |
| 4 | u01 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2, C3, C4 |
| 3 | 0 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R3 |
| 3 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R10, R11, R12 |
SFP Plug Breakout design files
The KiCad project lives in the mwrnd/SFP_Plug_Breakout repository on GitHub; these links point at the commit this page was built from.
- LayoutSFP_Plug_Breakout.kicad_pcb
- SchematicSFP_Plug_Breakout.kicad_sch
SFP Plug Breakout: common questions
How big is the SFP Plug Breakout?
The SFP Plug Breakout measures 79.3 × 17 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the SFP Plug Breakout?
16 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the SFP Plug Breakout design files?
From the mwrnd/SFP_Plug_Breakout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the SFP Plug Breakout design in my own project?
Yes, under the terms of its BSD-2-Clause license, which mwrnd chose for the repository.
