About the LimeRFE-8001P PCB

LimeRFE-8001P is an open source RP2040/RP2350 PCB design by myriadrf, published on GitHub. It is a board measuring 157.1 × 163.3 mm, with 1461 components from 280 distinct parts.

Its main chip is the 358-RP2040CHIP-7-500, from the RP2040/RP2350 family. Other key parts include the 584-ADL5513ACPZ-R7, LMS8001, 754-PAT1220C-3DBT5, 873-SKY13330-397LF and AP7361-FGE-7DI. By type, the board carries 600 capacitors, 479 resistors, 165 ICs, 124 inductors, 45 connectors and 26 transformers.

From the project

LMS8001 based RF front-end with up/down conversion and predistortion

The LimeRFE 8001P board is a two channel RF front end module capable of frequency conversion, RF signal amplification and power amplifier linearisation. It can be configured so that either the integrated driver amplifiers, or external power amplifiers, are linearised. LimeRFE 8001P is designed with 5G cellular networks in mind, but may be put to use in other applications with similar requirements.

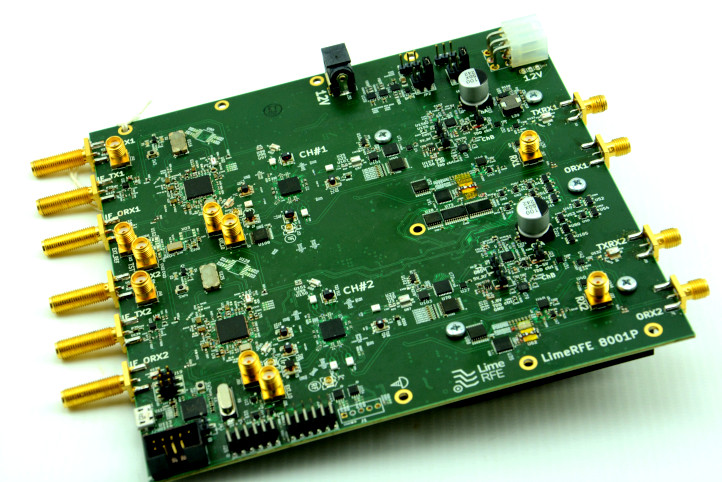

LimeRFE-8001P, from the project README — From the project README

LimeRFE-8001P bill of materials (BOM)

1461 components, 280 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
2	584-ADL5513ACPZ-R7 NF_AD5513 Analog Devices	AD5513	IC1, IC2
2	LMS8001	LMS8001	U1, U2
2	754-PAT1220C-3DBT5 PAT1220-C-6DB-T5 Susumu	PAT1220-C-3DB-T5	U3, U107
8	873-SKY13330-397LF SKY13330-397LF Skyworks Solutions Inc.	SKY13330-397LF	U4, U27, U30, U31, U39, U40, U41, U42
15	AP7361-FGE-7DI AP7361 Diodes_Incorporated	U-DFN3030-8	U5, U6, U7, U8, U26, U44, U89, U94 +7
4	863-NCP164CSN330T1G NCP164CSN330T1G ON_Semiconductor	NCP164CSN330T1G	U9, U16, U145, U146
2	2490219 ADM7155 Analog Devices	ADM7155	U10, U144
6	595-SN74HCS594QPWRQ1 SN74HCS594QPWRQ1 Texas Instruments	SN74HCS594QPWRQ1	U11, U12, U28, U32, U88, U108
9	595-SN74LV1T04DCKRG4 SN74LV1T04 Texas Instruments	SN74LV1T04	U13, U34, U49, U50, U81, U82, U83, U84 +1
3	NCP349MNAETBGOS NCP349 ON Semiconductor	6-DFN	U14, U15, U29
2	863-MC74VHC1G126DBVG MC74VHC1G126DBVT1G MC74VHC1G126DBVT1G	MC74VHC1G126DBVT1G	U17, U19
1	ADF4002BCPZ-RL7 ADF4002 Analog Devices Inc	LFCSP 20	U18
1	595-SN74LV1T04DCKRG4 NF_PAT1220-C-3DB-T5 Texas Instruments	PAT1220-C-3DB-T5	U20
1	863-NB3H83905CMNG NB3H83905CMNG OnSemi	NB3H83905CMNG	U21
1	595-SN74CBT3245APWE4 NF_PAT1220-C-10DB-T5 Texas Instruments	PAT1220-C-6DB-T5	U22
1	595-SN74CBT3245APWE4 NF_PAT1220-C-3DB-T5 Texas Instruments	PAT1220-C-3DB-T5	U23
4	771-NXB0108PW-Q100J SN74LVC8T245QPWRQ1 Nexperia	SN74LVC8T245QPWRQ1	U24, U33, U38, U73
1	771-NXB0108PW-Q100J NF_PAT1220-C-10DB-T5 Nexperia	PAT1220-C-6DB-T5	U25
2	972-F1956NBGI8 F1956NBGI8 IDT	F1956NBGI8	U35, U91
8	595-SN74LV1T34DCKRG4 SN74LV1T34 SN74LV1T34DCKRG4	SN74LV1T34	U36, U45, U47, U59, U74, U76, U78, U111

Show 260 more

Qty	Part	Footprint	Refs
6	139-BFCV-4085 BFCV-4085+ MiniCircuits	BFCV-4085+	U37, U43, U56, U87, U148, U149
2	139-TSS-53LNB3 TSS-53LNB3+ Mini-Circuits	TSS-53LNB3+	U46, U48
8	863-MC74VHC1G08DTT1G MC74VHC1G08DTT1G Onsemi	MC74VHC1G08DTT1G	U51, U52, U53, U54, U75, U80, U104, U105
1	SN74HCS594QPWRQ1	SN74HCS594QPWRQ1	U55
2	754-PAT3060H-C10DBT1 PAT3060H-C-10DB-T1 Susumu	PAT3060H-C-10DB-T1	U57, U61
2	841-MMZ38333BT1 MMZ38333BT1 NXP Semiconductors	MMZ38333BT1	U58, U69
2	54-PAT3060H-C-1DBT1 NF_PAT3060H-C-1DB-T1 Susumu	PAT3060H-C-1DB-T1	U60, U62
2	791-RFBPF2520070S0T BFCN-1860+ TDK	BFCN-1860+	U63, U66
2	139-BFCN-1860 BFCN-1860+ MiniCircuits	BFCN-1860+	U64, U67
2	791-RFBPF2520070S0T DEA161953BT-2303B1-H TDK	DEA161953BT-2303B1-H	U65, U68
1	771-NXB0108PW-Q100J SN74HCS594QPWRQ1 Nexperia	SN74HCS594QPWRQ1	U70
2	771-NXB0108PW-Q100J F1956NBGI8 Nexperia	F1956NBGI8	U71, U72
2	772-QPA9122MTR7 QPA9122M Qorvo	QPA9122MTR7	U77, U79
1	595-TPS62136RGXR TPS62136RGXT Texas Instruments	TPS62136RGXT	U85
1	863-NCP59301DS50R4G NCP59301DS50R4G ON_Semi	NCP59301DS50R4G	U86
2	595-LMV324QDRG4 NF_LMV324QDRG4 Texas Instruments	LMV324QDRG4	U90, U128
2	139-BDCN-7-25 BDCN-7-25+ Mini-Circuits	BDCN-7-25+	U92, U124
2	772-TQL9063 TQL9063 Qorvo	TQL9063	U93, U106
1	RTX5032A PAT1220-C-3DB-T5 Rakon	PAT1220-C-3DB-T5	U96
1	E6245LF NF_PAT1220-C-10DB-T5 Rakon	PAT1220-C-10DB-T5	U97
1	ADF4002BCPZ-RL7 NF_PAT1220-C-6DB-T5 Analog Devices Inc	PAT1220-C-6DB-T5	U98
1	863-NB3H83905CMNG PAT1220-C-3DB-T5 OnSemi	PAT1220-C-3DB-T5	U99
2	595-TPS22810DBVR TPS22810DBVR Texas Instruments	SOT23_TPS22810DBVR	U100, U102
2	139-MNA-7A MNA-7A+ Mini-Circuits	MNA-7A+	U101, U103
1	863-NUP2202W1T2G NUP2202W1T2G ON Semiconductor	SC-88-6_NUP2202W1T2G	U112
1	454-W25Q128JVSIM NF_W25Q128JVSIM Winbond	W25Q128JVSIM	U113
1	988-AT25SF128A-MHB-T AT25SF128A-MHB-T Dialog Semiconductor	AT25SF128A-MHB-T	U114
1	358-RP2040CHIP-7-500 RP2040 Raspberry Pi	RPI_Chip_RP2040_7_500	U115
2	620-XDL15-2-020S XDL15-2-020S Anaren	XDL15-2-020S	U116, U125
2	620-DC1722J5010AHF DC1722J5010AHF Anaren	DC1722J5010AHF	U117, U127
2	584-TMP36GRTZ-R7 NF_TMP36GRTZ-REEL7 Analog Devices	TMP36GRTZ-REEL7	U118, U126
6	620-BD1722J50100AHF BD1722J50100AHF Anaren	BD1722J50100AHF	U119, U120, U122, U129, U130, U135
2	700-SC1905A-00A00 SC1905 Maxim Integrated	SC1905A-00A00	U121, U131
2	771-NXB0108PW-Q100J HHM2955A1 Nexperia	HHM2955A1	U123, U132
1	595-SN74CBT3245APWE4 DEA161953BT-2303B1-H Texas Instruments	DEA161953BT-2303B1-H	U133
3	771-NXB0108PW-Q100J DEA161953BT-2303B1-H Nexperia	DEA161953BT-2303B1-H	U134, U136, U138
1	771-NXB0108PW-Q100J BFCN-1860+ Nexperia	BFCN-1860+	U137
1	595-SN74CBT3245APWE4 BFCN-1860+ Texas Instruments	BFCN-1860+	U139
1	NF_PAT1220-C-10DB-T5	PAT1220-C-10DB-T5	U150
1	NF_PAT1220-C-6DB-T5	PAT1220-C-6DB-T5	U151
1	NF_TX-801_40.000_MHz	SMD_TX-801	U152
2	TCA9406DCTR	TCA9406DCTR	U153, U154
2	NF_PAT1220-C-2DB-T5	PAT1220-C-2DB-T5	U155, U159
4	NF_PAT1220-C-3DB-T5	PAT1220-C-3DB-T5	U156, U158, U160, U162
2	PAT1220-C-4DB-T5	PAT1220-C-2DB-T5	U157, U161
1	SN74LVC2T45DCTT	SN74LVC2T45DCTT	U163
2	637-MMBT3904 NF_MMBT3904 Diotec Semiconductor	MMBT3904	Q1, Q3
2	2N7002-G 2N7002 onsemi / Fairchild	SOT-23	Q2, Q4
2	710-830108207209 830108207209 Wurth Elektronik	278-20.0M-20-W-TR	X1, X2
1	815-ABLS-12.0M-T ABLS-12.000MHZ-B4-T ABRACON	ABLS-12.000MHZ-B4-T	X6
1	538-47346-0001 47346-0001 Manufacturer	USB-MINI-B	CON1
1	WM9458 pin_header_1x5_0022292051 Molex Inc	pin_header_1x5_0022292051	J1
3	609-3461 PIN_HEADER_1X3 FCI	pin_header_1x3	J2, J24, J27
10	WM9458 SMA_vert_SMD Molex Inc	SMA_vert_SMD	J3, J13, J14, J17, J22, J26, J42, J43 +2
4	530-142-0701-851 SMA_H_142-0701-851 Johnson / Cinch Connectivity Solutions	SMA_H	J4, J5, J15, J20
6	530-142-0701-851 SMA_H_142-0711-811 Johnson / Cinch Connectivity Solutions	SMA_H_142-0711-811	J6, J7, J8, J9, J10, J11
3	200-SNM100BKT Jumper_SNM-100-BK-T Samtec	SNM-100-BK-T	J12, J25, J47
7	TSM-102-04-T-SV Samtec	TSM-102-04-T-SV	J16, J18, J21, J23, J37, J40, J46
1	200-TSM10304FDV TSM-103-04-F-DV Samtec	TSM-103-04-F-DV	J19
2	649-95278-401-06LF PMOD_CONN Amphenol FCI	PMOD_CONN	J28, J36
1	WM9458 TSS-105-01-G-D-09 Molex Inc	TSS-105-01-G-D-09	J29
1	649-95278-401-06LF RAPC712X Amphenol FCI	RAPC712X	J30
4	WM5587 UMC_SMD Molex_LLC	UMC_SMD	J33, J34, J35, J57
1	WM13196 0353180620 Molex	0353180620	J45
2	WM17449 PINHEADER_2X3 Molex Inc	PINHEADER_2X3	JP1, JP2
3	653-B3U-1000P SW_PUSH Omron Electronics	B3U-1000P	SW2, SW3, SW4
2	TCM1-83X+ TR_TCM1-83X+ Mini-Circuits	TCM1-63AX+	T1, T5
8	NCR2-113+ Mini-Circuits	NCR2-113+	T2, T3, T6, T11, T13, T14, T15, T16
8	TC1-1-13M+ TR_TC1-1-13M+ Mini-Circuits	TC1-1-13M+	T4, T8, T9, T10, T12, T17, T18, T26
8	5400BL15B050 TR_5400BL15B050 Johanson_Technology	5400BL15B050	T7, T19, T20, T21, T22, T23, T24, T25
1	E6245LF NF_RPT5032A Rakon	RPT5032A	XO3
1	RTX5032A RTX5032A_40.000_MHZ Rakon	SMD_RTX5032A	XO4
4	475-1409-1 LED OSRAM Opto Semiconductors Inc	LED_0603	LD1, LD4, LD5, LD6
4	755-SML-D12M1WT86 LED0603_GREEN Rohm Semiconductor	LED_0603	D1, D2, D3, D4
38	587-3277-1 FB_0201 Taiyo Yuden	SMD0201	FB1, FB2, FB3, FB4, FB5, FB6, FB7, FB8 +30
1	810-MPZ2012S601AT000 FB_600R_0805_MPZ2012S601AT000 TDK	SMD0805	FB16
15	445-2204-1 FB_60R_0805 TDK Corporation	SMD0805	FB17, FB18, FB19, FB20, FB21, FB23, FB24, FB30 +7
1	445-2162-1 FB_600R_0402 TDK Corporation	SMD0402	FB22
1	490-3994-2 BLM18EG601SN1D Murata_Electronics	SMD0603_gap04	FB29
3	L_NF	SMD0201	L1, L3, L27
4	81-LQP03TN1N6B02D 1.6nH_0201_LQP03TN1N6B02D Murata	SMD0201	L2, L4, L29, L30
4	81-LQW15AN8N2G00D 8.2nH_0402_LQW15AN8N2G00D Murata	IND_0402	L5, L7, L9, L11
10	81-LQW15AN3N6C10D 3.6nH_0402_LQW15AN3N6C10D Murata	IND_0402	L6, L8, L10, L12, L32, L33, L34, L36 +2
2	994-0402CS-1N2XJLU 1.2nH_0402_0402CS-1N2XJLU Coilcraft	SMD0402	L13, L18
4	994-0603HP-10NXGLW 10nH_0603_0603HP-10NXGLW Coilcraft	SMD0603	L14, L16, L19, L21
2	994-0402CS-2N4XGLU 2.4nH_0402_0402CS-2N4XGLU Coilcraft	SMD0402	L15, L20
2	994-0603HP-3N3XJLW 3.3nH_0603_0603HP-3N3XJLW Coilcraft	SMD0603	L17, L22
2	81-LQW04AN47NH20D 47nH_0402_LQW04AN47NH20D Murata	SMD0402	L23, L25
2	81-LQW15AW56NJ80D 56nH_0402_LQW15AW56NJ80D Murata	SMD0402	L24, L26
1	81-LQP03TN1N6B02D L Murata	SMD0201	L28
2	0402HP-8N2XJLU 8.2NH_0402 Coilcraft	IND_0402	L31, L35
1	810-SPM6530T-2R2M SPM6530T-2R2M TDK Corporation	SPM6530T-2R2M	L39
2	994-0402CS-12NXJLW 12nH_0402_0402CS-12NXJLW COILCRAFT	SMD0402	L40, L41
2	81-BLM15BD471SN1D 470R_0402_BLM15BD471SN1D Murata	SMD0402	L42, L65
1	81-BLM18PG471SN1D 470R_0603_BLM18PG471SN1D Murata	SMD0603	L43
4	587-1513-2 5.6nH_0402_HK10055N6S-T Taiyo Yuden	SMD0402	L44, L45, L66, L67
2	587-1522-6 18nH_0402_HK100518NJ-T Taiyo Yuden	SMD0402	L46, L68
2	994-0603CS-68NXJLW 68nH_0603_0603CS-68NXJLW Coilcraft	SMD0603	L47, L48
4	587-1499-6 1.2nH_0402_HK10051N2S-T Taiyo Yuden	SMD0402	L57, L58, L69, L70
2	587-1507-6 3.3nH_0402_HK10053N3S-T Taiyo Yuden	SMD0402	L59, L71
2	587-1517-6 8.2nH_0402_HK10058N2J-T Taiyo Yuden	SMD0402	L60, L72
4	587-1503-6 2.2nH_0402_HK10052N2S-T Taiyo Yuden	SMD0402	L61, L62, L73, L74
4	81-BLM11A121S 120R_0603_BLM18AG121SN1D Murata	SMD0603	L63, L64, L75, L76
48	445-8008-1 1UF_0201_TDK_X5R TDK	SMD0201	C1, C2, C3, C5, C6, C7, C9, C11 +40
22	445-7275-1 1NF_0201 TDK Corporation	SMD0201	C4, C8, C10, C14, C19, C20, C25, C141 +14
88	311-1045-1 10nF_0402 Yageo	SMD0402	C28, C29, C30, C31, C32, C34, C37, C40 +80
12	311-1448-1 10UF_0603 Yageo	SMD0603	C33, C66, C77, C81, C86, C200, C201, C608 +4
18	81-GJM1555C1H100GB01 NF_10pF_0402_GJM1555C1H100GB01D Murata Electronics	SMD0402	C35, C399, C400, C403, C404, C405, C409, C410 +10
4	81-GRM1555C1H471JA01 470pF_0402_GRM1555C1H471JA01D Murata Electronics	SMD0402	C36, C199, C219, C401
2	81-GCM155R71H473KE2D 47nF_0402_GCM155R71H473KE02D Murata Electronics	SMD0402	C38, C402
1	80-CBR04C509C5G 33nF_0402 KEMET	SMD0402	C39
1	80-CBR04C509C5G 1nF_0402 KEMET	SMD0402	C41
34	311-1377-1 1UF_0402 Yageo	SMD0402	C43, C44, C45, C51, C52, C53, C54, C55 +26
16	311-1036-1 1nF_0402 Yageo	SMD0402	C46, C47, C49, C56, C96, C97, C192, C196 +8
3	311-1376-1 10UF_1206 Yageo	SMD1206	C57, C78, C206
8	490-3897-1 1UF_0603 Murata	SMD0603	C59, C82, C195, C197, C215, C217, C610, C616
15	490-5408-1 4.7UF_0402 Murata_Electronics_North_America	SMD0402	C60, C61, C62, C64, C240, C394, C395, C413 +7
21	81-GRM155R71C104KA88 100NF_0402 Murrata Electronic	SMD0402	C67, C73, C74, C75, C79, C84, C85, C89 +13
4	81-GCM155R71H102KA7D 1NF_0402 Murrata Electronics	SMD0402	C68, C163, C166, C174
1	81-GRM15R71H122KA01D 1.2NF_0402 Murata_Electronics	SMD0402	C69
1	81-GRM155R61A474KE5D 470NF_0402 Murata_Electronics	SMD0402	C70
17	81-GRM155R71C104KA8J 100nF_0402_GRM155R71C104KA88J Murata Electronics	SMD0402	C71, C87, C244, C248, C471, C472, C474, C475 +9
1	81-GRM155R71H683ME4D 68NF_0402 Murata_Electronics	SMD0402	C72
1	2332478RL 10PF_0402 AVX Corporation	SMD0402	C76
1	311-1035-2 220PF_0402 Yageo	SMD0402	C80
5	81-GRM188R61E106KA3J 10uF_0603_GRM188R61E106KA73J Murata Electronics	SMD0603	C88, C293, C317, C319, C485
9	603-CC402ZRY5V5BB105 1uF_0402_CC0402ZRY5V5BB105 Yageo	SMD0402	C90, C299, C302, C310, C314, C462, C481, C482 +1
6	445-1769-1 10PF_0201 TDK Corporation	SMD0201	C94, C101, C102, C286, C294, C295
1	311-1706-1 18NF_0402 Yageo	SMD0402	C99
27	81-GJM0335C1E100JB1D 10pF_0201_GJM0335C1E100JB01D Murata Electronics	SMD0201	C103, C104, C135, C136, C137, C138, C139, C140 +19
11	81-GJM0335C1E2R3BB1D 2.3pF_0201_GJM0335C1E2R3BB01D Murata Electronics	SMD0201	C105, C106, C119, C120, C123, C124, C332, C333 +3
30	C_NF	SMD0201	C107, C108, C109, C110, C111, C112, C115, C116 +22
10	81-GJM0335C1ER90BB1D 0.9pF_0201_GJM0335C1ER90BB01D Murata Electronics	SMD0201	C113, C114, C117, C118, C341, C342, C343, C344 +2
10	81-GJM0335C1ER50BB01 0.5pF_0201_GJM0335C1ER50BB01D Murata Electronics	SMD0201	C121, C122, C125, C126, C349, C350, C351, C352 +2
3	81-GJM0335C1ER60BB1D 0.6pF_0201_GJM0335C1ER60BB01D Murata Electronics	SMD0201	C127, C129, C355
2	C	SMD0201	C152, C336
3	81-LQP03TN1N9B02D 1.9nH_0201_LQP03TN1N9B02D Murata Electronics	SMD0201	C155, C156, C379
1	490-7201-2 10UF_0603 Murrata Electronics	SMD0603_gap04	C160
2	490-8074-1 0.4PF_0201 Murata_Electronics	SMD0201	C161, C292
4	81-GCM155R71E103KA7D 10NF_0402 Murata_Electronics	SMD0402	C165, C168, C175, C177
8	80-CBR04C509C5G 5pF_0402_CBR04C509C5GAC KEMET	SMD0402	C190, C232, C233, C236, C237, C241, C245, C328
8	581-04023J5R6BBW 5.6pF_0402_04023J5R6BBWTR AVX	SMD0402	C191, C194, C198, C210, C211, C214, C218, C283
2	80-C0603C103J5RAC 10nF_0603_C0603C103J5RAC KEMET	SMD0603	C193, C213
2	667-EEE-FK1J101P 100uF_63V_Electrolytic_Panasonic Panasonic	EEE-FK1J101P	C203, C221
2	4.7uF_0603	SMD0603	C204, C222
2	81-GRM1555C2A2R0CA1D 2pF_0402_GRM1555C2A2R0CA01D Murata Electronics	SMD0402	C208, C234
2	81-GRM1555C2AR60BA1D 0.6pF_0402_GRM1555C2AR60BA01D Murata Electronics	SMD0402	C209, C282
2	311-1014-1 10pF_0402 Yageo	SMD0402	C243, C247
2	81-GCM155R71H102KA7D NF_1000pF_0402_GCM155R71H102KA37D Murata Electronics	SMD0402	C249, C250
1	81-GRM155R71E222KA1D 2.2nF_0402_GRM155R71E222KA01D Murata Electronics	SMD0402	C291
4	81-GRM1555C1H180JA1D 18pF_0402_GRM1555C1H180JA01D Murata Electronics	SMD0402	C297, C306, C308, C316
8	81-GRM1555C1H101JA1D 100pF_0402_GRM1555C1H101JA01D Murata Electronics	SMD0402	C298, C300, C301, C304, C309, C311, C312, C315
1	CGA9N3X7R1E476M230KB 47uF_2220_CGA9N3X7R1E476M230KB Murata Electronics	SMD2220	C318
34	81-GRM1555C1H102JA1D 1nF_0402_GRM1555C1H102JA01D Murata	SMD0402	C397, C398, C492, C495, C496, C497, C498, C499 +26
2	81-GRM39R105K10 NF_1uF_0603_GRM188R61A105KA61D Murata	SMD0603	C406, C528
2	81-GRM188R71A225KE5J NF_2.2uF_0603_GRM188R71A225KE15J Murata	SMD0603	C407, C530
6	81-GRM1555C1H102JA1D NF_1nF_0402_GRM1555C1H102JA01D Murata	SMD0402	C408, C411, C524, C533, C536, C582
1	311-1047-1 100nF_0402_GRM155R71C104KA88J Yageo	SMD0402	C415
1	311-1045-1 100nF_0402_GRM155R71C104KA88J Yageo	SMD0402	C416
2	311-1036-1 10nF_0402 Yageo	SMD0402	C417, C424
1	81-GRM15R71H122KA01D 10nF_0402 Murata_Electronics	SMD0402	C418
1	81-GRM155R61A474KE5D 1NF_0402 Murata_Electronics	SMD0402	C419
1	311-1706-1 10NF_0402 Yageo	SMD0402	C420
1	81-GRM155R71H683ME4D 100NF_0402 Murata_Electronics	SMD0402	C421
2	311-1047-1 10UF_0603 Yageo	SMD0603	C422, C423
6	81-GJM1555C1H150JB1D 15pF_0402_GJM1555C1H150JB01D Murata Electronics	SMD0402	C450, C490, C512, C540, C541, C567
2	581-06035C102K 1nF_0603_06035C102KAT2A AVX	SMD0603	C452, C455
2	80-C0603C104M5R NF_100nF_0603_C0603C104M5RACTU KEMET	SMD0603	C453, C456
4	81-GCM155R71H102KA7D 1000pF_0402_GCM155R71H102KA37D Murata Electronics	SMD0402	C454, C457, C463, C621
6	667-ECJ-0EC1H101J 100pF_0402_ECJ-0EC1H101J Murata Electronics	SMD0402	C460, C461, C464, C618, C619, C622
4	81-GCM1555C1H270FA6D 27pF_0402_GCM1555C1H270FA16D Murata Electronics	SMD0402	C465, C469, C470, C623
1	581-04025C392JAT2A 3.9nF_0402_04025C392JAT2A AVX	SMD0402	C473
2	81-GJM1555C1HR20BB01 0.2pF_0402_GJM1555C1HR20BB01D Murata Electronics	SMD0402	C491, C542
2	81-GJM1555C1HR90BB1D 0.9pF_0402_GJM1555C1HR90BB01D Murata Electronics	SMD0402	C493, C544
6	81-GRM188R71A225KE5J 2.2uF_0603_GRM188R71A225KE15J Murata	SMD0603	C494, C510, C513, C545, C564, C568
2	81-GJM1555C1HR50BB01 0.5pF_0402_GJM1555C1HR50BB01D Murata Electronics	SMD0402	C507, C561
6	81-GCM155R71H473KE2D NF_47nF_0402_GCM155R71H473KE02D Murata Electronics	SMD0402	C511, C514, C515, C553, C558, C559
4	81-GJM1555C1H100GB01 10pF_0402_GJM1555C1H100GB01D Murata Electronics	SMD0402	C516, C517, C571, C572
4	81-GRM155R71C104KA8J NF_100nF_0402_GRM155R71C104KA88J Murata Electronics	SMD0402	C520, C521, C565, C566
4	81-GRM1555C1H101JA1D NF_100pF_0402_GRM1555C1H101JA01D Murata Electronics	SMD0402	C522, C523, C569, C570
2	311-1045-1 47nF_0402_GCM155R71H473KE02D Yageo	SMD0402	C526, C575
2	311-1045-1 470pF_0402_GRM1555C1H471JA01D Yageo	SMD0402	C576, C577
6	RHM0.0CC 0R_0201 Rohm Semiconductor	SMD0201	R1, R91, R92, R130, R160, R161
45	RMCF0402FT10K0 10K_0402 Stackpole Electronics Inc	SMD0402	R2, R41, R70, R106, R111, R118, R120, R131 +37
12	10K_0402	SMD0402	R3, R4, R129, R132, R163, R164, R165, R166 +4
12	667-ERJ-U02F49R9X 49.9R_0402_ERJ-U02F49R9X Panasonic	SMD0402	R5, R68, R99, R190, R361, R362, R417, R537 +4
12	541-2779-1 0R_0603_NF Vishay_Dale	SMD0603	R6, R7, R8, R9, R10, R11, R12, R13 +4
14	71-CRCW040220K0FKEDC 20K_0402_CRCW040220K0FKEDC Vishay	SMD0402	R14, R15, R20, R21, R57, R58, R60, R61 +6
61	311-0.0JR 0R_0402_NF Yageo	SMD0402	R22, R23, R38, R40, R48, R80, R104, R105 +53
2	RCS06030000Z0EA 0R_0201_NF Vishay_Dale	SMD0201	R24, R195
15	RHM0.0CC 0R_0201_NF Rohm Semiconductor	SMD0201	R25, R26, R90, R94, R95, R96, R97, R155 +7
6	311-110KJR 110K_0402 Yageo	SMD0402	R27, R31, R56, R72, R101, R241
14	YAG3125 34K8_0402 Yageo	SMD0402	R28, R30, R32, R34, R36, R44, R242, R246 +6
2	YAG3026 19K6_0402 Yageo	SMD0402	R29, R566
2	YAG3066 23K2_0402 Yageo	SMD0402	R33, R254
5	YAG3163 44K2_0402 Yageo	SMD0402	R35, R43, R243, R292, R345
62	311-0.0JR 0R_0402 Yageo	SMD0402	R37, R39, R42, R46, R47, R49, R50, R52 +54
2	311-4.99KLR 4K99_0402 Yageo	SMD0402	R45, R559
3	311-680LR 680R_0402 Yageo	SMD0402	R51, R55, R83
1	603-RC0402FR-0769K8L 69K8_0402 Yageo	SMD0402	R63
2	603-RC0402FR-075K1L 5K1_0402 Yageo	SMD0402	R65, R312
1	311-10JR 10R_0402 Yageo	SMD0402	R66
1	P470DE 470R_0402 Panasonic Electronic Components	SMD0402	R67
1	RMCF0402FT1K00 1K_0402 Stackpole Electronics Inc	SMD0402	R69
3	311-0.0JR NF_0R_0603_RCS06030000Z0EA Yageo	SMD0603	R73, R75, R127
2	71-CRCW040251R0FKED 51R_0402 Vishay Dale	SMD0402	R74, R79
3	311-47.0LR 47R_0402 Yageo	SMD0402	R76, R77, R78
4	667-ERJ-2RKD27R0X 27R_0402_ERJ2RKD27R0X Panasonic	SMD0402	R81, R88, R308, R309
2	603-AC0402JR-071K2L 1.2K_0402_AC0402JR-071K2L Yageo	SMD0402	R82, R89
2	0R_0201_NF	SMD0201	R85, R100
2	603-RC0402JR-07390RL 390R_0402_RC0402JR-07390RL Yageo	SMD0402	R86, R138
6	0RNF_0402	SMD0402	R87, R139, R191, R192, R205, R594
4	311-0.0AR 0R_0805 Yageo	SMD0805	R93, R98, R532, R533
1	667-ERJ-U02F4022X 40K_0402_ERJ-U02F4022X Panasonic	SMD0402	R102
1	311-33.2LR 33R2_0402 Yageo	SMD0402	R112
3	311-49.9LR 49R9_0402 Yageo	SMD0402	R113, R124, R172
1	311-4.99KLR 4K99_0402_NF Yageo	SMD0402	R114
2	71-CRCW04023K92FKEDC 3.92K_0402_CRCW04023K92FKEDC Vishay Dale	SMD0402	R117, R125
4	311-39.0LR 39R_0402 Yageo	SMD0402	R119, R121, R122, R554
1	311-49.9LR NF_49R9_0402 Yageo	SMD0402	R123
2	71-CRCW04028R20FKED 8.2_0402_CRCW04028R20FKED Vishay	SMD0402	R145, R150
13	603-RC0402JR-070RL 0R_0402_RC0402JR-070RL Yageo	SMD0402	R146, R151, R317, R363, R364, R366, R373, R374 +5
2	71-CRCW040251R0FKEDC 51_0402_CRCW040251R0FKEDC Vishay	SMD0402	R147, R152
1	667-ERJ-6ENF9763V 976K_0805_ERJ-6ENF9763V Panasonic	SMD0805	R154
1	667-ERJ-6ENF6193V NF_619K_0805_ERJ-6ENF6193V Panasonic	SMD0805	R156
3	P100KC 100k_0805 Panasonic Electronic Components	SMD0805	R157, R158, R162
1	603-RC0805FR-130RL NF_0R_0805_RC0805FR-130RL Yageo	SMD0805	R159
20	0R_0402	SMD0201	R174, R175, R176, R179, R180, R181, R182, R187 +12
2	71-RCS04020000Z0ED NF_0R_0402_RCS04020000Z0ED Vishay / Dale	SMD0201	R177, R178
3	311-0.0JR 0R_0201_NF Yageo	SMD0201	R189, R306, R307
2	RCS06030000Z0EA NF_0R_0603_RCS06030000Z0EA Vishay_Dale	SMD0603	R197, R200
2	RMCF0402FT10K0 NF_10K_0402 Stackpole Electronics Inc	SMD0402	R209, R253
18	311-330JR 330R_0402 Yageo	SMD0402	R212, R213, R214, R244, R245, R247, R248, R249 +10
1	603-RC0402FR-075K1L 0RNF_0402 Yageo	SMD0402	R217
1	311-10JR 0R_0402 Yageo	SMD0402	R218
1	311-0.0JR 10K_0402_Yageo Yageo	SMD0402	R223
1	311-0.0JR NF_10K_0402 Yageo	SMD0402	R224
1	311-0.0JR 0RNF_0402 Yageo	SMD0402	R225
1	311-33.2LR 0R_0402 Yageo	SMD0402	R226
1	311-51JR 0RNF_0402 Yageo	SMD0402	R227
2	311-47.0LR 0R_0402 Yageo	SMD0402	R229, R231
1	311-47.0LR 0R_0402_NF Yageo	SMD0402	R230
1	311-51JR 0R_0402_NF Yageo	SMD0402	R232
2	279-CRGCQ0603J330R 330R_0603_CRGCQ0603J330R TE Connectivity / Holsworthy	SMD0603	R275, R277
2	71-CRCW08056R81FNEA 6.81R_0805_CRCW08056R81FNEA Vishay / Dale	SMD0805	R276, R278
4	311-0.0JR 10K_0402 Yageo	SMD0402	R288, R290, R293, R294
1	71-RCS04020000Z0ED 0R_0201_NF Vishay / Dale	SMD0201	R300
1	71-RCS04020000Z0ED NF_0R_0603_RCS06030000Z0EA Vishay / Dale	SMD0603	R301
3	279-CRGP0402F1K0 1K_0402_CRGP0402F1K0 TE Connectivity / Holsworthy	SMD0402	R310, R311, R313
1	603-RC0402FR-071ML 1M_0402_RC0402FR-071ML Yageo	SMD0402	R314
4	603-RC0402JR-7D10KL 10K_0402_Yageo Yageo	SMD0402	R315, R316, R388, R493
36	NF_10K_0402	SMD0402	R349, R350, R351, R352, R353, R354, R355, R356 +28
4	71-RCS04020000Z0ED NF_0R_0402_RCS04020000Z0ED Vishay / Dale	SMD0402	R382, R429, R445, R452
2	P12.4KL 12.4K_0402_ERJ-2RKF1242X Panasonic	SMD0402	R387, R457
4	P120AD NF_120R_0805_Panasonic Panasonic Electronic Components	SMD0805	R390, R392, R458, R472
2	71-CRCW0603249RFKEAH NF_249R_0603_CRCW0603249RFKEAHP Vishay Dale	SMD0603	R393, R491
2	603-RC0603FR-0760R4L NF_60R4_0603_Yageo Yageo	SMD0603	R395, R492
2	603-RC0603FR-0752R3L NF_52R3_0603_Yageo Yageo	SMD0603	R396, R496
2	603-RT0402BRE0711K4L NF_11.4K_0402_RT0402BRE0711K4L Yageo	SMD0402	R398, R499
4	603-RC0402JR-07510RL 510R_0402_RC0402JR-07510RL Yageo	SMD0402	R400, R401, R495, R498

LimeRFE-8001P design files

The KiCad project lives in the myriadrf/LimeRFE-8001P repository on GitHub; these links point at the commit this page was built from.

LimeRFE-8001P: common questions

What microcontroller does the LimeRFE-8001P use?

The LimeRFE-8001P is built around the 358-RP2040CHIP-7-500, from the RP2040/RP2350 family.

How big is the LimeRFE-8001P PCB?

The LimeRFE-8001P measures 157.1 × 163.3 mm and is 1.6 mm thick.

How many components are on the LimeRFE-8001P?

1461 components, from 280 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the LimeRFE-8001P design files?

From the myriadrf/LimeRFE-8001P repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the LimeRFE-8001P design in my own project?

The repository has no license, so all rights stay with myriadrf. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the LimeRFE-8001P without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
