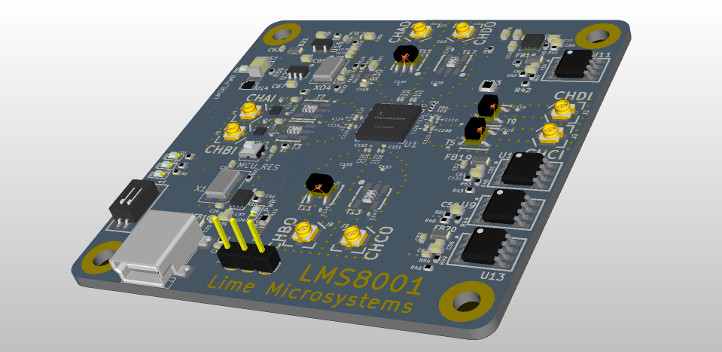

About the LMS8001 App PCB
LMS8001 App is an open source STM32 PCB design by myriadrf, published on GitHub. It is a board measuring 60 × 60 mm, with 282 components from 114 distinct parts.
Its main chip is the SI5351C-B-GM, from the STM32 family. Other key parts include the SN74LVC1G04DBVR, CDCV304PW, SC4524CSETRT, SN74LVC162244ADGGR and ADF4002BCPZ. By type, the board carries 138 capacitors, 53 resistors, 41 inductors, 16 transformers, 15 ICs and 10 connectors.
From the project
The Myriad-RF Reference Hardware design files and firmware
Frequency range: 100kHz – 12GHz RF bandwidth: 120 MHz TRX configuration: MIMO Duplex: Full and half * Power consumption: 1.5W

Main components on the LMS8001 App
LMS8001 App bill of materials (BOM)
282 components, 114 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN74LVC1G04DBVR LMS8001 Texas Instruments | LMS8001 | U1 |
| 1 | CDCV304PW USBULC6-2P6 Texas Instruments | SOT-666 | U2 |
| 1 | SI5351C-B-GM STM32F105RBT6 Silicon Laboratories Inc | LQFP64 | U3 |
| 1 | SN74LVC1G04DBVR LP5900SD-3.3 Texas Instruments | LLP-6 | U4 |
| 1 | SN74LVC1G04DBVR SKY65404-31 Texas Instruments | SKY65404-31_QFN6 | U5 |
| 1 | SC4524CSETRT SKY65404-31 Semtech | SKY65404-31_QFN6 | U6 |
| 2 | SN74LVC162244ADGGR MIC37122Y_ADJ_SOIC8 Texas Instruments | SOIC8 | U9, U13 |
| 1 | SN74LVC162244ADGGR ADM7155 Texas Instruments | LFCSP-8 | U10 |
| 1 | ADF4002BCPZ MIC37122Y_ADJ_SOIC8 Analog Devices Inc | SOIC8 | U11 |
| 1 | SN74LVC1G04DBVR MIC37122Y_ADJ_SOIC8 Texas Instruments | SOIC8 | U12 |
| 1 | SN74LVC162244ADGGR NCP349 Texas Instruments | 6-DFN | U14 |
| 1 | LP5900SD-3.3/NOPB NCP702_3V3 Texas Instruments | NCP702_TSOP5 | U16 |
| 1 | NB3H83905C | TSSOP16_NB3H83905C | U21 |
| 1 | NCP702_1V8 | NCP702_TSOP5 | U23 |
| 1 | XT49M-8M 8MHZ_4PIN VISHAY DALE | ABM3B | X1 |
| 1 | H11236 MINI-USB-UX60A-MB-5ST Hirose Electric Co Ltd | SMD_UX60A-MB-5ST | J1 |
| 1 | H11236 PIN_HEADER_1X3 Hirose Electric Co Ltd | pin_header_1x3 | J2 |
| 1 | ASP-122952-01 UMC_SMD Samtec | UMC_SMD | J3 |
| 1 | ASP-134604-01 UMC_SMD FMC | UMC_SMD | J4 |
| 1 | M20-9990246 UMC_SMD HARWIN | UMC_SMD | J5 |
Show 94 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | UX60A-MB-5ST UMC_SMD HIROSE | UMC_SMD | J6 |
| 1 | 95278-101-50LF UMC_SMD FCI | UMC_SMD | J7 |
| 1 | 5-1814832-1 UMC_SMD TE Connectivity | UMC_SMD | J8 |
| 2 | UMC_SMD | UMC_SMD | J9, J10 |
| 1 | GDH02S04 MCU_RESET TE Connectivity | B3U-1000P | SW1 |
| 1 | GDH02S04 SW TE Connectivity | Switch 2way | SW2 |
| 8 | TR_5400BL15B050 | 5400BL15B050_nosilk | T2, T4, T6, T8, T10, T12, T14, T16 |
| 8 | TR_TC1-1-13M+ | TC1-1-13M+ | T3, T5, T7, T9, T11, T13, T15, T17 |
| 1 | RTX5032A_40.000_MHZ | SMD_RTX5032A | XO4 |
| 5 | LED | LED_0603 | LD1, LD2, LD3, LD4, LD5 |
| 1 | MMZ1005S601C FB_0201 TDK Corporation | SMD0201 | FB1 |
| 1 | MMZ2012Y600B FB_0201 TDK Corporation | SMD0201 | FB2 |
| 17 | FB_0201 | SMD0201 | FB3, FB4, FB5, FB6, FB7, FB8, FB9, FB10 +9 |
| 1 | FB_600R_2A_0805 | SMD0805 | FB16 |
| 5 | FB_60R_0805 | SMD0805 | FB17, FB18, FB19, FB20, FB21 |
| 2 | BLM18EG601SN1D | SMD0603 | FB29, FB30 |
| 1 | XAL6060-223MEB L Coilcraft | SMD0201 | L1 |
| 5 | L | SMD0201 | L2, L3, L4, L13, L14 |
| 8 | 8.2NH_0402 | IND_0402 | L5, L6, L7, L8, L9, L10, L11, L12 |
| 6 | C1608Y5V1H104Z 1UF_0201_TDK_X5R TDK Corporation | SMD0201 | C1, C2, C3, C5, C6, C7 |
| 2 | C1608Y5V1H104Z 1NF_0201 TDK Corporation | SMD0201 | C4, C8 |
| 1 | C1608X5R1H334K080AB 1UF_0201_TDK_X5R TDK Corporation | SMD0201 | C9 |
| 1 | C1608X5R0J106M080AB 1NF_0201 TDK Corporation | SMD0201 | C10 |
| 1 | CGJ2B2X7R1C223K050BA 1UF_0201_TDK_X5R TDK Corporation | SMD0201 | C11 |
| 3 | C1005C0G1H220J050BA 1UF_0201_TDK_X5R TDK Corporation | SMD0201 | C12, C26, C27 |
| 1 | C2012X5R0J226M125AC 1UF_0201_TDK_X5R TDK Corporation | SMD0201 | C13 |
| 1 | C1005X7R1H222K050BA 1NF_0201 TDK Corporation | SMD0201 | C14 |
| 2 | C2012X7R1C105K125AA 1UF_0201_TDK_X5R TDK Corporation | SMD0201 | C15, C16 |
| 1 | C1608X5R0J106M080AB 1UF_0201_TDK_X5R TDK Corporation | SMD0201 | C17 |
| 1 | CC0402ZRY5V5BB105 1UF_0201_TDK_X5R Yageo | SMD0201 | C18 |
| 2 | CC0402KRX7R7BB103 1NF_0201 Yageo | SMD0201 | C19, C20 |
| 3 | CC0402KRX7R7BB103 1UF_0201_TDK_X5R Yageo | SMD0201 | C21, C22, C23 |
| 1 | C1005C0G1H221J050BA 1UF_0201_TDK_X5R TDK Corporation | SMD0201 | C24 |
| 1 | C1005C0G1H220J050BA 1NF_0201 TDK Corporation | SMD0201 | C25 |
| 2 | CC0402ZRY5V5BB105 100NF_0402 Yageo | SMD0402 | C28, C31 |
| 1 | CC0402KRX7R7BB103 22PF_0402 Yageo | SMD0402 | C29 |
| 1 | C0402C104K8PACTU 22PF_0402 KEMET | SMD0402 | C30 |
| 1 | C0402C104K8PACTU 3.9NF_0402 KEMET | SMD0402 | C32 |
| 2 | C1005C0G1H220J050BA 100NF_0402 TDK Corporation | SMD0402 | C33, C34 |
| 1 | C0402C104K8PACTU 10UF_0603 KEMET | SMD0603 | C35 |
| 4 | C0402C104K8PACTU 100NF_0402 KEMET | SMD0402 | C36, C38, C39, C40 |
| 1 | C1608X5R0J106M080AB 1UF_0402 TDK Corporation | SMD0402 | C37 |
| 1 | CC0402MRX5R5BB225 100NF_0402 Yageo | SMD0402 | C41 |
| 9 | 10UF_0603 | SMD0603 | C42, C65, C66, C67, C77, C81, C86, C160 +1 |
| 11 | 100NF_0402 | SMD0402 | C43, C44, C100, C159, C162, C164, C169, C171 +3 |
| 7 | 1UF_0402 | SMD0402 | C51, C52, C53, C54, C55, C56, C63 |
| 1 | 10UF_1206 | SMD1206 | C57 |
| 4 | 2.2UF_0603 | SMD0603 | C58, C60, C61, C62 |
| 2 | 1UF_0603 | SMD0603 | C59, C82 |
| 3 | 1NF_0402 | SMD0402 | C68, C166, C174 |
| 1 | 18NF_0402 | SMD0402 | C99 |
| 16 | 10PF_0201 | SMD0201 | C103, C104, C105, C106, C135, C136, C137, C138 +8 |
| 32 | C | SMD0201 | C107, C108, C109, C110, C111, C112, C113, C114 +24 |
| 4 | 1UF_0201_TDK_X5R | SMD0201 | C131, C132, C133, C134 |
| 4 | 1NF_0201 | SMD0201 | C141, C142, C145, C146 |
| 3 | 10NF_0402 | SMD0402 | C168, C175, C177 |
| 1 | RC0603JR-072K2L 0R_0201 Yageo | SMD0201 | R1 |
| 2 | RC0603JR-070RL 10K_0402 Yageo | SMD0402 | R2, R10 |
| 2 | RC0402JR-07330RL 10K_0402 Yageo | SMD0402 | R3, R38 |
| 1 | RC0402FR-0722RL 22R_0402 Yageo | SMD0402 | R4 |
| 1 | RC0603JR-070RL 22R_0402 Yageo | SMD0402 | R5 |
| 1 | RC0402FR-0722RL 470R_0402 Yageo | SMD0402 | R6 |
| 1 | RC0402JR-0710KL 470R_0402 Yageo | SMD0402 | R7 |
| 1 | RC0603JR-070RL 470R_0402 Yageo | SMD0402 | R8 |
| 1 | RC0603JR-070RL 330R_0402 Yageo | SMD0402 | R9 |
| 1 | RC0603JR-070RL 0R_0402_NF Yageo | SMD0603 | R11 |
| 1 | RC0603JR-072K2L 0R_0402 Yageo | SMD0603 | R12 |
| 1 | RC0603JR-072K2L 1M_0402 Yageo | SMD0402 | R13 |
| 1 | RC0402JR-070RL 10K_0402 Yageo | SMD0402 | R14 |
| 1 | RC0402FR-0722K1L 10K_0402 Yageo | SMD0402 | R15 |
| 1 | RC0402FR-0728KL 470R_0402 Yageo | SMD0402 | R16 |
| 1 | ERA-2AEB1582X 0R_0201 Panasonic Electronic Components | SMD0201 | R17 |
| 1 | RC0402FR-075K49L 0R_0201 Yageo | SMD0201 | R18 |
| 1 | RC0402JR-0710KL 1K_0402 Yageo | SMD0402 | R40 |
| 1 | RC0805JR-070RL 10K_0402 Yageo | SMD0402 | R41 |
| 3 | YC124-JR-0722RL 1K_0402 Yageo | SMD0402 | R42, R43, R46 |
| 1 | YC124-JR-0722RL 249R_0402 Yageo | SMD0402 | R44 |
| 1 | RC0402FR-0722RL 4K99_0402 Yageo | SMD0402 | R45 |
| 1 | YC124-JR-0722RL 330R_0402 Yageo | SMD0402 | R47 |
| 1 | YC124-JR-0722RL 806R_0402 Yageo | SMD0402 | R48 |
| 1 | RC0402FR-0722RL 2K32_0402 Yageo | SMD0402 | R49 |
| 1 | RC0603FR-07100KL 0R_0402 Yageo | SMD0402 | R50 |
| 1 | RC0402FR-0733KL 0R_0402 Yageo | SMD0402 | R51 |
| 5 | RC0402JR-070RL 0R_0402 Yageo | SMD0402 | R52, R53, R54, R68, R75 |
| 1 | RC0402JR-070RL 680R_0402 Yageo | SMD0402 | R55 |
| 1 | 0R_0805 | SMD0805 | R93 |
| 4 | 0R_0201_NF | SMD0201 | R94, R95, R96, R97 |
| 1 | 2K2_0402 | SMD0402 | R99 |
| 3 | 0R_0402 | SMD0402 | R109, R115, R116 |
| 1 | 33R2_0402 | SMD0402 | R112 |
| 2 | 49R9_0402 | SMD0402 | R113, R124 |
| 1 | 4K99_0402_NF | SMD0402 | R114 |
| 2 | 0R_0402_NF | SMD0402 | R117, R118 |
| 1 | 39R_0402 | SMD0402 | R122 |
LMS8001 App design files
The KiCad project lives in the myriadrf/reference-development-kit repository on GitHub; these links point at the commit this page was built from.
LMS8001 App: common questions
What microcontroller does the LMS8001 App use?
The LMS8001 App is built around the SI5351C-B-GM, from the STM32 family.
How big is the LMS8001 App PCB?
The LMS8001 App measures 60 × 60 mm and is 1.6 mm thick.
How many components are on the LMS8001 App?
282 components, from 114 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LMS8001 App design files?
From the myriadrf/reference-development-kit repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the LMS8001 App design in my own project?
The repository has no license, so all rights stay with myriadrf. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the LMS8001 App without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
