NokirasHackpad
About the NokirasHackpad PCB
NokirasHackpad is an open source PCB design by n0kira, published on GitHub. It is a 2-layer board measuring 95 × 75.4 mm, with 21 components from 6 distinct parts.
Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 12 diodes, 7 switches, 1 IC and 1 connector.
It belongs with the displays & leds and keyboards designs in this gallery.
From the project

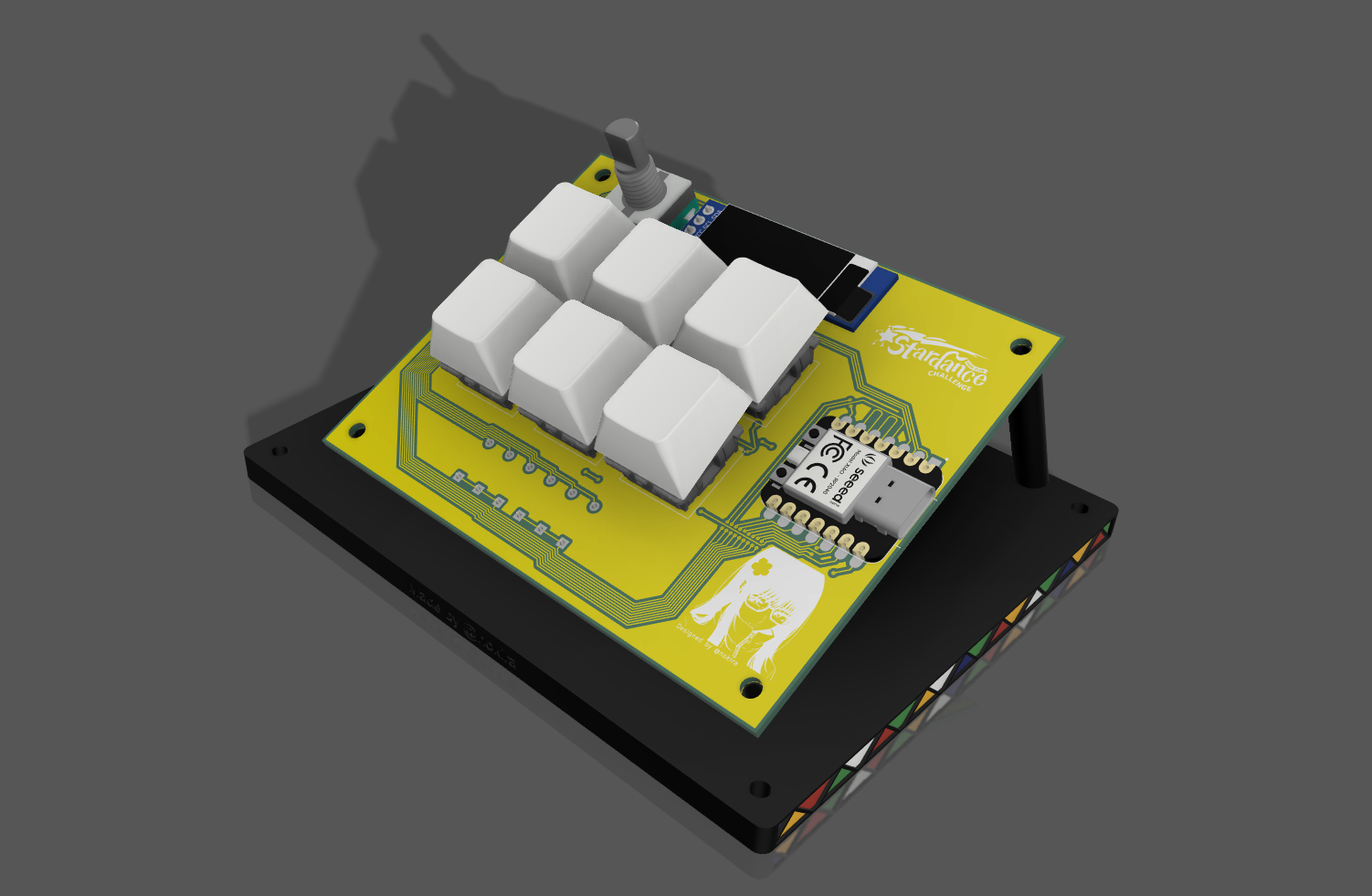

Simple macropad with 6 keys, 1 rotary encoder and an OLED Display.
This is an open-case hackpad. You could say it was because I don't know how to build a case... maybe. But I like how everything turned out.
QMK was used for everything. The features of this hackpad are: - Rotary encoder to change volume - OLED disaply to show last action - 6 Keys for macros
- PREV > Previous Media - PLAY > Play or Stop current Media - NEXT > Next Media - F13 > Free Macro Mey - F14 > Free Macro Key - LOCK > Lock Screen
Main components on the NokirasHackpad
NokirasHackpad bill of materials (BOM)
21 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MOUDLE-SEEEDUINO-XIAO | XIAO-Generic-Hybrid-14P-2.54-21X17.8MM | U1 |
| 1 | OLED_128X32 OLED_128x32 | OLED_128x32 | J1 |
| 6 | ~ | SW_Cherry_MX_1.00u_PCB | S1, S2, S3, S4, S5, S6 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW1 |
| 6 | ~ | Diode_DO-35 | D1, D2, D3, D4, D5, D6 |
| 6 | SK6812MINI-E | LED_SK6812MINI-E_3.2x2.8mm_P1.5mm_ReverseMount | D7, D8, D9, D10, D11, D12 |
NokirasHackpad design files
The KiCad project lives in the n0kira/NokirasHackpad repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/MyHackpad.kicad_pcb
- SchematicPCB/MyHackpad.kicad_sch
- BOMPCB/production/bom.csv
NokirasHackpad: common questions
How big is the NokirasHackpad PCB?
The NokirasHackpad measures 95 × 75.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the NokirasHackpad?
21 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the NokirasHackpad design files?
From the n0kira/NokirasHackpad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the NokirasHackpad design in my own project?
The repository has no license, so all rights stay with n0kira. Use it as a reference, and ask the author before reusing the design.
