IoT AIO FyPy

N5GEH·n5geh.devices.iot_wa_aio·FiPy/IoT_AIO_FyPy.kicad_pcb

IoT AIO FyPy PCB layout, top view — open source board by N5GEH

About the IoT AIO FyPy PCB

IoT AIO FyPy is an open source PCB design by N5GEH, published on GitHub under the MIT license. It is a 4-layer board measuring 20 × 55 mm, with 57 components from 40 distinct parts.

Other key parts include the FiPy, TLV07IDR, XTR111AIDGQR, TLV333IDCKR and LM4040DCK-2.0. By type, the board carries 25 resistors, 14 capacitors, 9 ICs, 4 switches, 3 transistors and 1 connector.

It belongs with the iot & wireless designs in this gallery.

From the project

IoT-AIO is a wireless adapter for developing IoT applications for Industrial and Building Automation Systems based on the Espressif chipset ESP32. The adapter is compatible with: - current loop signals (0/4-20 mA) - voltage signals (0/2-10 V) - passive sensors (RTD, Strain Gauge,

IoT-AIO is a wireless adapter for developing IoT applications for Industrial and Building Automation Systems based on the Espressif chipset ESP32. The adapter is compatible with: - current loop signals (0/4-20 mA) - voltage signals (0/2-10 V) - passive sensors (RTD, Strain Gauge,..)

The library allows the implemention of IoT applications that rely on MQTT protocol via WiFi/NB-IoT/LTE Cat-M1 interfaces.

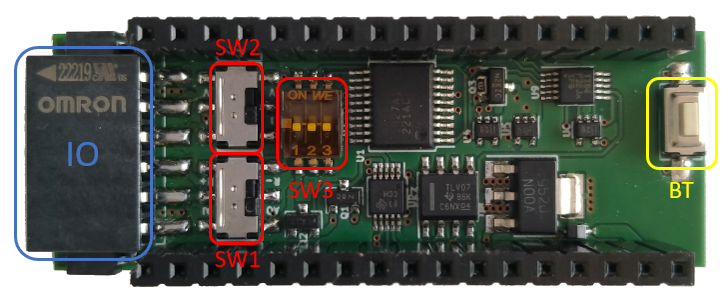

IoT AIO FyPy, from the project README
From the project README

Main components on the IoT AIO FyPy

FiPyTLV07IDRXTR111AIDGQRTLV333IDCKRLM4040DCK-2.0MAX31865LM340MP-5.0/NOPBTMUX1204

IoT AIO FyPy bill of materials (BOM)

57 components, 40 distinct parts.

QtyPartRefs
1
FiPy
U1
1
TLV07IDR
U2
1
XTR111AIDGQR
U3
2
TLV333IDCKR
U4, U6
1
LM4040DCK-2.0
U5
1
MAX31865
U7
1
LM340MP-5.0/NOPB
U8
1
TMUX1204
U9
1
MMBT5087LT3G
Q1
1
ISS55EP06LMXTSA1
Q2
1
SI2302
Q3
1
Conn_01x06
J1
1
SW_3PST
SW1
1
SW_SPDT_x2
SW2
1
SW_Push
SW3
1
SW_DPDT_x2
SW4
1
D_Schottky
D1
3
1u
C1, C3, C6
8
100n
C2, C4, C5, C8, C9, C10, C12, C13
1
10n
C7
Show 20 more
QtyPartRefs
1
220n
C11
1
100n
C14
4
10k
R1, R11, R24, R25
1
4.7k 0.1%
R2
1
10k 0.1%
R3
1
22k
R4
1
8.2k
R5
2
33k 0.1%
R6, R21
2
3.3k 0.1%
R7, R19
1
4990 0.1%
R8
2
15
R9, R10
2
3.3k
R12, R14
1
33k
R13
1
600 0.1%
R15
1
1k 0.1%
R16
1
2.2k 0.1%
R17
1
500
R18
1
45.3 0.1%
R20
1
4.7k
R23
1
400 0.1%
R29

IoT AIO FyPy design files

The KiCad project lives in the N5GEH/n5geh.devices.iot_wa_aio repository on GitHub; these links point at the commit this page was built from.

IoT AIO FyPy: common questions

How big is the IoT AIO FyPy PCB?

The IoT AIO FyPy measures 20 × 55 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the IoT AIO FyPy?

57 components, from 40 distinct parts. The full bill of materials is listed on this page.

Where can I download the IoT AIO FyPy design files?

From the N5GEH/n5geh.devices.iot_wa_aio repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the IoT AIO FyPy design in my own project?

Yes, under the terms of its MIT license, which N5GEH chose for the repository.
