OLED 2.42
About the OLED 2.42 PCB
OLED 2.42 is an open source PCB design by ncleesattel, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 74.5 × 45 mm, with 24 components from 17 distinct parts.
Other key parts include the LMR62421XMF. By type, the board carries 7 capacitors, 7 resistors, 4 test points, 2 connectors, 1 IC and 1 switch.
It belongs with the displays & leds designs in this gallery.
From the project

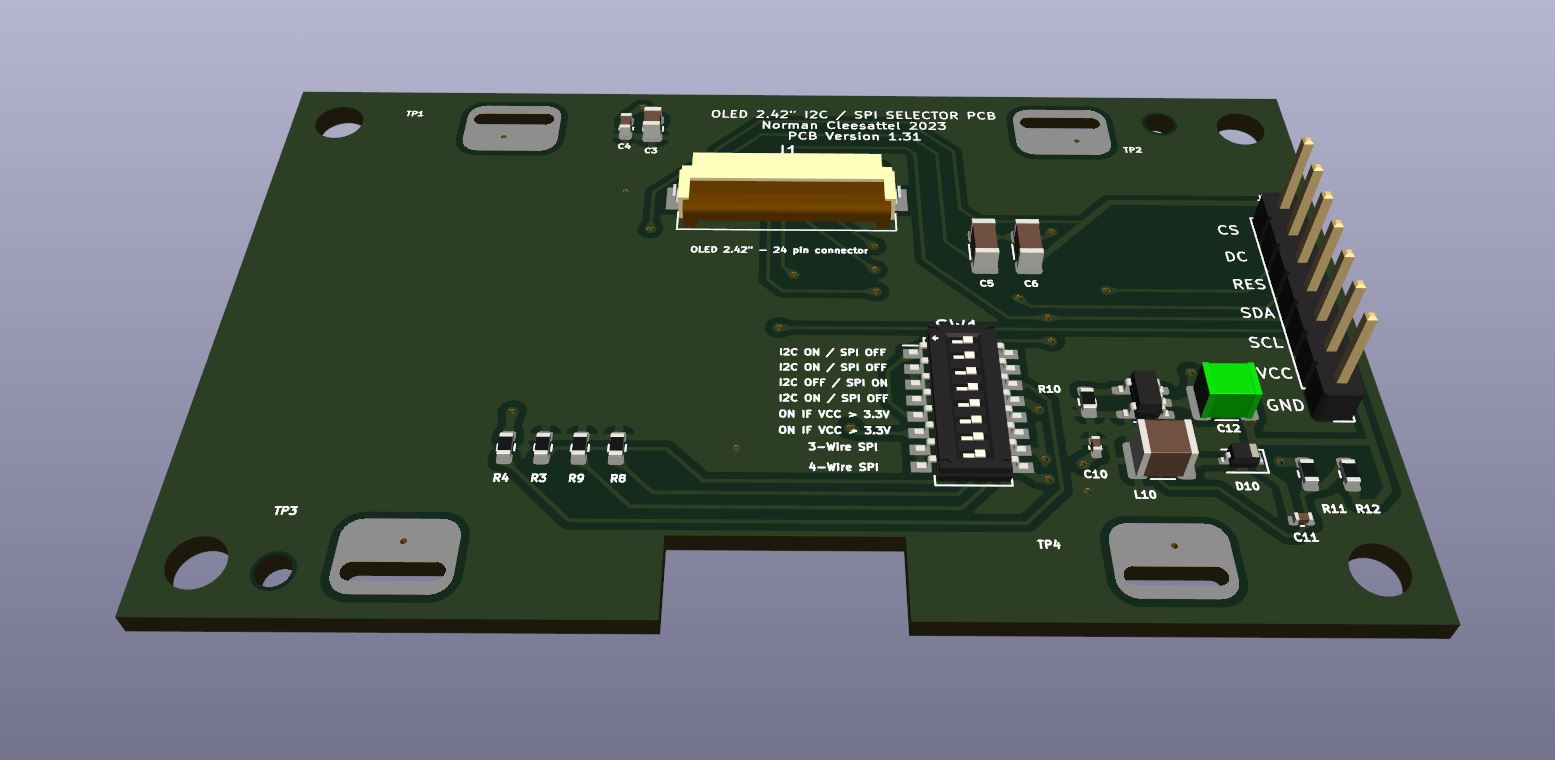

PCB designed with KiCad for OLED 2.42" display.
I use this pcb to connect 2.42 inch displays from Aliexpress to either my SHC build or the ESP32 dew heater. Look for 2.42" 128x64 SSD1309 displays and the assoc. metal frame.
Best case you can use all displays equals to 25/unit. Worst case you just need one and can't share the cost of the other four equals to 125.
Main components on the OLED 2.42
OLED 2.42 bill of materials (BOM)
24 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LMR62421XMF | SOT-23-5 | U10 |
| 1 | CONN_01X24 Conn_01x24 | Hirose_FH12-24S-0.5SH_1x24-1MP_P0.50mm_Horizontal | J1 |
| 1 | CONN_01X07 Conn_01x07 | PinHeader_1x07_P2.54mm_Vertical | J3 |
| 1 | SW_DIP_X08 SW_DIP_x08 | SW_DIP_SPSTx08_Slide_Omron_A6H-8101_W6.15mm_P1.27mm | SW1 |
| 3 | TestPoint | OLED_slot | TP1, TP2, TP3 |
| 1 | OLED_slot | OLED_slot | TP4 |
| 1 | C191023 D_Schottky | D_SOD-323 | D10 |
| 1 | 22UH 22uH | C_1210_3225Metric | L10 |
| 1 | 4.7UF 4.7uF | C_0805_2012Metric | C3 |
| 1 | 0.1UF 0.1uF | C_0603_1608Metric | C4 |
| 2 | 22UF 22uF | C_1206_3216Metric | C5, C6 |
| 1 | 4.7UF 4.7uF | C_0402_1005Metric | C10 |
| 1 | 560PF 560pF | C_0402_1005Metric | C11 |
| 1 | 47UF 47uF | C_1210_3225Metric | C12 |
| 4 | 4.7K 4.7k | R_0603_1608Metric | R3, R4, R8, R9 |
| 2 | 10K 10k | R_0603_1608Metric | R10, R11 |
| 1 | 93.1K 93.1k | R_0603_1608Metric | R12 |
OLED 2.42 design files
The KiCad project lives in the ncleesattel/OLED_2.42 repository on GitHub; these links point at the commit this page was built from.
OLED 2.42: common questions
How big is the OLED 2.42 PCB?
The OLED 2.42 measures 74.5 × 45 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the OLED 2.42?
24 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the OLED 2.42 design files?
From the ncleesattel/OLED_2.42 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the OLED 2.42 design in my own project?
Yes, under the terms of its GPL-3.0 license, which ncleesattel chose for the repository.
