I2c uart board reference design

nebkat·i2c_uart_board_reference_design

I2c uart board reference design layout, top view — open source board by nebkat

Simulate this board

About the I2c uart board reference design

I2c uart board reference design is an open source PCB design by nebkat, published on GitHub. It is a 2-layer board measuring 44.8 × 26.8 mm, with 14 components from 12 distinct parts.

Other key parts include the SC16IS752IPW. By type, the board carries 5 connectors, 3 resistors, 2 switches, 2 capacitors, 1 IC and 1 crystal.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Breakout board for the SC16IS752.

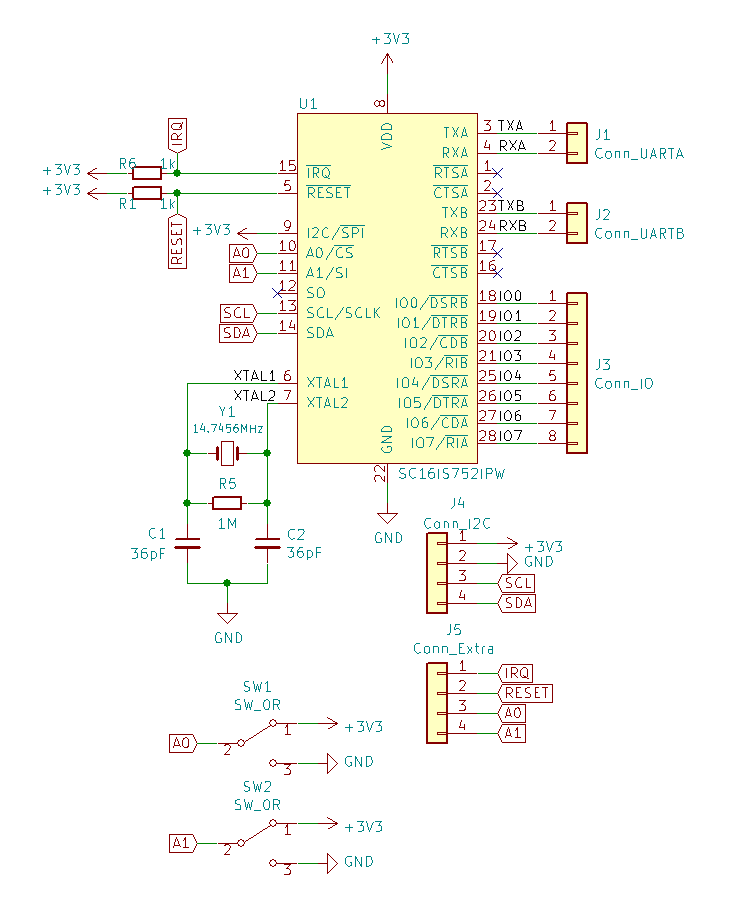

This repository contains KiCAD schematics and the PCB design for a breakout board for the SC16IS752.

I2c uart board reference design, from the project README — From the project README

Main components on the I2c uart board reference design

I2c uart board reference design bill of materials (BOM)

14 components, 12 distinct parts.

Qty	Part	Footprint	Refs
1	SC16IS752IPW	TSSOP-28_4.4x9.7mm_P0.65mm	U1
1	14.7456MHz	Crystal_HC49-U_Vertical	Y1
1	Conn_UARTA	JST_XH_S02B-XH-A_1x02_P2.50mm_Horizontal	J1
1	Conn_UARTB	JST_XH_S02B-XH-A_1x02_P2.50mm_Horizontal	J2
1	Conn_IO	PinHeader_2x04_P2.54mm_Vertical	J3
1	Conn_I2C	JST_XH_S04B-XH-A_1x04_P2.50mm_Horizontal	J4
1	Conn_Extra	JST_XH_S04B-XH-A_1x04_P2.50mm_Horizontal	J5
1	SW_0R	SW_0R_x2_0603_Mirror	SW1
1	SW_0R	SW_0R_x2_0603	SW2
2	36pF	C_0805_2012Metric	C1, C2
2	1k	R_0805_2012Metric	R1, R6
1	1M	R_0805_2012Metric	R5

I2c uart board reference design design files

The KiCad project lives in the nebkat/i2c_uart_board_reference_design repository on GitHub; these links point at the commit this page was built from.

Layouti2c-uart.kicad_pcb

I2c uart board reference design: common questions

How big is the I2c uart board reference design?

The I2c uart board reference design measures 44.8 × 26.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the I2c uart board reference design?

14 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the I2c uart board reference design design files?

From the nebkat/i2c_uart_board_reference_design repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the I2c uart board reference design design in my own project?

The repository has no license, so all rights stay with nebkat. Use it as a reference, and ask the author before reusing the design.
