Dm13a breakout board

neilenns·dm13a-breakout-board

Dm13a breakout board layout, top view — open source board by neilenns

About the Dm13a breakout board

Dm13a breakout board is an open source PCB design by neilenns, published on GitHub under the MIT license. It is a 2-layer board measuring 50 × 50 mm, with 7 components from 6 distinct parts.

Other key parts include the DM13A. By type, the board carries 4 connectors, 1 IC, 1 capacitor and 1 resistor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Breakout board for the DM13A LED driver, for use with MobiFlight

Breakout board for the DM13A LED driver, for use with MobiFlight. This is completely untested and not intended for real-world use. The goal of this repo was to explore using KiCad 9 command line tools to automate releases of the design, including schematics, board images, and JLCPCB fabrication files.

- A VSCode devcontainer is included that includes the kicad-cli command for local development. - A tasks.json file is included to enable quick local testing of the jobset generation. - Outputs are defined using KiCad jobsets. - Variables are used to specify a version and date stamp. These are…

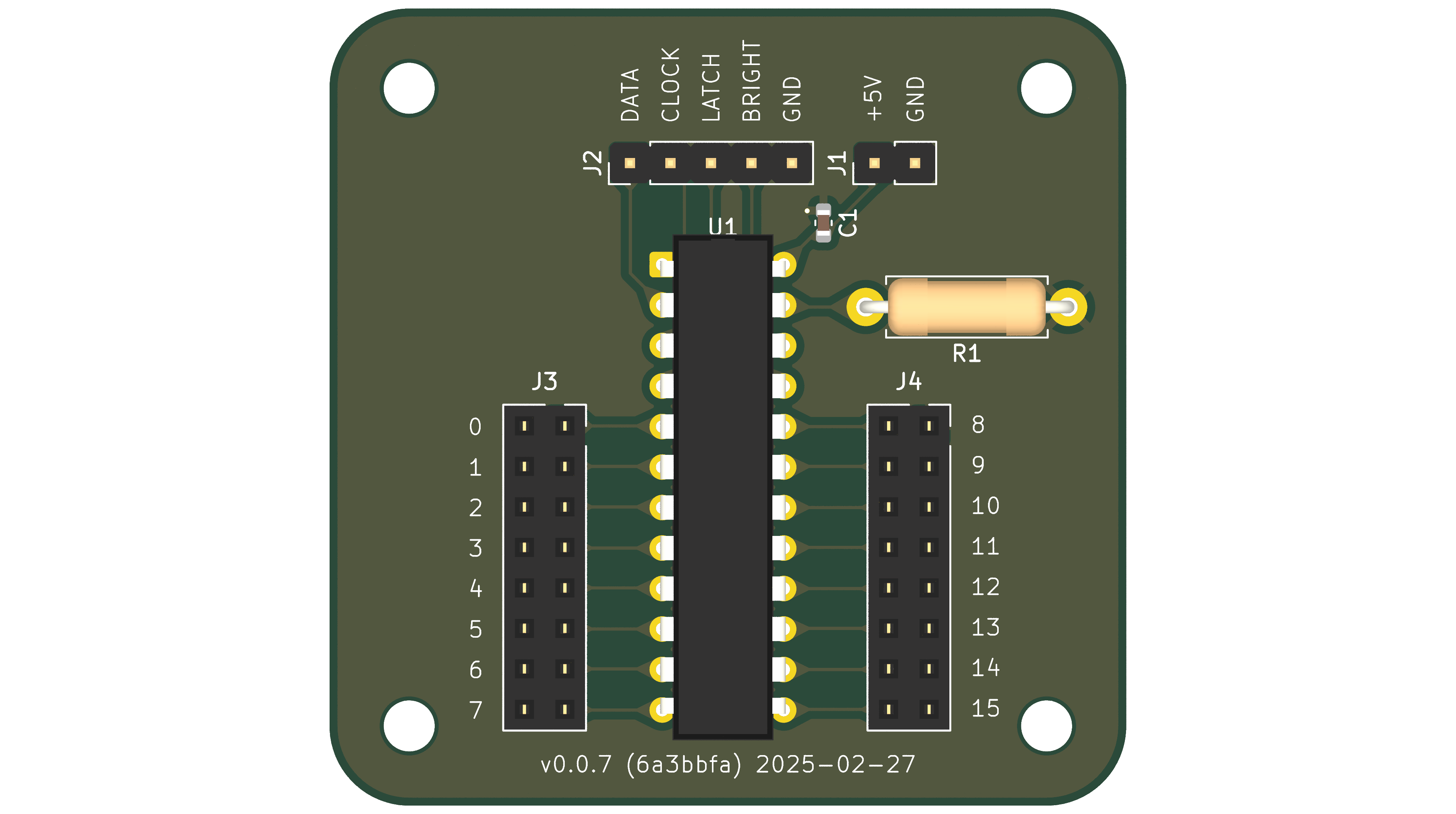

Dm13a breakout board, from the project README
From the project README

Main components on the Dm13a breakout board

DM13A

Dm13a breakout board bill of materials (BOM)

7 components, 6 distinct parts.

QtyPartRefs
1
DM13A
U1
1
Conn_01x02
J1
1
Conn_01x05
J2
2
Conn_02x08_Odd_Even
J3, J4
1
0.1uF
C1
1
5k
R1

Dm13a breakout board design files

The KiCad project lives in the neilenns/dm13a-breakout-board repository on GitHub; these links point at the commit this page was built from.

Dm13a breakout board: common questions

How big is the Dm13a breakout board?

The Dm13a breakout board measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Dm13a breakout board?

7 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Dm13a breakout board design files?

From the neilenns/dm13a-breakout-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Dm13a breakout board design in my own project?

Yes, under the terms of its MIT license, which neilenns chose for the repository.
