TBM930 De ice panel

neilenns·TBM930_De-ice_panel

TBM930 De ice panel PCB layout, top view — open source AVR/Arduino board by neilenns

About the TBM930 De ice panel PCB

TBM930 De ice panel is an open source AVR/Arduino PCB design by neilenns, published on GitHub under the MIT license. It is a 2-layer board measuring 190.5 × 101.6 mm, with 79 components from 37 distinct parts.

Its main chip is the ATmega32U4-MU, from the AVR/Arduino family. Other key parts include the TLC5917IN. By type, the board carries 27 diodes, 14 capacitors, 11 connectors, 10 resistors, 3 ICs and 2 switches.

From the project

Custom TBM930 de-ice panel PCB for Microsoft Flight Simulator 2020 and MobiFlight

This PCB implements a TBM930 de-ice panel for use with Microsoft Flight Simulator 2020 and MobiFlight.

This repo also demonstrates using KiBot for full CI/CD of KiCad projects. Every pull request gets ERC/DRC checks. Publishing a GitHub release triggers generation of a suite of PCB documentation, interactive BOM, and submission files for JLCPCB (including pick-and-place files) and PCBWay. The GitHub release version is inserted into the generated documentation and gerber files as well. A manually triggered workflow to generate documentation is also included.

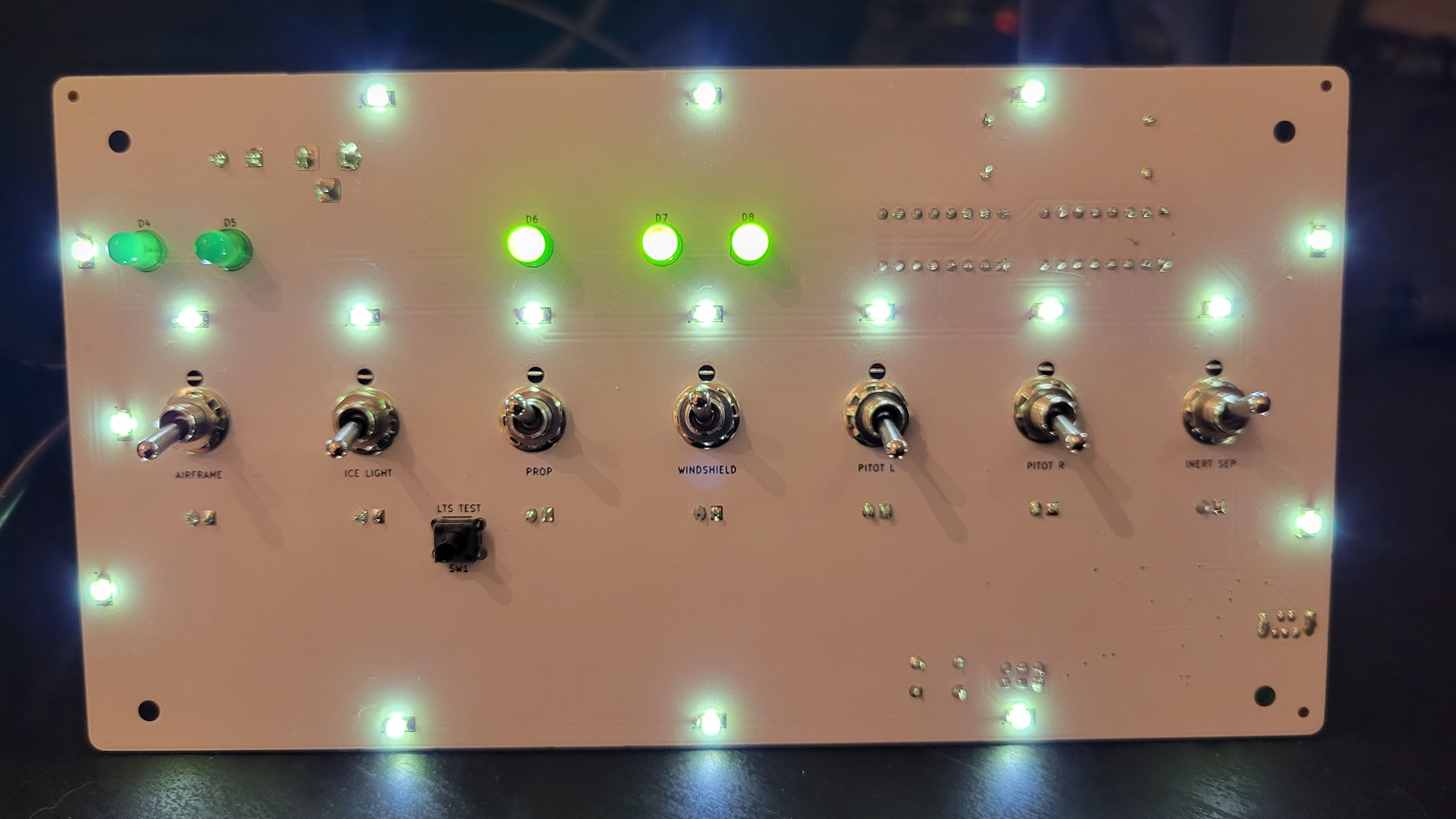

TBM930 De ice panel, from the project README
From the project README

Main components on the TBM930 De ice panel

TLC5917INATmega32U4-MU

TBM930 De ice panel bill of materials (BOM)

79 components, 37 distinct parts.

QtyPartRefs
2
TLC5917IN
U1, U2
1
ATmega32U4-MU
U3
1
Crystal_GND24
Y1
1
SW_AIRFRAME_DE_ICE
J1
1
SW_ICE_LIGHT
J2
1
SW_PROP_DE_ICE
J3
1
SW_WIND_SHIELD
J4
1
SW_PITOT_L_HTR
J5
1
SW_PITOT_R_HTR
J6
1
SW_INERT_SEP
J7
1
Barrel_Jack
J8
1
USB_B_Mini
J9
1
AVR-ISP-6
J10
1
Screw_Terminal_01x02
J11
1
SW_Push
SW1
1
SW_Push
SW2
3
MountingHole
TH1, TH2, TH3
7
MountingHole
TSW1, TSW2, TSW3, TSW4, TSW5, TSW6, TSW7
1
YELLOW
D1
2
GREEN
D2, D3
Show 17 more
QtyPartRefs
1
AIRFRAME 1
D4
1
AIRFRAME 2
D5
1
PROP
D6
1
WINDSHIELD 1
D7
1
WINDSHIELD 2
D8
18
LED
D9, D10, D11, D12, D13, D14, D15, D16 +10
1
D
D17
1
Ferrite_Bead_Small
FB1
2
10uF
C1, C10
8
100nf
C2, C3, C4, C5, C8, C9, C11, C12
2
1uF
C6, C7
2
20pf
C16, C17
3
330
R2, R5, R9
2
1k
R3, R4
1
1K
R6
2
22
R7, R8
2
10K
R10, R11

TBM930 De ice panel design files

The KiCad project lives in the neilenns/TBM930_De-ice_panel repository on GitHub; these links point at the commit this page was built from.

TBM930 De ice panel: common questions

What microcontroller does the TBM930 De ice panel use?

The TBM930 De ice panel is built around the ATmega32U4-MU, from the AVR/Arduino family.

How big is the TBM930 De ice panel PCB?

The TBM930 De ice panel measures 190.5 × 101.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TBM930 De ice panel?

79 components, from 37 distinct parts. The full bill of materials is listed on this page.

Where can I download the TBM930 De ice panel design files?

From the neilenns/TBM930_De-ice_panel repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the TBM930 De ice panel design in my own project?

Yes, under the terms of its MIT license, which neilenns chose for the repository.

Can I test firmware for the TBM930 De ice panel without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
